Monacor DIVA-SIMONE 3-way speaker assembly kit incl. cable, incl. crossover, incl. insulation material
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Monacor DIVA-SIMONE loudspeaker set
- Contains all electrical parts needed to build a speaker
Technical specifications
- Wood cutting to MDF 19 mm
- Pages 2 pieces 311 x 970 mm
- Front 1 pieces 200 x 970 mm
- Back wall 1 pieces 162 x 932 mm
- Floor/lid 2 piece 162 x 311 mm
- Divider 1 pieces 292 x 162 mm
- Divider 1 pieces 228 x 162 mm
- Divider 1 pieces 142 x 162 mm
- Reinforcement 1 pieces 60 x 292 mm
- Reinforcement 1 pieces 60 x 162 mm
- Features
incl. cable
incl. crossover
incl. insulation material
- Content
1 pc(s)
- Width
200 mm
- Height
970 mm
- Depth
311 mm
- Product type
3-way speaker assembly kit
Documents & Downloads
Datasheet
Datasheet 3220020 Monacor DIVA-SIMONE 3-way speaker assembly kit incl. cable, incl. crossover, incl. insulation material
User & Safety Instructions
User & Safety Instructions 3220020 Monacor DIVA-SIMONE 3-way speaker assembly kit incl. cable, incl. crossover, incl. insulation material
Description

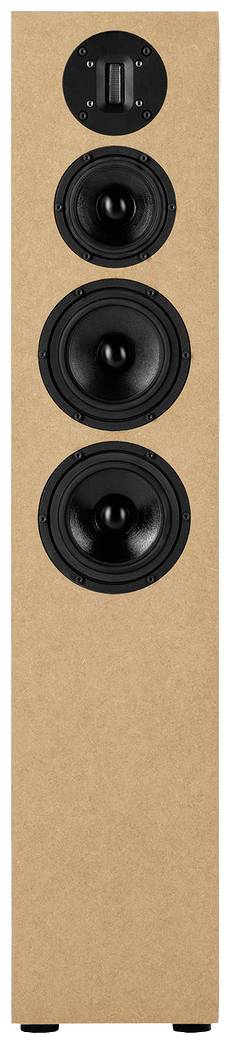

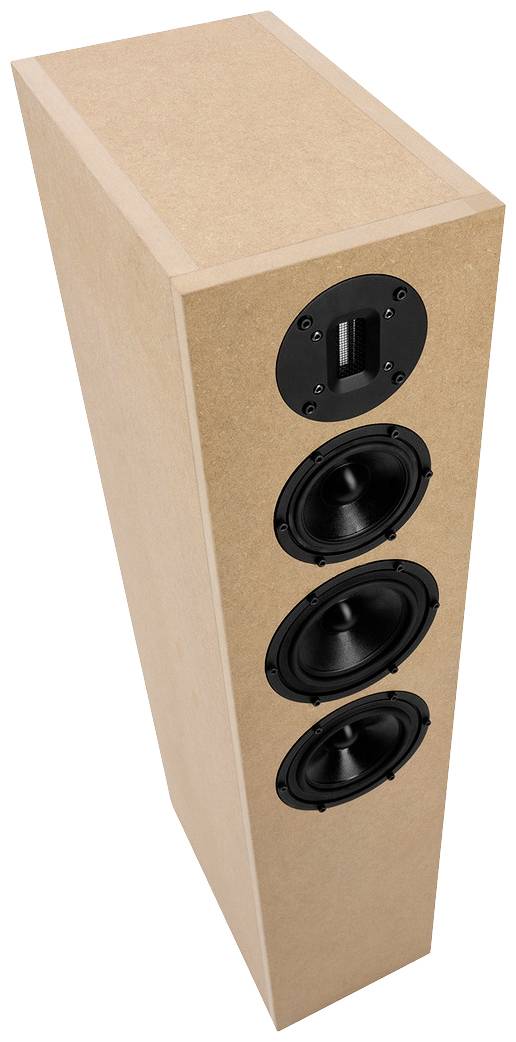

A 3-way Hi-Fi speaker is still a challenge for the developer. Jens Heerklotz, known as the nickname Sonicfurby or SonicFury in various DIY speaker forums, has taken up this task and the result can be heard and seen. In addition to the excellent sound properties of the box, a great deal of emphasis was also placed on the look and suitability for the living room. A slim standing loudspeaker with chassis of the HQ series from German production and a real belt tweeter was realized. It also sounds very fast that the MSH-115HQ is a real mid-range specialist at the work, which harmonizes perfectly with the RBT-10 bands. The two SPH-145HQ provide a wonderful bass foundation in the slim box.
The DIVA SIMONE uses dynamic music amazingly sovereign. Solid and heavy bass, clear, structured, audible medium tones and a very fine-tuned tweeter make listening to music up to a high volume enjoyable. However, the DIVA SIMONE is not a party speaker for high volumes
This text is machine translated.
The DIVA SIMONE uses dynamic music amazingly sovereign. Solid and heavy bass, clear, structured, audible medium tones and a very fine-tuned tweeter make listening to music up to a high volume enjoyable. However, the DIVA SIMONE is not a party speaker for high volumes
This text is machine translated.
Scope of delivery
- Woofer 2 pcs. SPH-145HQ
- Mid-woofer 1 pieces MSH-115HQ
- Tweeter 1 of RBT-10
- Soft:
- - L1 1 x LSIP-390
- - L2 1 x LSIF-560
- - L3 1 x LSIP-56/1
- - L4 1 x LSIP-18/1
- - L5 1 x LSIF-470/1
- - L6 1 x LSIP-18/1
- - C1 1 x 560µF electrolytic capacitor or 2 x LSC-2200NP, 1 x LSC-1000NP, 1 x LSC-220NP parallel
- - C2 1 x MKTA-470
- - C3 1 x MKTA-100
- - C4 1 x MKTA-150
- - C5 1 x 360µF electrolytic capacitor or 1 x LSC-2200NP, 1 x LSC-1500NP, 1 x LSC-220NP parallel
- - C6 1 x 5,6µF foil or MKTA-100 + MKTA-120 parallel
- - C7 1 x MKTA-150
- - R1 1 x LSR-33/20
- - R2 1 x LSR-56/10
- - R3 1 x LSR-82/10
- - R4 1 x LSR-27/10
- - R5 1 x LSR-47/10
- - R6 optional 1.5-2.7 ohms

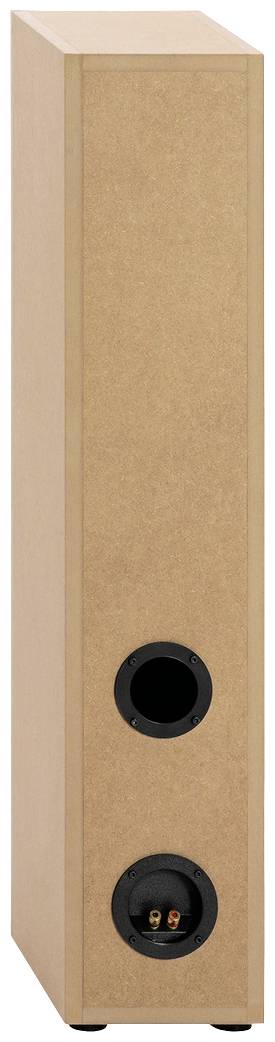

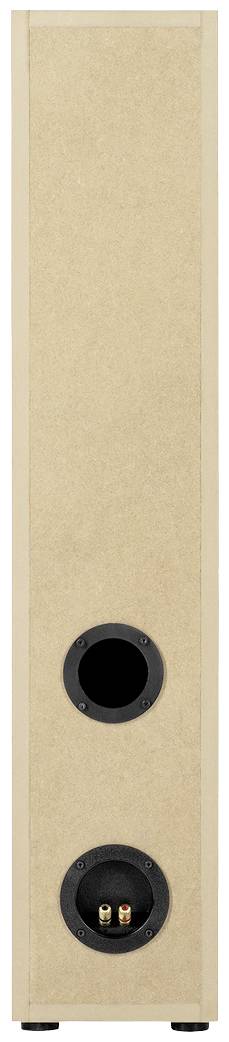

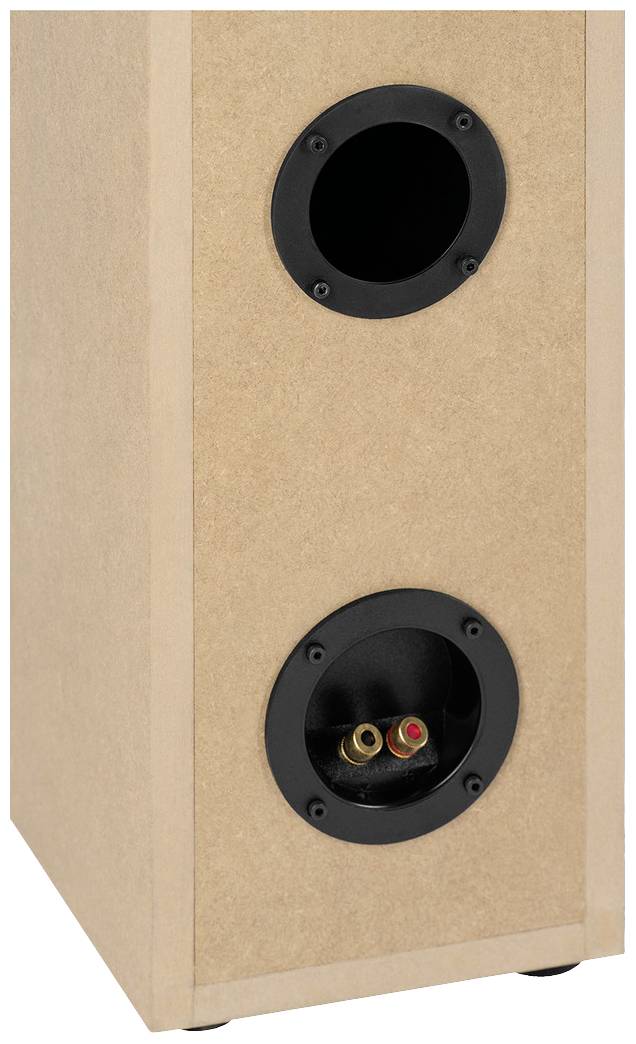

- Terminal 1 x ST-960GM
- Bass reflex vent 1 x MBR-70, length 150-200 mm
- Insulation 2 Bag MDM-4, 1 x MDM-40
- Screws 2 pouch MZF-8614
- Cable 3 m SPC-125
- Sealing band 1 x MDM-5
