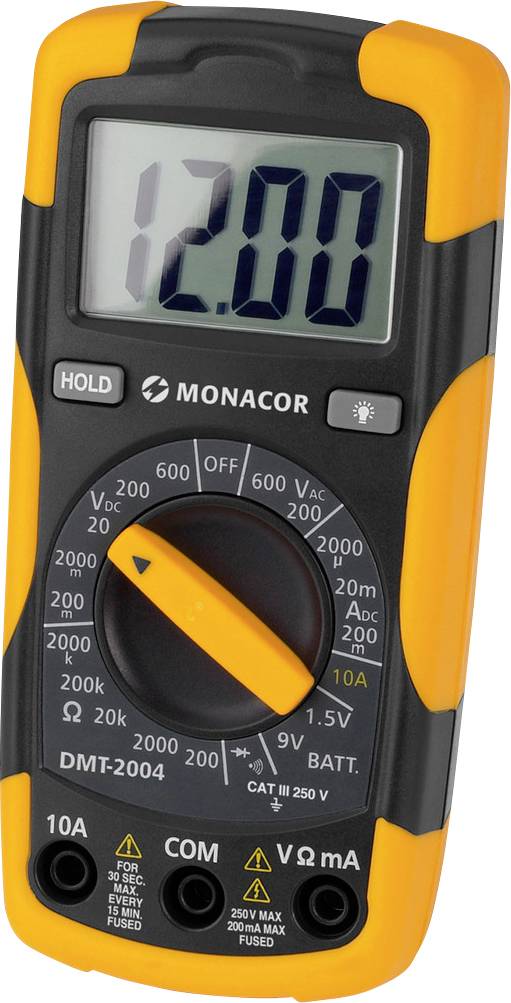

Monacor DMT-2004 Handheld multimeter Digital incl. testing cable Display (counts): 2000
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Resistance 5 Bereiche200Ω-2000 kΩ
- Net weight: 0.275 kg
- Dimensions 68 x 138 x 37 mm including RUBBER HOLSTER
- Ass. Operating temperature 0-50 °C
- Weight: 200 g
- Power supply: 9 V Block (not included)
- 21 mm LCD, 3½ digits
- Special features: Hold, diode and continuity test, battery test
- Range selection: Manual
- Voltage 5 ranges DC 200 mV - 250 V" 200 mV - 250 V.
- Current 4 ranges DC 2000 µA - 10 A.
- 9 V/ 1.5 V battery testing
- Voltage reading range DC (min.)
200 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
250 V
- V AC reading range (min.)
200 mV
- V AC reading range (max.)
250 V
- Amperage reading range DC (min.)
2000 µA
- A DC reading range (max.)
10 A
- Reading range - resistance
200Ω-2 MΩ
- Power supply (details)
9 V
- Height
37 mm
- Width
68 mm
- Length
138 mm
- Weight
200 g
Manufacturer's standards (no certificate)
- Current reading
DC
- Type
DMT-2004
- Display
Digital
- Display (counts)
2000
- Dim
(L x W x H) 138 x 68 x 37 mm
- Temperature reading range (max.)
50 °C
- Temperature reading range (min.)
0 °C
- Features
incl. testing cable
Documents & Downloads
Datasheet
Datasheet 3340508 Monacor DMT-2004 Handheld multimeter Digital incl. testing cable Display (counts): 2000
User & Safety Instructions
User & Safety Instructions 3340508 Monacor DMT-2004 Handheld multimeter Digital incl. testing cable Display (counts): 2000
Description
Digital multimeter
For universal use.
2000-digit resolution Voltage measurement up to DC/" 250 V Current measurement up to DC 10 A Resistance measurement up to 2 MΩ Battery test for 9-V-Block and 1.5-V cells Acoustic continuity test Diode test Data-hold (measurement value storage) LC-display with switchable background lighting Overload protection Delivery with test leads
This text is machine translated.
For universal use.
2000-digit resolution Voltage measurement up to DC/" 250 V Current measurement up to DC 10 A Resistance measurement up to 2 MΩ Battery test for 9-V-Block and 1.5-V cells Acoustic continuity test Diode test Data-hold (measurement value storage) LC-display with switchable background lighting Overload protection Delivery with test leads
This text is machine translated.
Features
- Display 21 mm LCD
- 3½ Digit
- Range selection: Manual
- Voltage: 5 ranges; DC 200 mV - 250 V;" 200 mV - 250 V
- Current: 4 ranges; DC 2000 µA - 10 A.
- Resistance 5 ranges;200Ω-2000 kΩ
- Battery test 9 V
- 1.5 V
- Ass. Operating temperature 0-50 °C
- Dimensions 68 x 138 x 37 mm; incl. RUBBER HOLSTER
- Weight: 200 g
- Power supply: 9 V Block (not included)
- Special features: Hold
- Diodes and Continuity test
- Battery test
