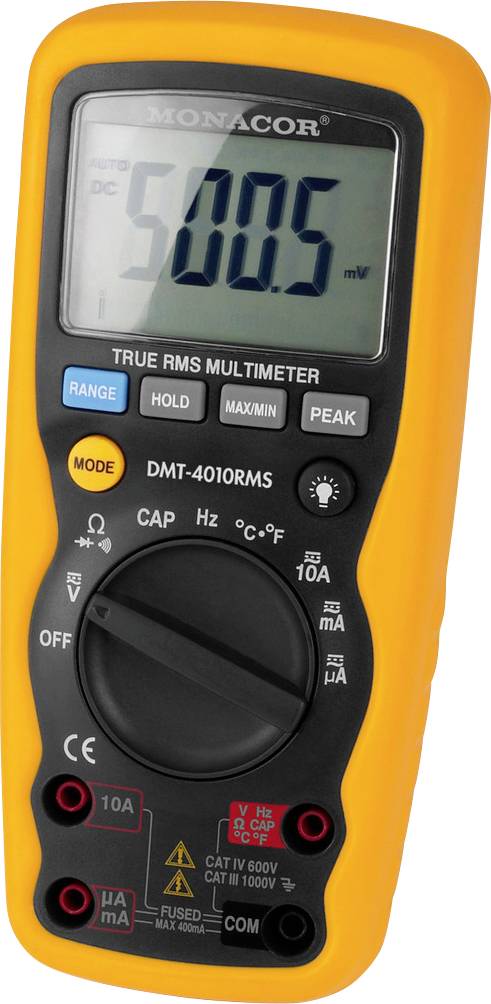

Monacor DMT-4010RMS Handheld multimeter Digital Waterproof (IP67) Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Resistance 6 Range 400 Ω-40 MΩ
- Net weight: 0.609 kg
- Dimensions 85 x 180 x 54 mm including RUBBER HOLSTER
- Ass. Operating temperature -10 °C to +50 °C
- Weight: 430 g
- Power supply: 9 V Block (not included)
- Capacitance 8 Range4 nF-40 mF
- Display: 21 mm LCD, 3¾ digits, bar display
- Frequency:4 range 4 kHz-10 MHz
- Special features: Peak, min/max, hold, IP67
- Range selection: Automatic, manual
- Voltage 5 ranges DC 400 mV-1000 V" 400 mV-1000 V.
- Current 5 ranges DC 400 µA-10 A" 400 µA-10 A.
- Temperature:1 Range-20 °C to +760 °C-4 °F to +1400 °FSensor-Type K
- Voltage reading range DC (min.)
400 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
400 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
400 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
400 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
400 Ω-40 MΩ
- Reading range - capacity
4 nF-40 mF
- Measurement type (details)
True RMS
- Frequency range
4 kHz-10 MHz
- Power supply (details)
9 V
- Height
180 mm
- Width
85 mm
- Length
54 mm
- Weight
430 g
Manufacturer's standards (no certificate)
- Current reading
DC
- Type
DMT-4010RMS
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 54 x 85 x 180 mm
- Temperature reading range (max.)
+760 °C
- Temperature reading range (min.)
-20 °C
- Features
Waterproof (IP67)
Documents & Downloads
Datasheet
Datasheet 3340510 Monacor DMT-4010RMS Handheld multimeter Digital Waterproof (IP67) Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 3340510 Monacor DMT-4010RMS Handheld multimeter Digital Waterproof (IP67) Display (counts): 4000
Description
Digital multimeter
For professional use
True-RMS measurement method Dust and water protection in accordance with IP class 67 with covered measurement sockets Automatic range for faster measurements 4000-digit resolution Additional bar display Voltage measurement up to DC/" 1000 V Current measurement up to DC/" 10 A Frequency measurement up to 10 MHz Resistance measurement up to 40 MΩ Capacitance measurement up to 40 mF Temperature measurement -20 °C to +760 °C Acoustic continuity test Data-Hold (measurement value storage) Peak-hold Maximum and minimum value recording LC-display with switchable background lighting Automatic switch-off Overload protection Delivery with test leads and protective case
This text is machine translated.
For professional use
True-RMS measurement method Dust and water protection in accordance with IP class 67 with covered measurement sockets Automatic range for faster measurements 4000-digit resolution Additional bar display Voltage measurement up to DC/" 1000 V Current measurement up to DC/" 10 A Frequency measurement up to 10 MHz Resistance measurement up to 40 MΩ Capacitance measurement up to 40 mF Temperature measurement -20 °C to +760 °C Acoustic continuity test Data-Hold (measurement value storage) Peak-hold Maximum and minimum value recording LC-display with switchable background lighting Automatic switch-off Overload protection Delivery with test leads and protective case
This text is machine translated.
Features
- Display 21 mm LCD
- 3¾ Digit,;Bar graph
- Range selection: Automatic,;manual
- Voltage: 5 ranges; DC 400 mV-1000 V;" 400 mV-1000 V
- Current: 5 ranges; DC 400 µA-10 A;" 400 µA-10 A.
- Resistance 6 ranges;400 Ω-40 MΩ
- Frequency:4 ranges;4 kHz-10 MHz
- Capacitance: 8 ranges;4 nF-40 mF
- Temperature: 1 Range;-20 °C to +760 °C;-4 °F to +1400 °F;Sensor type K
- Ass. Operating temperature -10 °C to +50 °C
- Dimensions 85 x 180 x 54 mm; incl. RUBBER HOLSTER
- Weight: 430 g
- Power supply: 9 V Block (not included)
- Special features: Peak
- Min/Max
- Hold, IP67
