Monacor DT-19SU Dome tweeter 50 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 1500 Hz

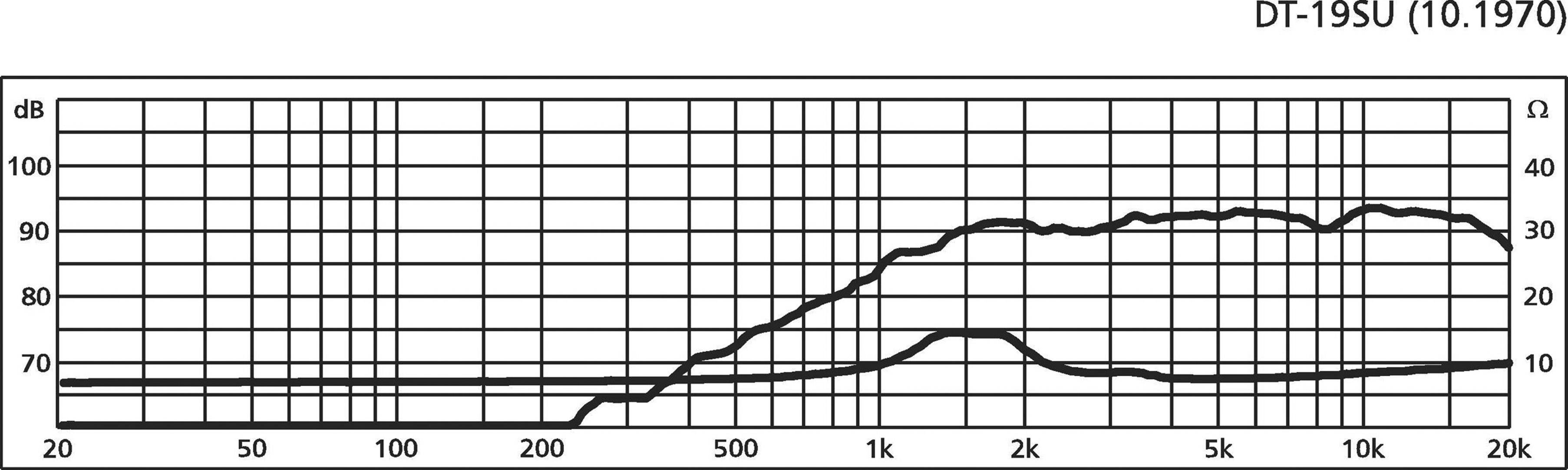

- Max. Frequency range: fx-20000 Hz
- Recv. Cut-off frequency (12 dB): 3000 Hz
- Maximum capacity 80 WMAX
- Power rating: 50WRMS
- Avg. Sound pressure (1W/m): 91 dB

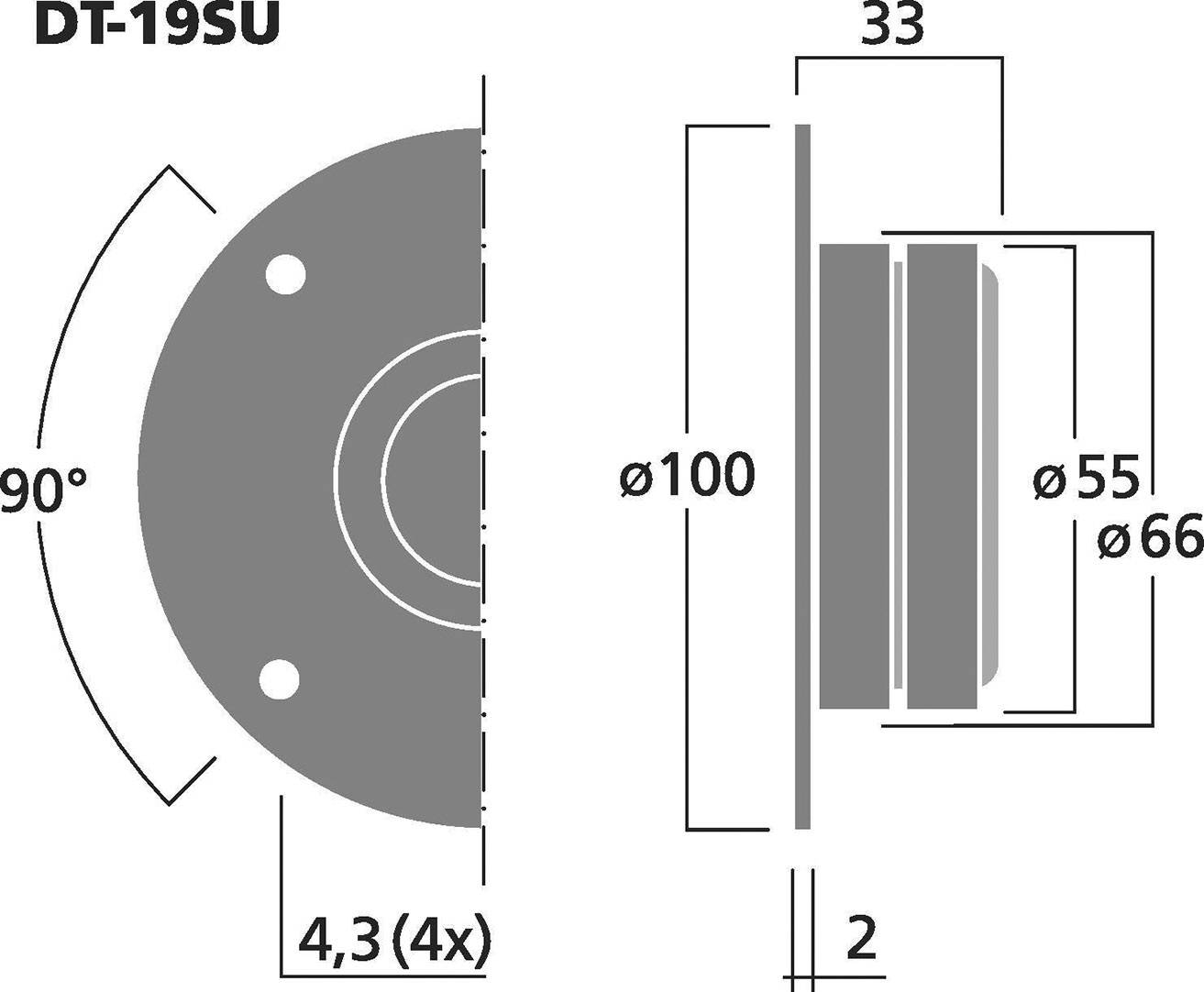

- Coil diameter: 19 mm
- Magnetic diameter: 55 mm
- Installation opening: diameter. 66 mm
- Installation depth: 33 mm
- Dimensions: diameter. 100 mm
- Weight: 0.45 kg
- Product type
Dome tweeter
- RMS capacity
50 W
- Max. load
80 W
- Min. frequency
70 Hz
- Max. frequency
20000 Hz
- Frequency range
70 Hz - 20000 Hz
- Sound pressure
91 dB
- Impedance
8 Ω
- Recess depth
33 mm
- Weight
450 g
- Width
100 mm
- (Ø)
100 mm
- Recess diameter
66 mm
- Speaker size (cm)
100 cm
Documents & Downloads
Datasheet
Datasheet 1331543 Monacor DT-19SU Dome tweeter 50 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1331543 Monacor DT-19SU Dome tweeter 50 W 8 Ω
Description
Features
- Hi-fi dome tweeter
- 19 mm soft-dome in laminate technology
- Double magnet
- Stable plastic front
- Diaphragm is extremely light
- Optimum brilliance behavior
- For demanding Hi-Fi applications especially in 3-way systems
