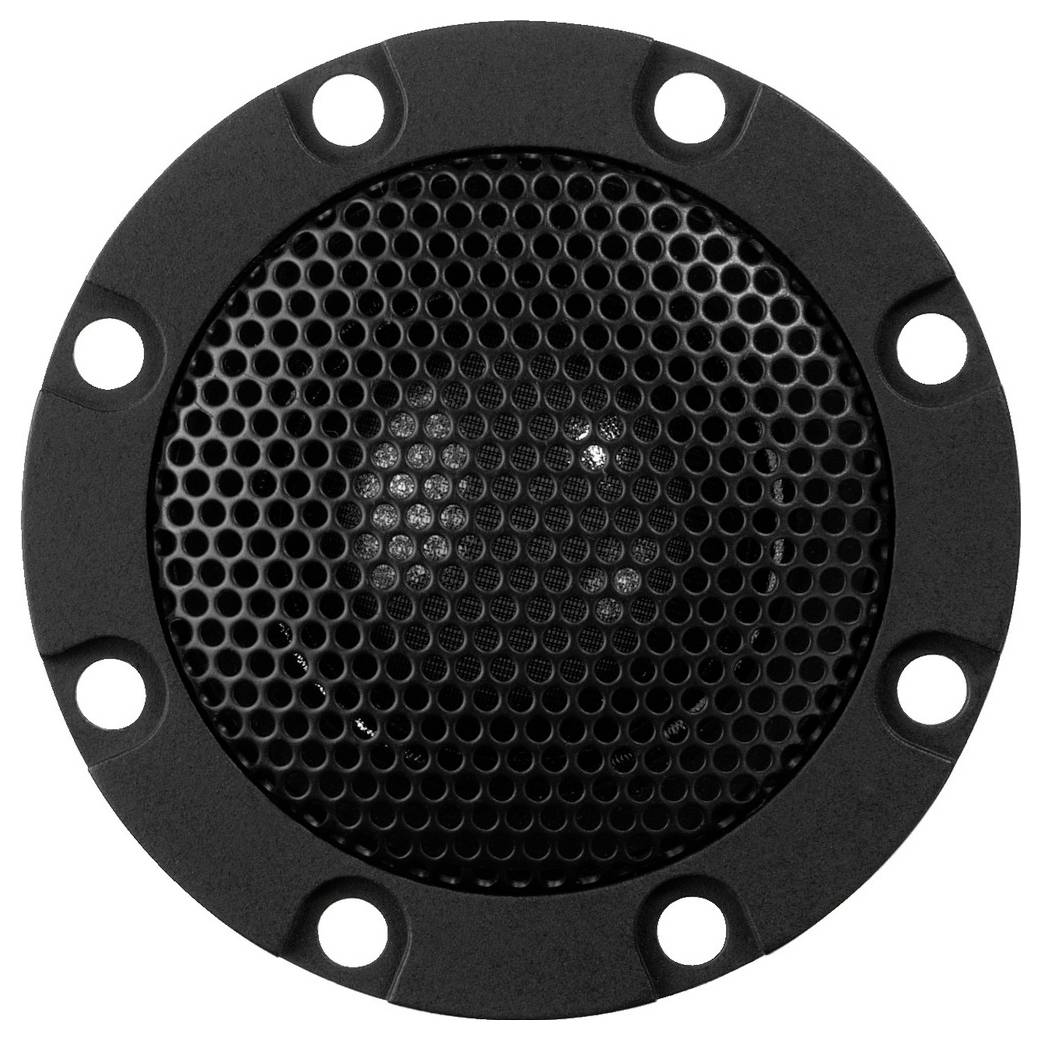

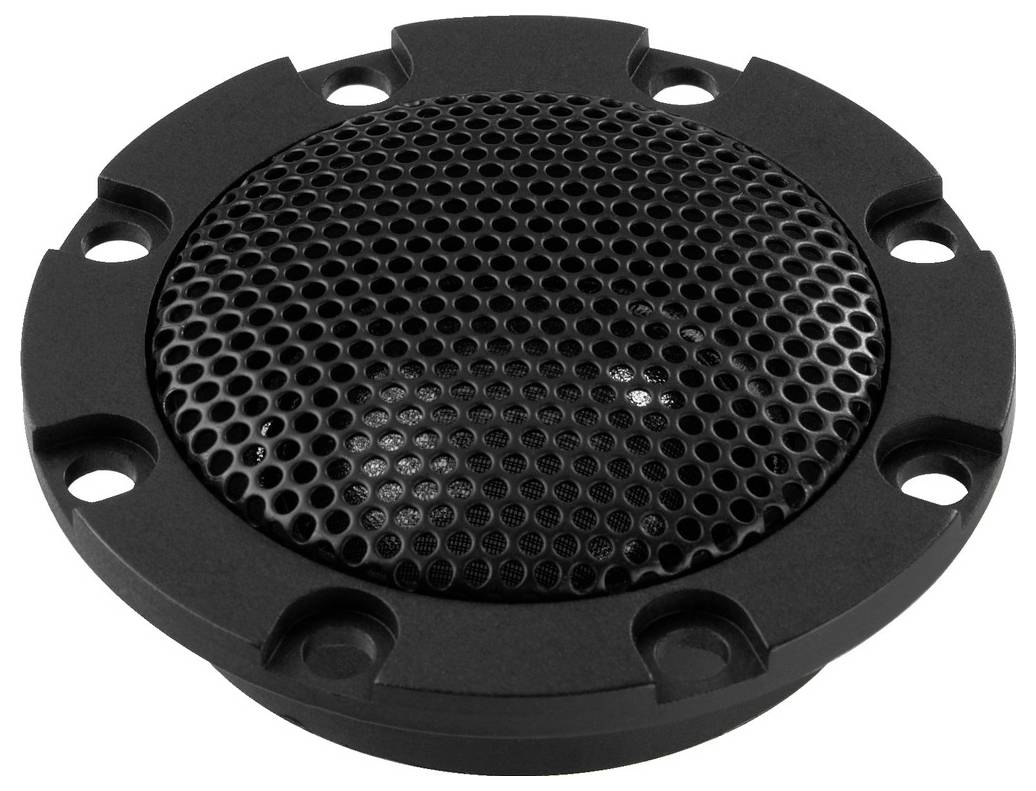

Monacor DT-284 Dome tweeter 60 W 4 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.18 kg
- Transmission technology: Cable

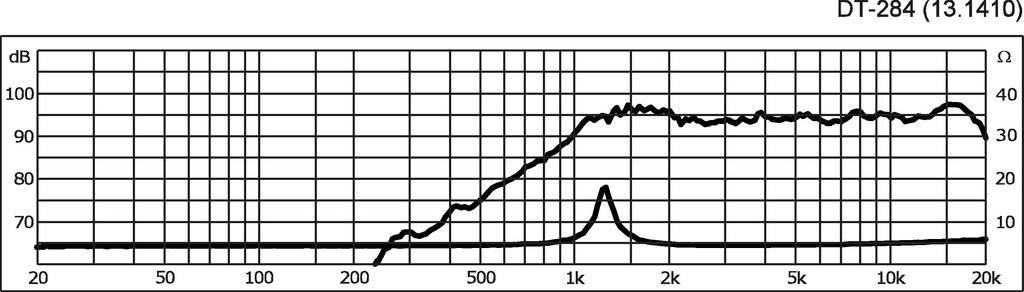

- Frequency range fx-20000 Hz
- Nominal capacity (RMS) 60 W.
- Characteristic sound pressure 91 dB/W/m

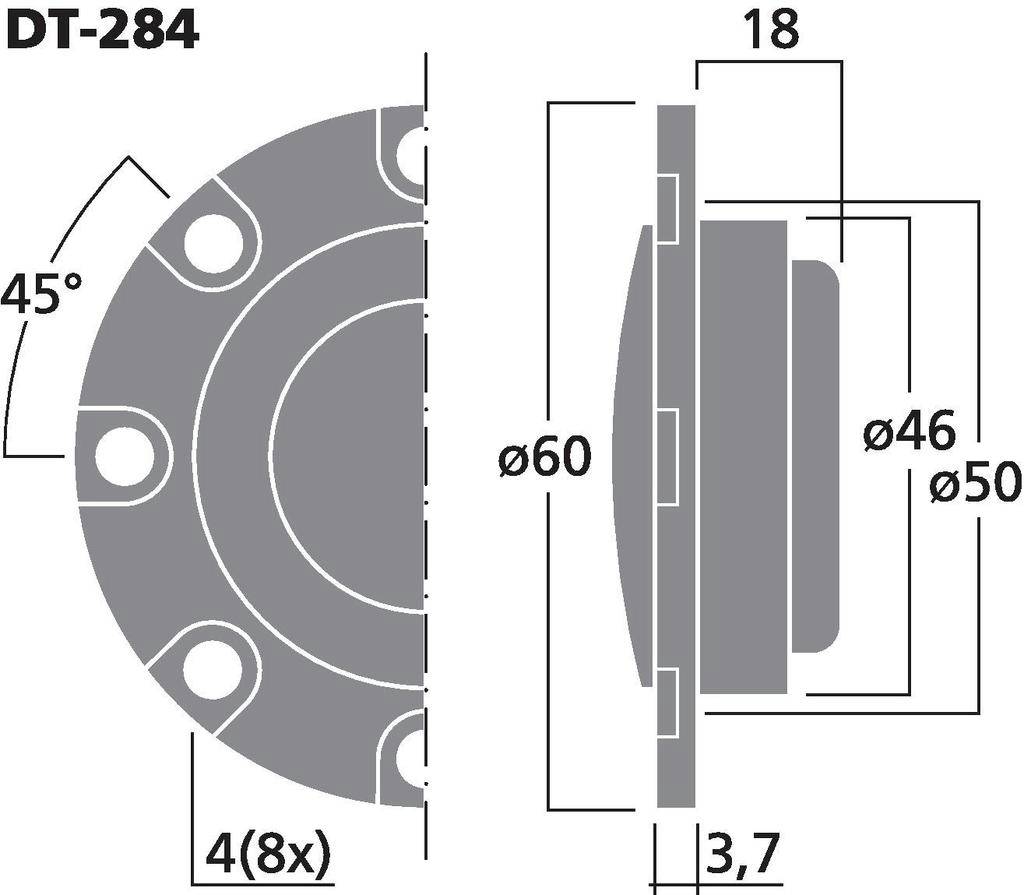

- Installation opening: 50 mm
- Installation depth: 18 mm
- Dimensions 60 x 21.7 mm
- Outer diameter: 60 mm
- Width 60 mm
- Height: 60 mm

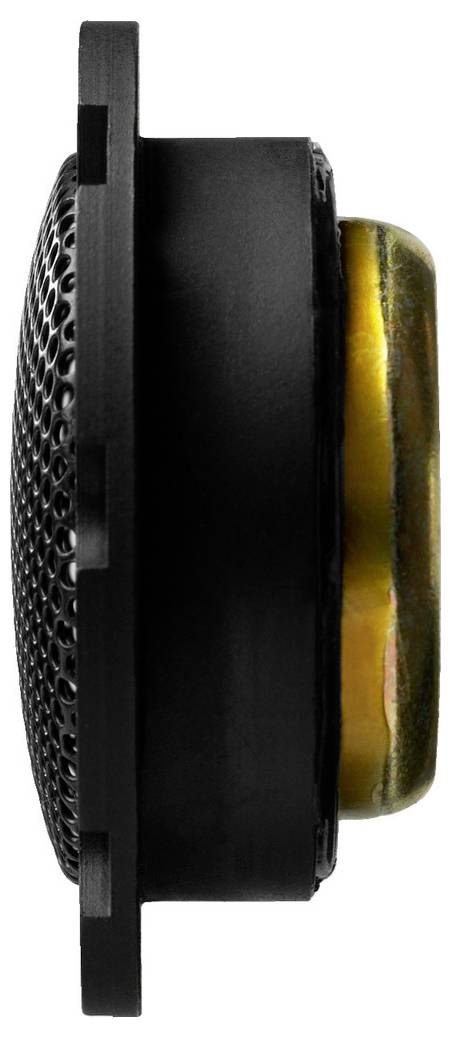

- Depth: 21.7 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.18 kg
- Speaker type 28 mm
- Gross weight: 0.225 kg
- Impedance (Z) 4 Ω
- Resonant frequency (fs): 1300 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Music load capacity (MAX) 100 W
- Voice coil diameter 28 mm
- Magnet diameter 46 mm
- Product type
Dome tweeter
- RMS capacity
60 W
- Max. load
100 W
- Max. frequency
20 kHz
- Frequency range
20 kHz (max)
- Sound pressure
91 dB
- Impedance
4 Ω
- Recess depth
18 mm
- Weight
180 g
- Factory colour
Black
- Length
21.7 mm
- Width
60 mm
- Height
60 mm
- (Ø)
60 mm
- Recess diameter
50 mm
- Speaker size (cm)
28 cm
Documents & Downloads
Datasheet
Datasheet 3340848 Monacor DT-284 Dome tweeter 60 W 4 Ω
User & Safety Instructions
User & Safety Instructions 3340848 Monacor DT-284 Dome tweeter 60 W 4 Ω
Description

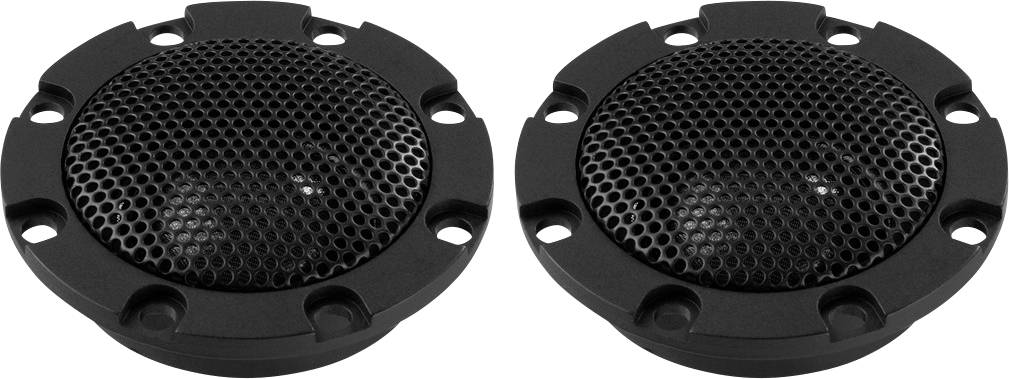

Pair of dome tweeters, 60 W, 4 Ω

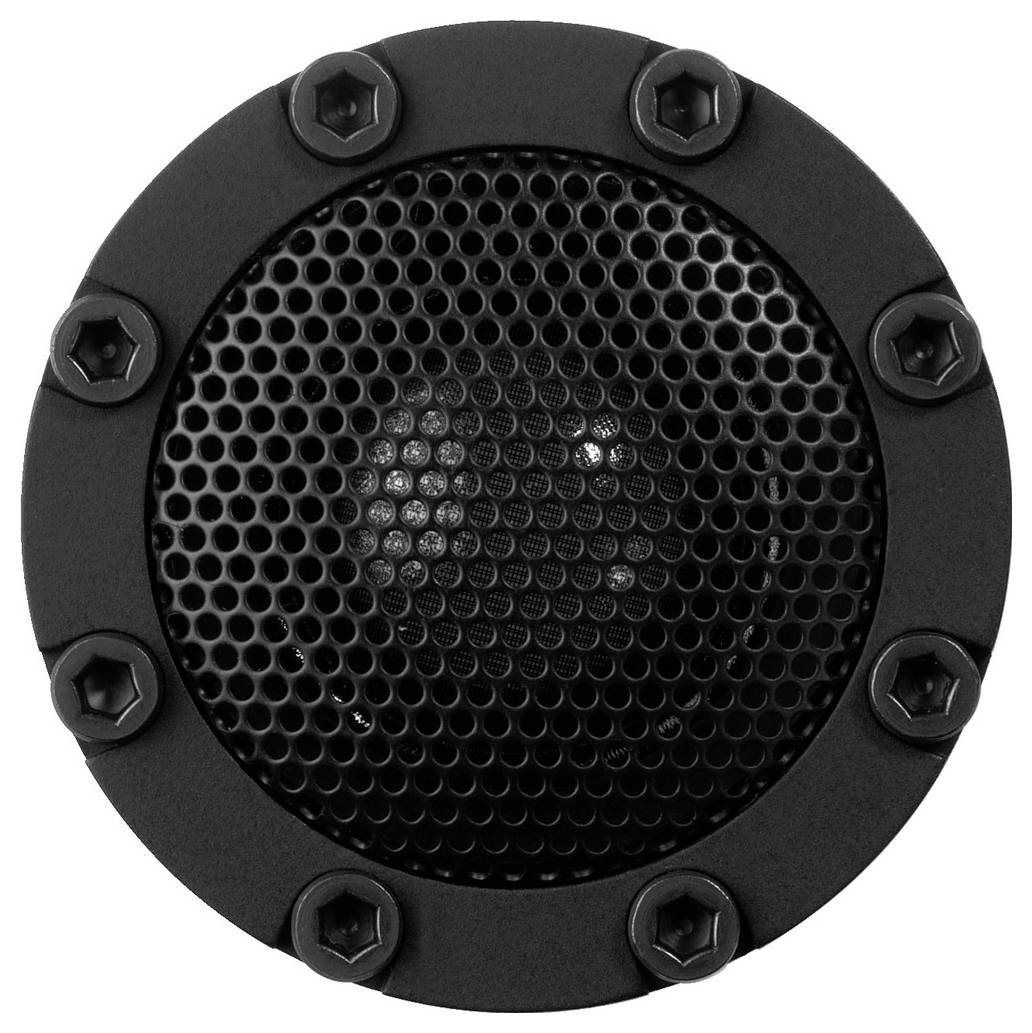

28 mm silk diaphragm Aluminium voice coil Neodymium magnet High Quality ABS casing with 8-hole screw connection Perfect sound with extremely low distortions Highest level strength Extraordinary long stroke
A crossover filter is required to operate! Ideal CDN-2X
This text is machine translated.
28 mm silk diaphragm Aluminium voice coil Neodymium magnet High Quality ABS casing with 8-hole screw connection Perfect sound with extremely low distortions Highest level strength Extraordinary long stroke
A crossover filter is required to operate! Ideal CDN-2X
This text is machine translated.
Features
- Impedance (Z) 4 Ω
- Transmission technology: Cable
- Frequency range fx-20000 Hz
- Resonance frequency (fs): 1300 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Nominal capacity (RMS) 60 W.
- Music load capacity (MAX) 100 W
- Characteristic sound pressure 91 dB/W/m
- Voice coil diameter: Ø 28 mm
- Magnet diameter: Ø 46 mm
- Mounting hole dia. 50 mm.
- Installation depth: 18 mm
- Dimensions: Ø 60 mm x 21.7 mm
- Outer diameter: Ø 60 mm
- Width: Ø 60 mm
- Height: Ø 60 mm
- Depth: 21.7 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.18 kg
- Packing: 2
- Speaker type 28 mm
- Packaging dimensions (W x H x L) 0.085 x 0.045 x 0.155 m
- Gross weight: 0.225 kg
- Net weight: 0.18 kg
