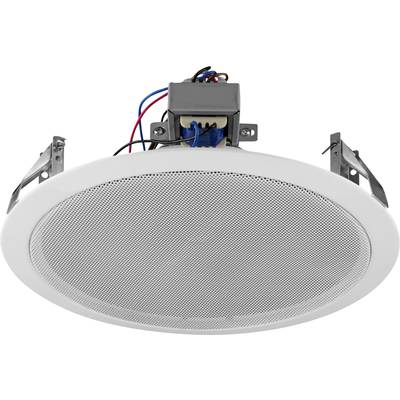

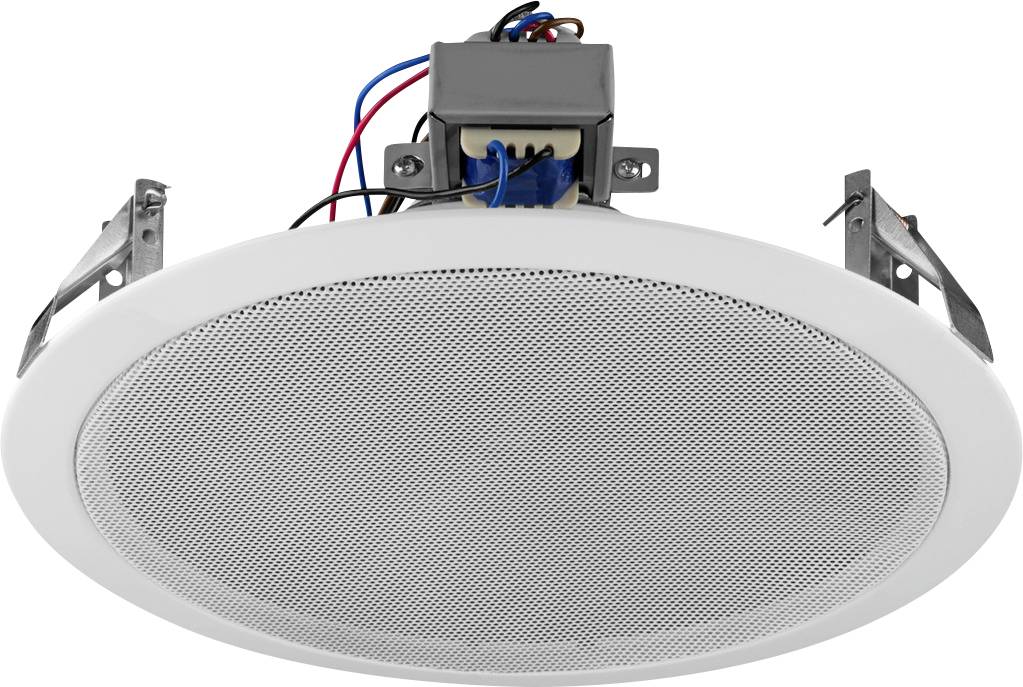

Monacor EDL-118TW PA ceiling speaker 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.208 kg
- Transmission technology 100 V
- Frequency range 90-20000 Hz
- Nominal load (RMS) 15/10/6/3 W.
- Characteristic sound pressure 94 dB/W/m

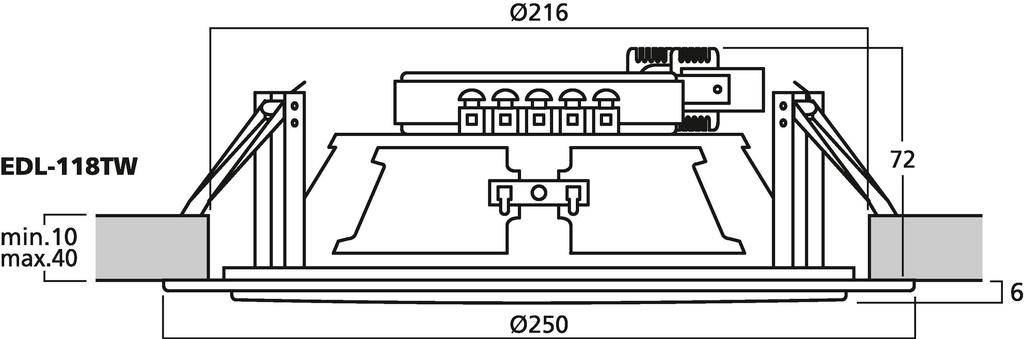

- Installation opening: 216 mm
- Mounting depth: 85 mm
- Dimensions 252 x 85 mm
- Outer diameter: 252 mm
- Width 252 mm
- Height: 252 mm
- Depth: 85 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weight: 1.21 kg
- Speaker type: 200 mm
- Gross weight: 1.34 kg
- Max. Nominal sound pressure 106 dB
- Product type
PA ceiling speaker
- Type
Round
- RMS capacity
15 W
- Power levels
15/10/6/3 W
- Max. sound pressure
106 dB
- Features
Ceiling speaker
- Frequency range
90-20000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Metal
- Weight
1.21 kg
- (Ø)
25.2 cm
- Length
8.5 cm
- Dim
(Ø x H) 25.2 cm x 25.2 cm
- Height
25.2 cm
- Width
25.2 cm
- Recess depth
85 mm
- Recess diameter
21.6 mm
- Sound pressure
94 dB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340949 Monacor EDL-118TW PA ceiling speaker 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340949 Monacor EDL-118TW PA ceiling speaker 100 V White 1 pc(s)
Description
PA Ceiling Speakers
With integrated tweeter
100-V transmission technology 2-way coaxial loudspeaker 20 cm (8") Metal casing with cover of the basket openings Power tapping 15/10/6/3 W Quick mounting unit with spring clamps Connection via terminal For ceiling thicknesses 10-40 mm
This text is machine translated.
With integrated tweeter
100-V transmission technology 2-way coaxial loudspeaker 20 cm (8") Metal casing with cover of the basket openings Power tapping 15/10/6/3 W Quick mounting unit with spring clamps Connection via terminal For ceiling thicknesses 10-40 mm
This text is machine translated.
Features
- Transmission technology 100 V
- Frequency range 90-20000 Hz
- Nominal load (RMS) 15/10/6/3 W.
- Characteristic sound pressure 94 dB/W/m
- Max. Nominal sound pressure 106 dB
- Mounting hole dia. 216 mm.
- Mounting depth: 85 mm
- Dimensions: Ø 252 mm x 85 mm
- Outer diameter: Ø 252 mm
- Width: Ø 252 mm
- Height: Ø 252 mm
- Depth: 85 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weight: 1.21 kg
- Packing: 1
- Speaker type: 200 mm
- Packaging dimensions (W x H x L) 0.255 x 0.08 x 0.265 m
- Gross weight: 1.34 kg
- Net weight: 1.208 kg
