Buy Monacor EDL-15 PA ceiling speaker 6 W 100 V White 1 pc(s)

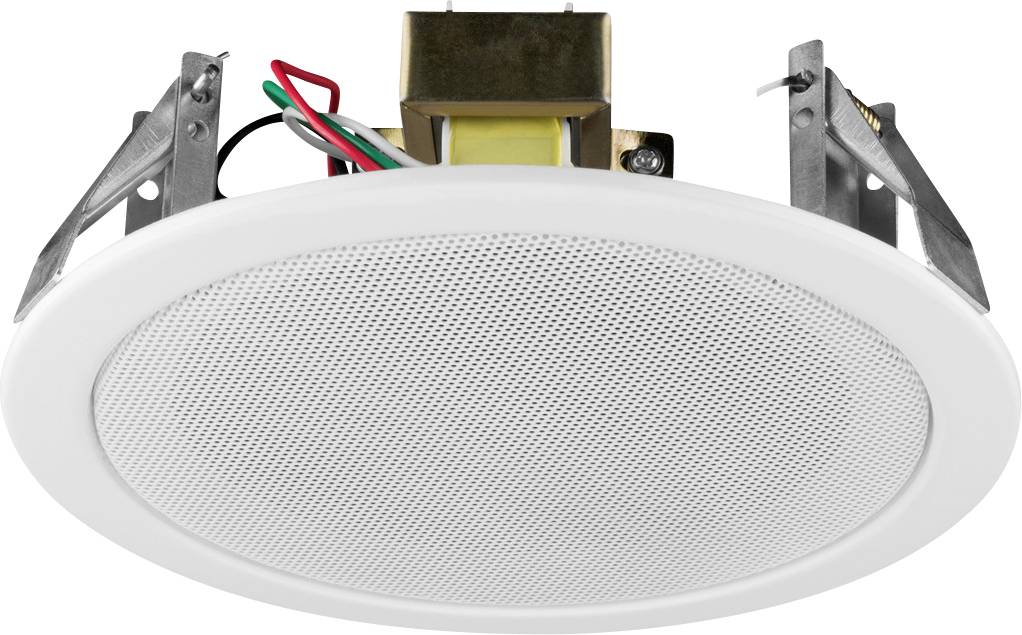

A round ceiling speaker with a white grille cover and exposed cables. Suitable for installation in ceiling structures.

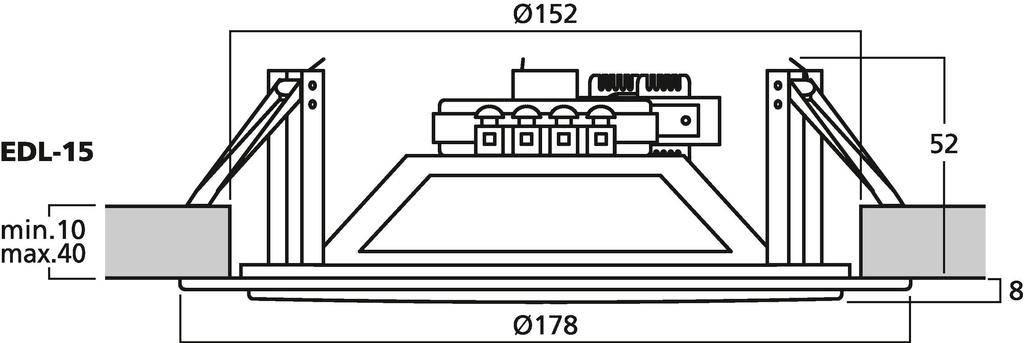

Technical drawing of an EDL-15 built-in loudspeaker, showing side view with dimensions: Diameter 152 mm, Depth 52 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.663 kg
Transmission technology 100 V
Frequency range 100-16000 Hz
Nominal load (RMS) 6/3/1.5 W.
Characteristic sound pressure 92 dB/W/m
Installation opening: 152 mm
Mounting depth 50 mm
Dimensions 182 x 50 mm
Outer diameter: 182 mm
Width 182 mm
Height: 182 mm
Depth: 50 mm
Colour: White
Ass. Operating temperature 0-40 °C
Weight: 0.6 kg
Speaker type: 130-pack
Gross weight: 0.749 kg
Max. Nominal sound pressure 100 dB

Product type: PA ceiling speaker

Type: Round

RMS capacity: 6 W

Max. load: 6 W

Power levels: 6 unece.unit.WTT
3 unece.unit.WTT
1.5 unece.unit.WTT

Max. sound pressure: 100 dB

Features: Ceiling speaker

Frequency range: 100-16000 Hz

Operating voltage: 100 V

Factory colour: White

Material: Metal

Weight: 600

(Ø): 18.2 mm

Length: 5 mm

Dim: (Ø x H) 18.2 mm x 18.2 mm

Height: 18.2 mm

Width: 18.2 mm

Recess depth: 50 mm

Recess diameter: 15.2 mm

Sound pressure: 92 dB

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340945 Monacor EDL-15 PA ceiling speaker 6 W 100 V White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3340945 Monacor EDL-15 PA ceiling speaker 6 W 100 V White 1 pc(s)

Description

PA Ceiling Speakers
100-V transmission technology 13 cm broadband loudspeaker (5") Metallic casing with covering of the basket openings Power tapping 6/3/1.5 W Quick mounting device with spring clamps Connection via terminal For ceiling thicknesses 10-40 mm

This text is machine translated.

Features

Transmission technology 100 V
Frequency range 100-16000 Hz
Nominal load (RMS) 6/3/1.5 W.
Characteristic sound pressure 92 dB/W/m
Max. Nominal sound pressure 100 dB
Mounting hole dia. 152 mm.
Mounting depth 50 mm
Dimensions: Ø 182 mm x 50 mm
Outer diameter: Ø 182 mm
Width: Ø 182 mm
Height: Ø 182 mm
Depth: 50 mm
Colour: White
Ass. Operating temperature 0-40 °C
Weight: 0.6 kg
Packing: 1
Speaker type: 130-pack
Packaging dimensions (W x H x L) 0.215 x 0.07 x 0.2 m
Gross weight: 0.749 kg
Net weight: 0.663 kg
