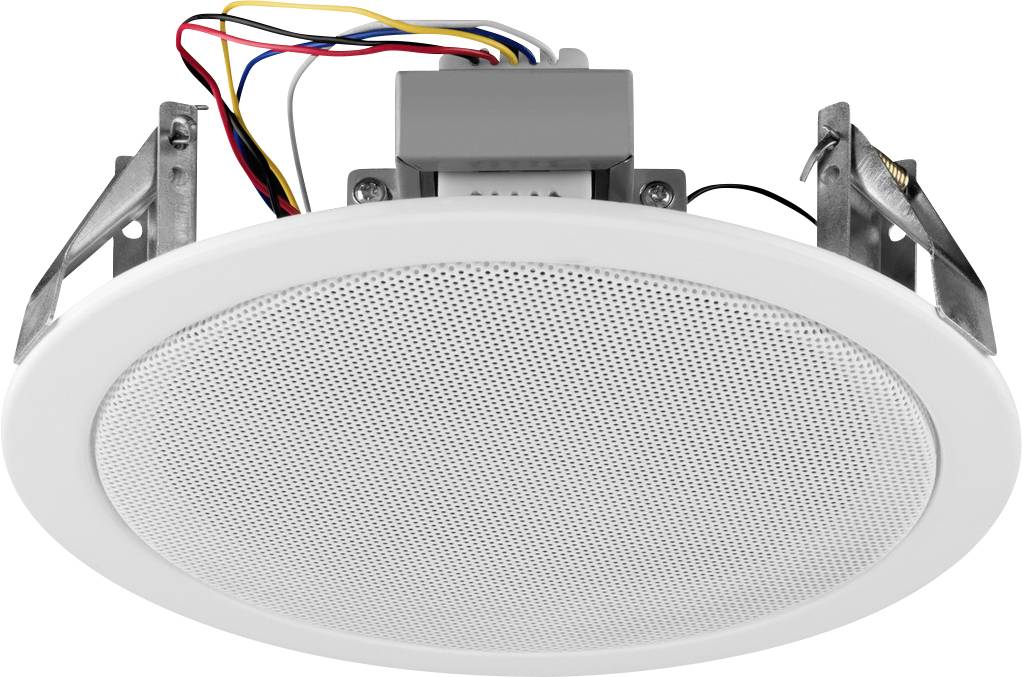

Monacor EDL-16 PA ceiling speaker 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.803 kg
- Transmission technology 100 V
- Frequency range 90-16000 Hz
- Nominal capacity (RMS) 10/6/3/1.5 W.
- Characteristic sound pressure 92 dB/W/m
- Installation opening: 166 mm
- Mounting depth 55 mm
- Dimensions 195 x 55 mm
- Outer diameter: 195 mm
- Width: 195 mm
- Height: 195 mm
- Depth: 55 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weighs 0.8 kg
- Speaker type: 150
- Gross weight: 0.901 kg
- Max. Nominal sound pressure 102 dB
- Product type
PA ceiling speaker
- Type
Round
- RMS capacity
10 W
- Power levels
10/6/3/1.5 W
- Max. sound pressure
102 dB
- Features
Ceiling speaker
- Frequency range
90-16000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Metal
- Weight
800 g
- (Ø)
19.5 cm
- Length
5.5 cm
- Dim
(Ø x H) 19.5 cm x 19.5 cm
- Height
19.5 cm
- Width
19.5 cm
- Recess depth
55 mm
- Recess diameter
16.6 mm
- Sound pressure
92 dB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340946 Monacor EDL-16 PA ceiling speaker 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340946 Monacor EDL-16 PA ceiling speaker 100 V White 1 pc(s)
Description
PA Ceiling Speakers
100-V transmission technology 15 cm broadband loudspeaker (6") Metallic casing with covering the basket openings Power tapping 10/6/3/1.5 W Quick mounting device with spring clamps Connection via terminal For ceiling thicknesses 10-40 mm
This text is machine translated.
100-V transmission technology 15 cm broadband loudspeaker (6") Metallic casing with covering the basket openings Power tapping 10/6/3/1.5 W Quick mounting device with spring clamps Connection via terminal For ceiling thicknesses 10-40 mm
This text is machine translated.
Features
- Transmission technology 100 V
- Frequency range 90-16000 Hz
- Nominal capacity (RMS) 10/6/3/1.5 W.
- Characteristic sound pressure 92 dB/W/m
- Max. Nominal sound pressure 102 dB
- Mounting hole dia. 166 mm.
- Mounting depth 55 mm
- Dimensions: Ø 195 mm x 55 mm
- Outer diameter: Ø 195 mm
- Width: Ø 195 mm
- Height: Ø 195 mm
- Depth: 55 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weighs 0.8 kg
- Packing: 1
- Speaker type: 150
- Packaging dimensions (W x H x L) 0.22 x 0.07 x 0.21 m
- Gross weight: 0.901 kg
- Net weight: 0.803 kg
