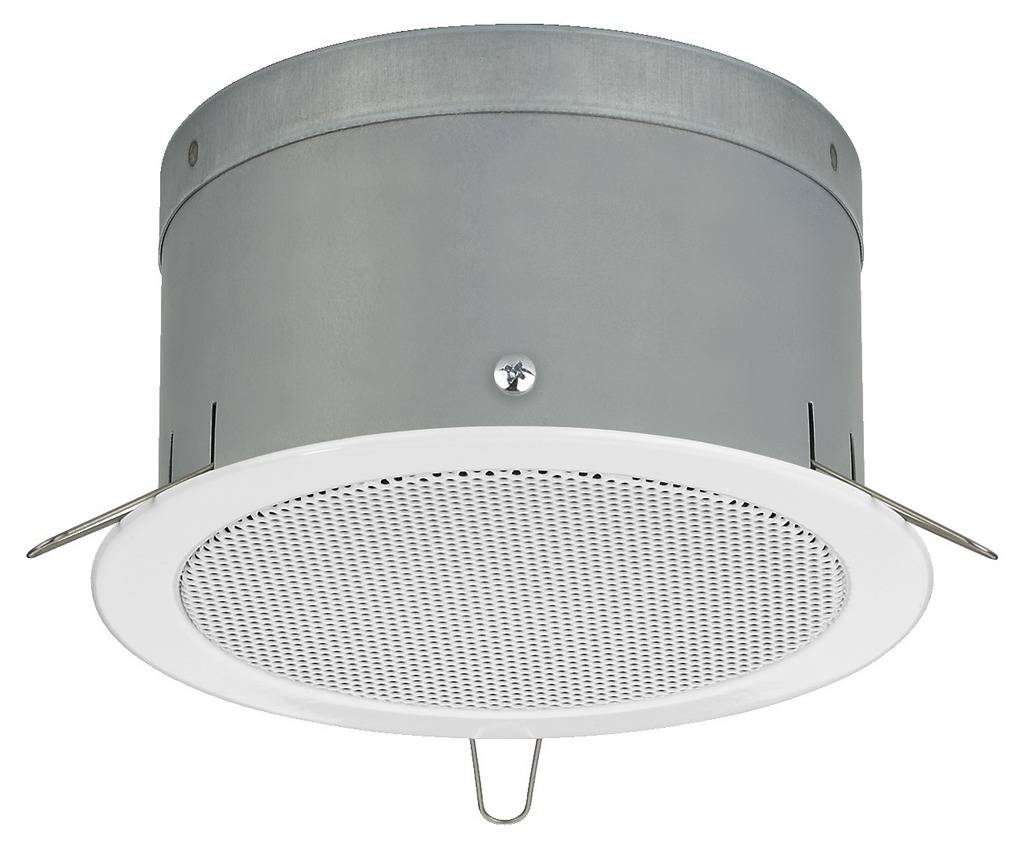

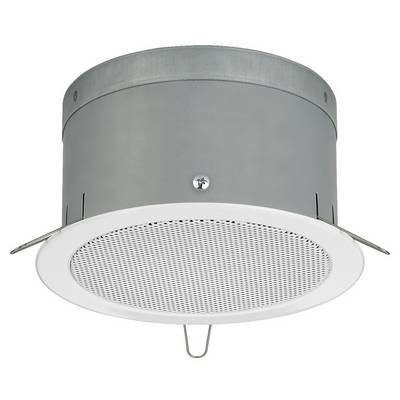

Monacor EDL-165C/WS In-ceiling speaker 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Frequency range:80-1 9000 Hz
- Resonant frequency (fs): -
- Power capability, 100V: 6/3/1.5 WRMS
- Load-carrying capacity, 8 Ohm: -
- Load-carrying capacity, 4 Ohm: -
- Avg. Sound pressure (1W/m): 93 dB
- Max. Nominal sound pressure: 101 dB
- Speaker Type: 130-pack
- Installation opening: diameter. 150 mm
- Cutout depth: 90 mm
- Permissible operating temperature: -10°C to +55°C
- Dimensions: diameter. 170 mm x 95 mm
- Weight 1 kg.
- Other: -
- Product type
In-ceiling speaker
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331605 Monacor EDL-165C/WS In-ceiling speaker 1 pc(s)
Description
Features
- Pa Ceiling-mounted loudspeaker with EN -54-24 certification
- 100-V transformer technology
- Broadband loudspeaker with a high degree of efficiency
- Metal housing
- Fire pot
- Rapid assembly equipment
- 3 power taps via push terminals
- This text is machine translated.
