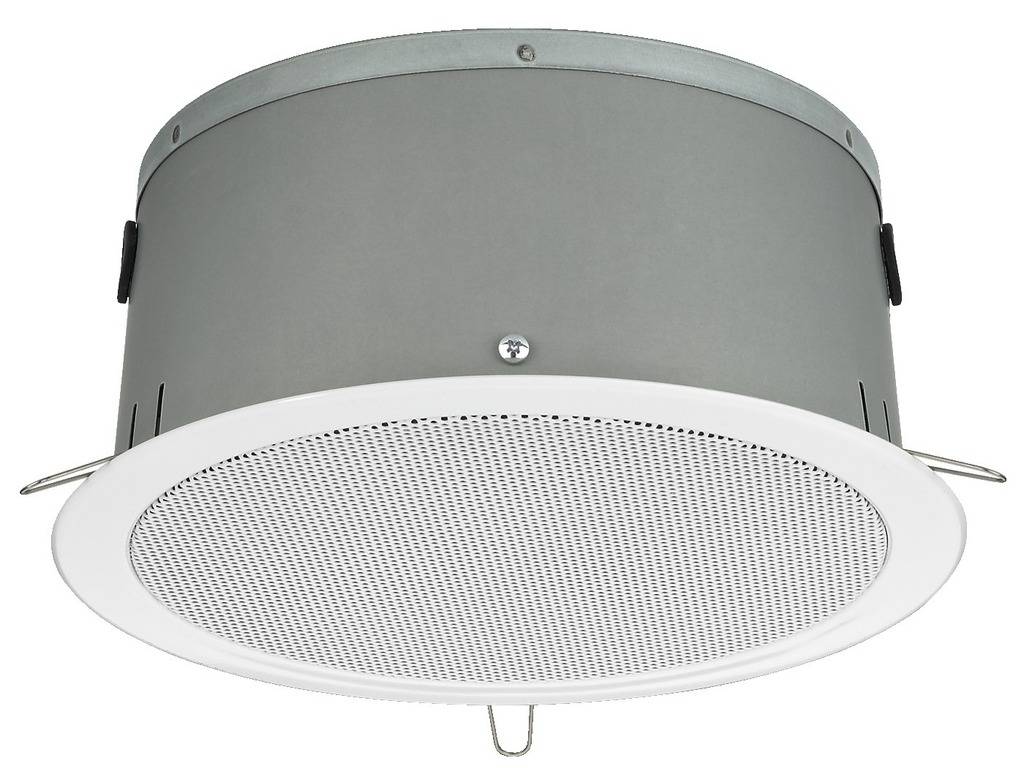

Monacor EDL-224ABC In-ceiling speaker 24 W 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 75-20000 Hz
- Resonant frequency (fs): -
- Power capability, 100V: 2 x 6/2 x 3/2 x1.5 WRMS
- Load-carrying capacity, 8 Ohm: -
- Load-carrying capacity, 4 Ohm: -
- Avg. Sound pressure (1W/m): 92 dB
- Max. Nominal sound pressure 100 dB
- Speaker Type: 2 x 100 pc
- Installation opening: diameter. 230 mm
- Installation depth: 110 mm
- Permissible operating temperature: -10°C to +55°C
- Dimensions: diameter. 252 mm x 115 mm
- Weight: 1.7 kg
- Other: -
- Product type
In-ceiling speaker
- Max. load
24 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331612 Monacor EDL-224ABC In-ceiling speaker 24 W 1 pc(s)
Description
Features
- Pa A/B ceiling speaker with EN -54-24 certification. For systems with A/B speaker distribution according to EN 60849. This is ideal for smaller acoustic sound sections by the cost-effective reduction of the required ceiling cutouts
- 100-V transformer technology
- 2 independent speaker systems
- Broadband speaker with a very high degree of efficiency and high maximum volume
- Metal housing
- Fire pot
- Rapid assembly equipment
- 3 power taps via push terminals
- This text is machine translated.
