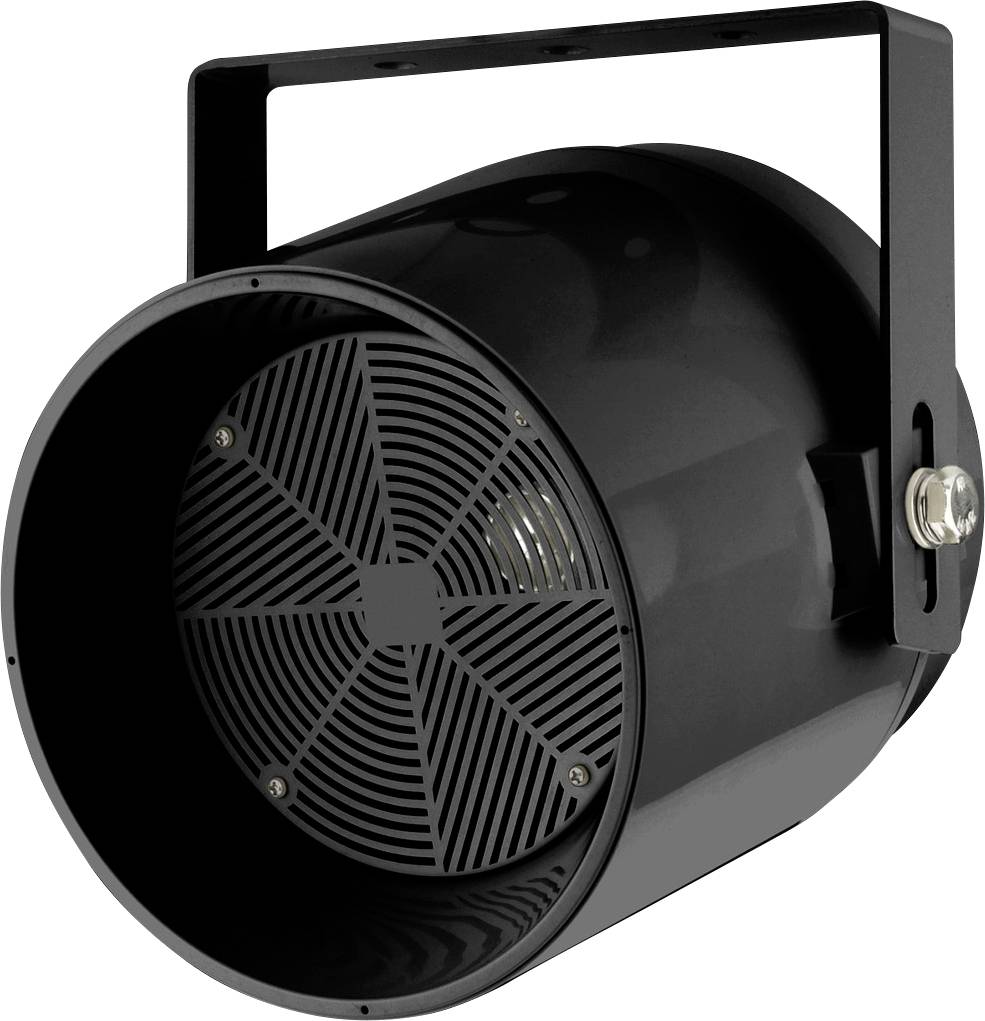

Monacor EDL-250/SW PA sound source 30 W Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.116 kg
- Transmission technology 100 V
- Frequency range 125-15000 Hz
- Characteristic sound pressure 101 dB/W/m
- Dimensions 180 x 200 mm
- Width 180 mm
- Height: 180 mm
- Depth: 200 mm
- Colour, black
- Ass. Operating temperature -30 °C to +40 °C
- Weight: 2.1 kg.
- Gross weight: 2.44 kg
- Inputs: Cable connection
- Angle of radiation: 110°
- Angle of radiation horizontal 110°
- Angle of radiation vertical 110°
- Active/passive: Passive
- Housing material: Plastic
- Nominal load 30/15/7.5 W
- Total load capacity 30 W.
- Number of built-in LS chassis: 1
- Speaker size 13 cm (5")
- Mounting unit: Mounting bracket
- Protection class: IP44
- Product type
PA sound source
- Operating voltage
100 V
- RMS capacity
30 W
- Max. load
30 W
- Max. sound pressure
101 dB
- Features
weatherproof
IP44
- Material
Plastic
- Length
20 mm
- Width
18 mm
- Content
1 pc(s)
- Weight
2.1 kg
- Factory colour
Black
- Height
18 mm
- Sound pressure
101 dB
- Frequency range
125-15000 Hz
Documents & Downloads
Datasheet
Datasheet 3340504 Monacor EDL-250/SW PA sound source 30 W Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340504 Monacor EDL-250/SW PA sound source 30 W Black 1 pc(s)
Description
Weatherproof PA sound projector
100-V-transmission technology Weather-proof plastic housing Connection cable with 3 power tapings Swivel mounting bracket
This text is machine translated.
100-V-transmission technology Weather-proof plastic housing Connection cable with 3 power tapings Swivel mounting bracket
This text is machine translated.
Features
- Active/passive: Passive
- Transmission technology 100 V
- Load capacity
- Total: 30 W
- Nominal load 30/15/7.5 W
- Frequency range 125-15000 Hz
- Number of built-in LS chassis: 1
- Speaker size 13 cm (5")
- Characteristic sound pressure 101 dB/W/m
- Angle of radiation: 110°
- Angle of radiation horizontal 110°
- Angle of radiation vertical 110°
- Housing material: Plastic
- Colour, black
- Mounting unit: Mounting bracket
- Protection class: IP44
- Ass. Operating temperature -30 °C to +40 °C
- Dimensions: Ø 180 mm x 200 mm
- Width: Ø 180 mm
- Height: Ø 180 mm
- Depth: 200 mm
- Weight: 2.1 kg.
- Inputs: Cable connection
- Packaging dimensions (W x H x L) 0.23 x 0.26 x 0.24 m
- Gross weight: 2.44 kg
- Net weight: 2.116 kg
