Monacor EDL-310L PA recessed speaker 10 W 100 V Black 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 10 Piece(s) available
Highlights & Details

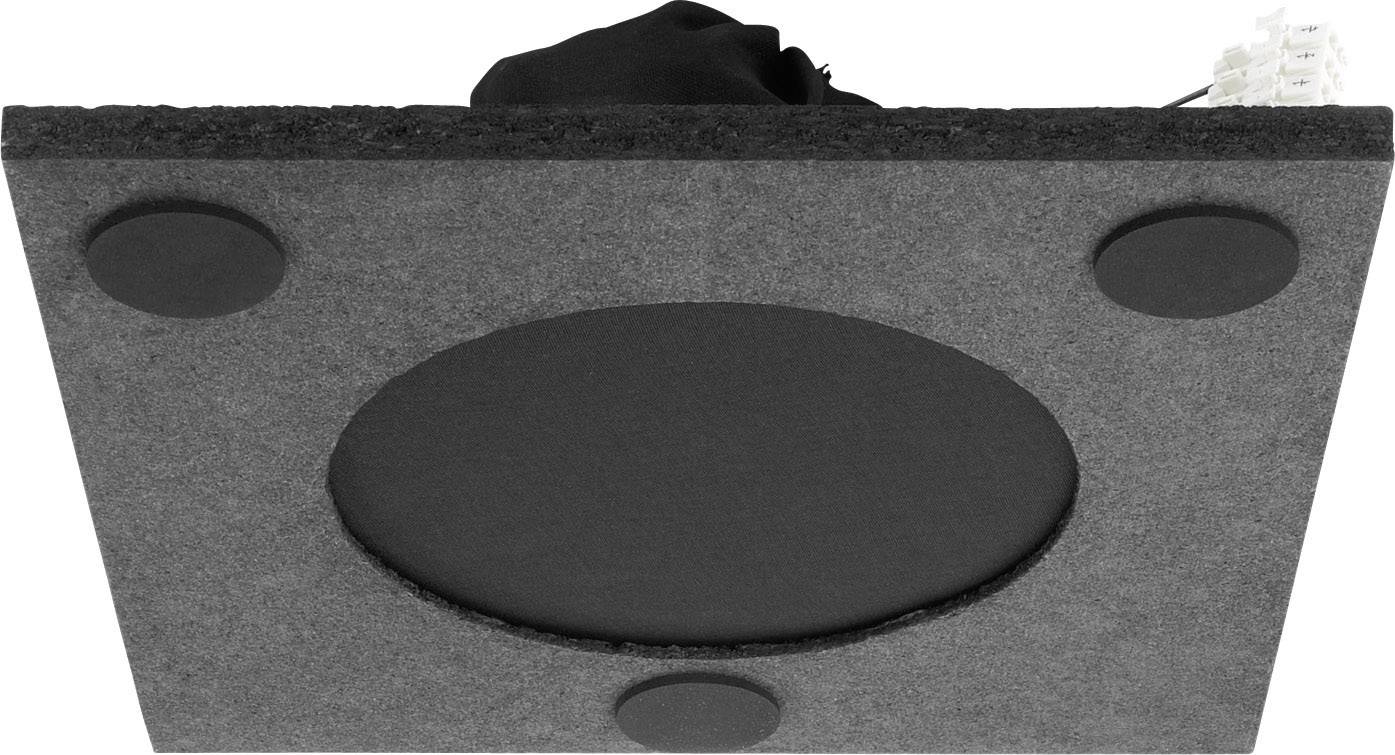

Monacor EDL-310L PA ceiling-mounted loudspeaker
- 100-volt transmission technology with 3 power taps up to< br> 10 W RMS high-quality wide-band speaker (20 cm) with exceptionally good linearity, extended bass playback and a high degree of efficiency.< br> for all suspended ceilings and for free suspension
Technical specifications
- Max. load
10 W
- Power levels
2.5 W
5 W
10 W
IP6K9K
- Frequency range
50 - 18 000 Hz
- Operating voltage
100 V
- Factory colour
Black
- Width
30 cm
- Length
30 cm
- Depth
9.5 cm
- (Ø)
30 cm
- Weight
1.9 kg
- Dim
(Ø x L) 30 cm x 30 cm
- Product type
PA recessed speaker
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 314181 Monacor EDL-310L PA recessed speaker 10 W 100 V Black 1 pc(s)
Description
Special speaker, which open up completely new possibilities of the invisible sound: You can use as a ceiling support speaker effectively an open baffle technology for the ceiling sound systems. Pa Ceiling-edition loudspeakers.
This text is machine translated.
This text is machine translated.
Features
- Simple installation through direct support on or through the suspension of the ceiling (to avoid rattle noise lightweight ceilings). For all sound open ceiling very good sound picture with excellent sound distribution in the room. Most sound denser ceiling can be typical hochtonbedampfungen by simple tweeter regulations on the amplifier to a large extent correct and hintergrund-beschallungen here also can be realized without any cut-out and without visible speaker
- Dimensions 300mmx300mm
- Required clear height above the ceiling
- In direct support:> 10 cm, cm in suspension above the ceiling:> 25 cm
- Facilities the baffle with 3 foam rubber pads for the support or 3 pilot-hole for the suspension.
