Monacor EDL-42HQ Flush mount speaker 30 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.945 kg
- 100 V or low impedance transmission technology
- Frequency range 70-20000 Hz
- NOMINAL CAPACITY (RMS) 15 W (8 Ω)8/4/2/1 W (100 V)
- Characteristic sound pressure 85 dB/W/m

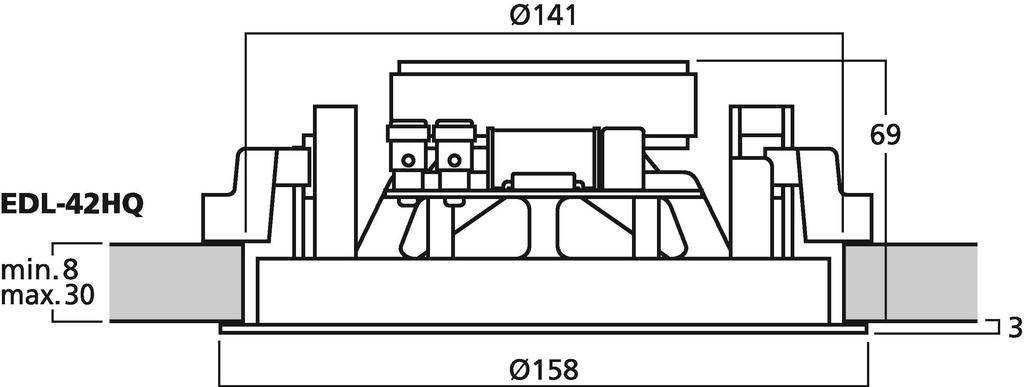

- Installation opening: 141 mm
- Mounting depth: 70 mm
- Dimensions 158 x 72 mm
- Outer diameter: 158 mm
- Width 158 mm
- Height: 158 mm
- Depth: 70 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weight 0.930 kg
- Speaker type 100
- Gross weight: 1.08 kg
- Max. Nominal sound pressure 96 dB
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 70 Hz
- Music load capacity (MAX) 30 W
- Front grid: Metal / plastic
- Product type
Flush mount speaker
- RMS capacity
15 W
- Max. load
30 W
- Impedance
8 Ω
- Frequency range
70-20000 Hz
- Factory colour
White
- Width
15.8 cm
- Height
15.8 cm
- Length
7 cm
- (Ø)
15.8 cm
- Dim
(Ø x H) 15.8 cm x 15.8 cm
- Recess depth
70 mm
- Recess diameter
14.1 mm
- Sound pressure
85 dB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340855 Monacor EDL-42HQ Flush mount speaker 30 W 8 Ω White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340855 Monacor EDL-42HQ Flush mount speaker 30 W 8 Ω White 1 pc(s)
Information
Information 3340855 Monacor EDL-42HQ Flush mount speaker 30 W 8 Ω White 1 pc(s)
Description

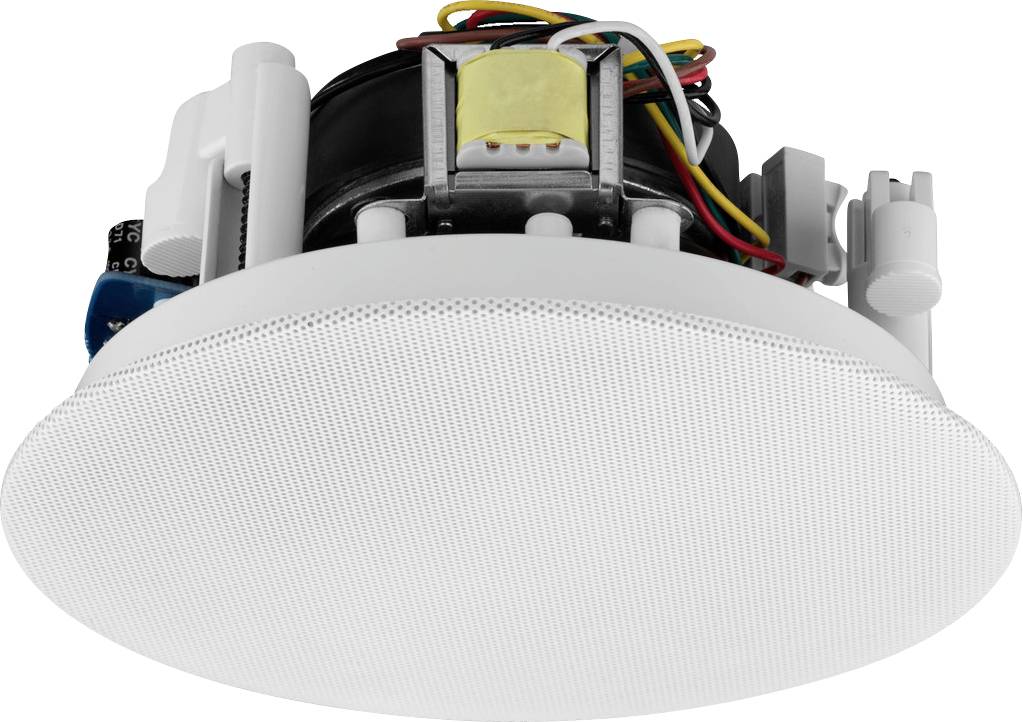

Hi-Fi Wall and Ceiling Loudspeaker, 15 W

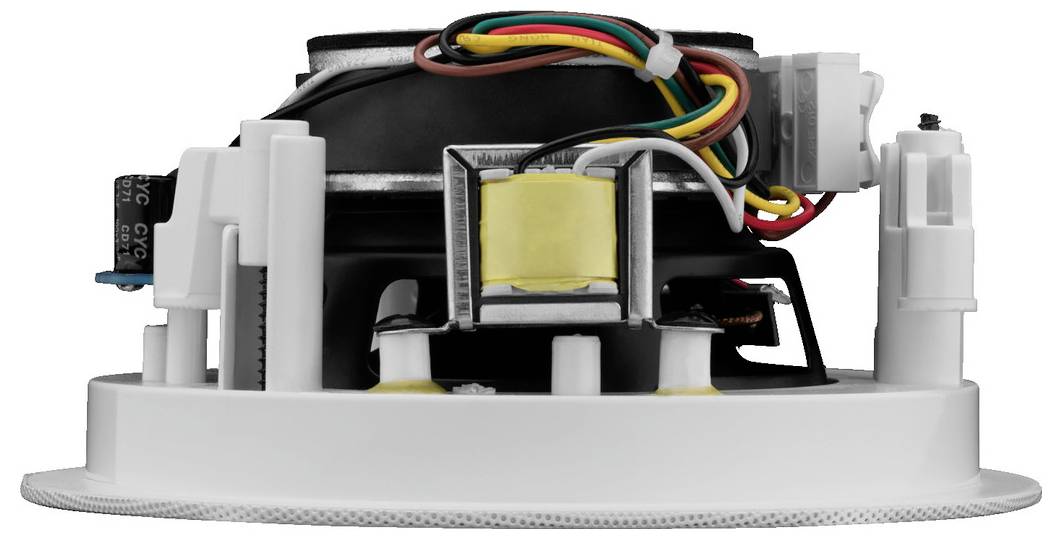

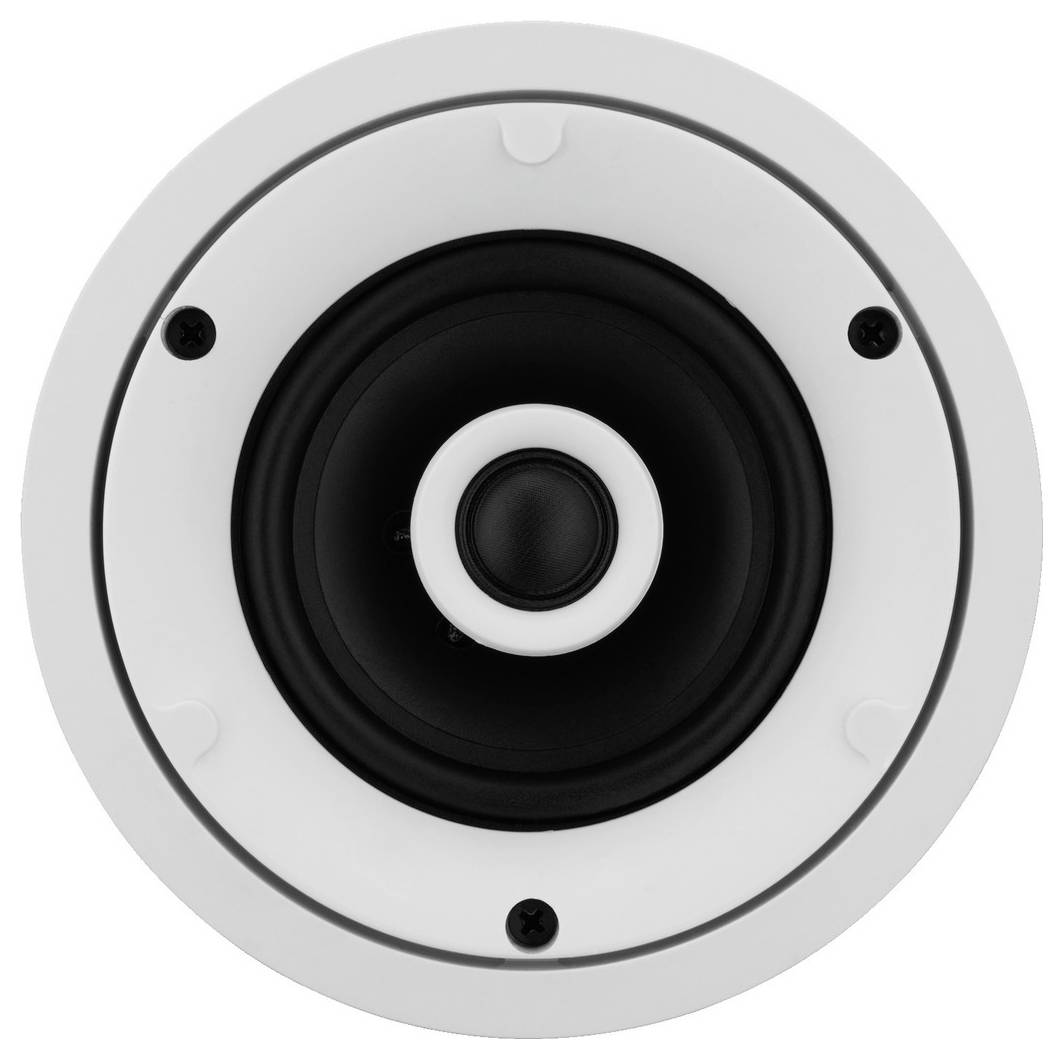

100 V transmission technology or 8 Ω operation Power tapping 100 V (8/4/2/1 W) 2 way design with coaxial dome tweeter 10 cm woofer (4") with waveguide and 20 mm silk dome (3/4") Excellent sound properties Enclosed two shapely metal protection grille for different installation optics Magnetic mounting of the protective grille for wall/ceiling thicknesses 8-30 mm
This text is machine translated.
100 V transmission technology or 8 Ω operation Power tapping 100 V (8/4/2/1 W) 2 way design with coaxial dome tweeter 10 cm woofer (4") with waveguide and 20 mm silk dome (3/4") Excellent sound properties Enclosed two shapely metal protection grille for different installation optics Magnetic mounting of the protective grille for wall/ceiling thicknesses 8-30 mm
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- 100 V or low impedance transmission technology
- Frequency range 70-20000 Hz
- Resonance frequency (fs): 70 Hz
- NOMINAL RATING (RMS) 15 W (8 Ω);8/4/2/1 W (100 V)
- Music load capacity (MAX) 30 W
- Characteristic sound pressure 85 dB/W/m
- Max. Nominal sound pressure 96 dB
- Mounting hole dia. 141 mm.
- Mounting depth: 70 mm
- Dimensions: Ø 158 mm x 72 mm
- Outer diameter: Ø 158 mm
- Width: Ø 158 mm
- Height: Ø 158 mm
- Depth: 70 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weight 0.930 kg
- Packing: 1
- Speaker type 100
- Packaging dimensions (W x H x L) 0.174 x 0.085 x 0.174 m
- Gross weight: 1.08 kg
- Net weight: 0.945 kg
- Front grid: Metal / plastic
