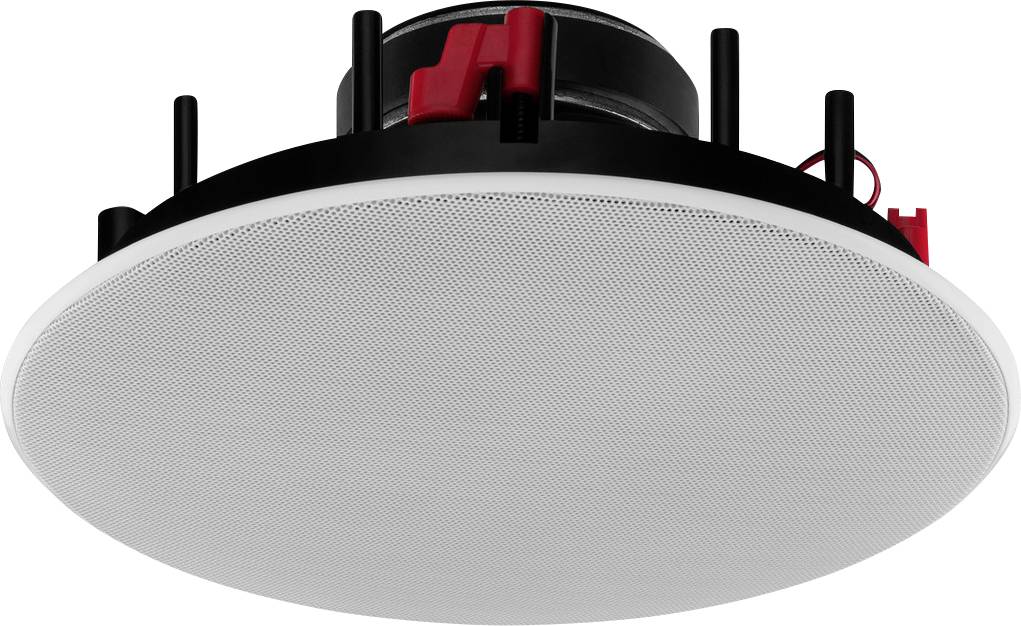

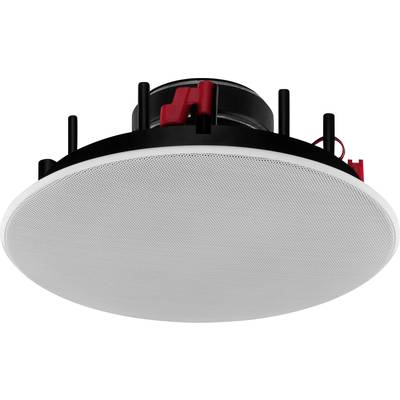

Monacor EDL-62HQ PA ceiling speaker 70 W 100 V White/black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.82 kg
- 100 V or low impedance transmission technology

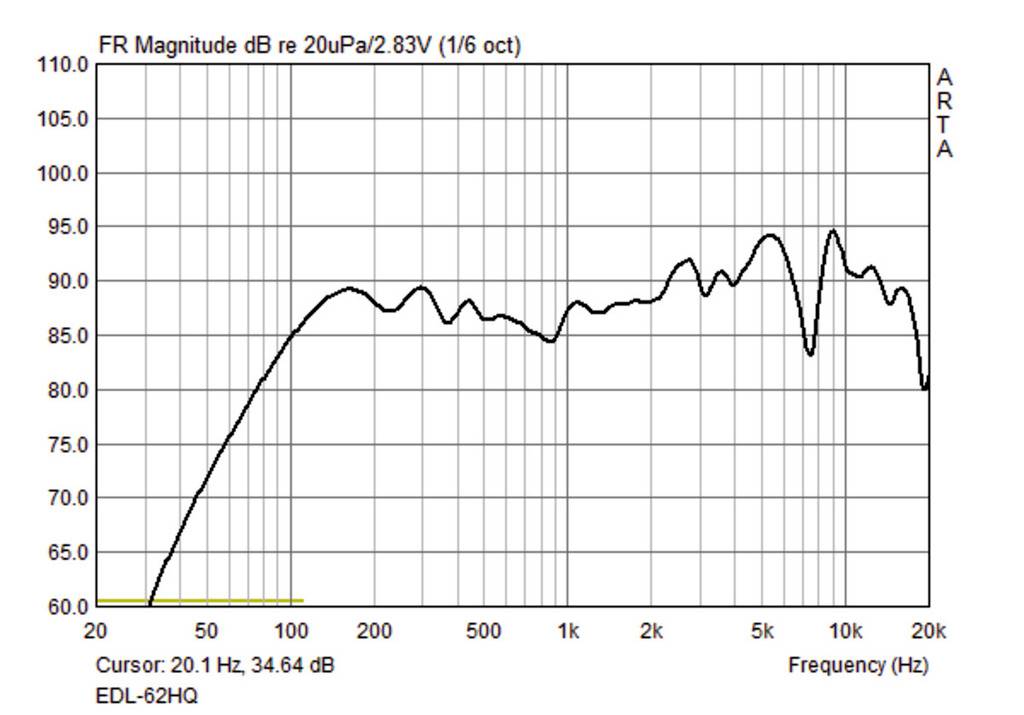

- Frequency range 50-20000 Hz
- NOMINAL CAPACITY (RMS) 35 W (8 Ω)30/16/8/4 W (100 V)
- Characteristic sound pressure 89 dB/W/m

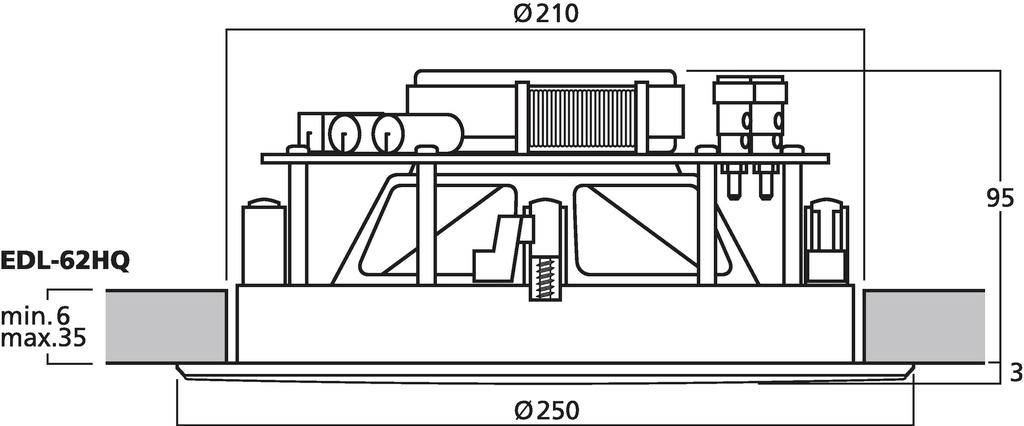

- Installation opening: 210 mm
- Installation depth: 97 mm
- Dimensions 250 x 98 mm
- Outer diameter: 250 mm
- Width 250 mm
- Height: 250 mm
- Depth: 98 mm
- Colour white/black
- Ass. Operating temperature 0-40 °C
- Weight: 1.82 kg
- Speaker type 16
- Gross weight: 2.15 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 60 Hz
- Music load capacity (MAX) 70 W
- Product type
PA ceiling speaker
- RMS capacity
35 W
- Max. load
70 W
- Impedance
8 Ω
- Frequency range
50-20000 Hz
- Operating voltage
100 V
- Factory colour
White/black
- Weight
1.82 kg
- (Ø)
25 cm
- Length
9.8 cm
- Dim
(Ø x H) 25 cm x 25 cm
- Height
25 cm
- Width
25 cm
- Recess depth
97 mm
- Recess diameter
21 mm
- Sound pressure
89 dB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340852 Monacor EDL-62HQ PA ceiling speaker 70 W 100 V White/black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340852 Monacor EDL-62HQ PA ceiling speaker 70 W 100 V White/black 1 pc(s)
Information
Information 3340852 Monacor EDL-62HQ PA ceiling speaker 70 W 100 V White/black 1 pc(s)
Description
PA Hi-Fi Wall and Ceiling Loudspeaker, 30 W

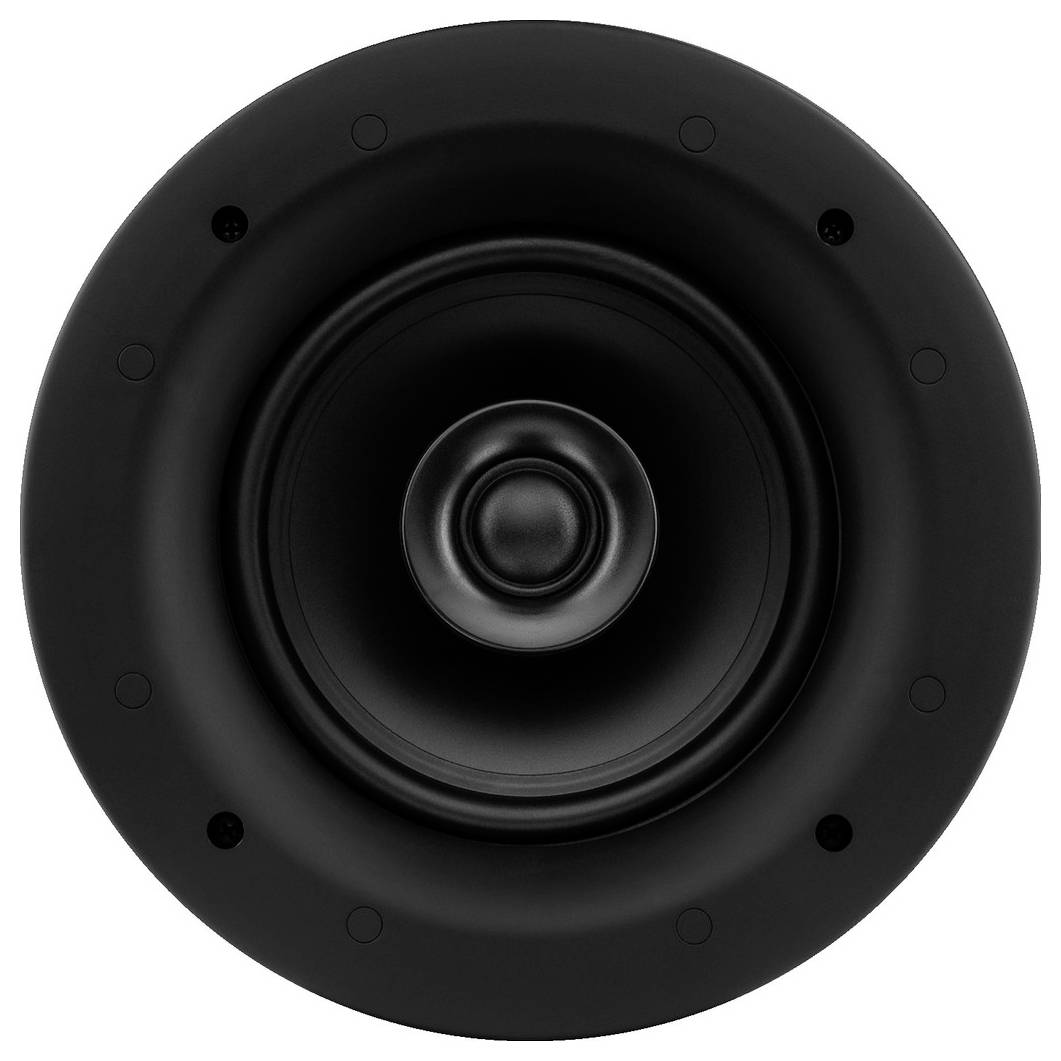

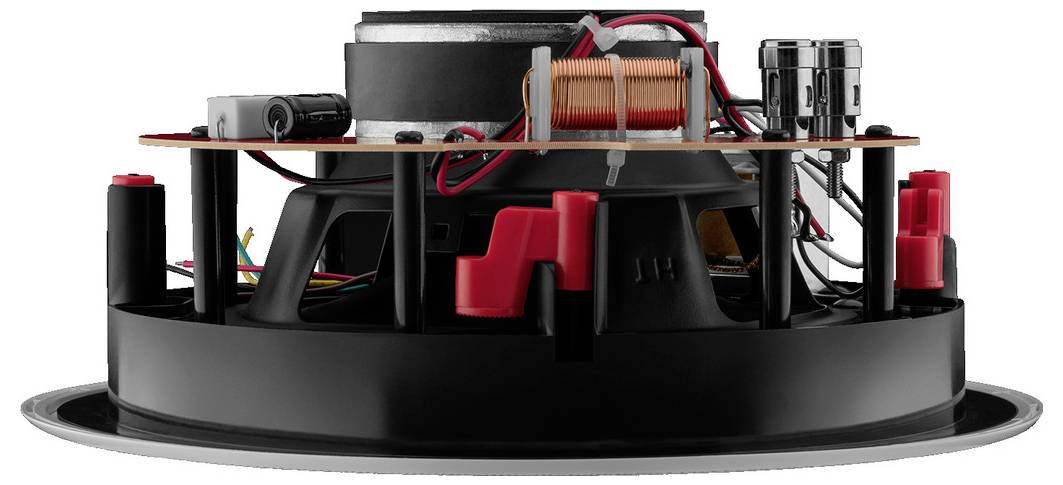

100-V transmission technology or 8-Ω operation 2-way design with coaxial dome tweeter 16-cm woofer (6½") with waveguide and 25-mm silk dome (1") Tweeter tilt able by ball joint Excellent sound properties Attractive, flush-fitting metal protective grille with narrow plastic border Magnetic attachment of the protective grille on the loudspeaker front For wall/ceiling thicknesses of 6-35 mm
This text is machine translated.
100-V transmission technology or 8-Ω operation 2-way design with coaxial dome tweeter 16-cm woofer (6½") with waveguide and 25-mm silk dome (1") Tweeter tilt able by ball joint Excellent sound properties Attractive, flush-fitting metal protective grille with narrow plastic border Magnetic attachment of the protective grille on the loudspeaker front For wall/ceiling thicknesses of 6-35 mm
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- 100 V or low impedance transmission technology
- Frequency range 50-20000 Hz
- Resonance frequency (fs): 60 Hz
- NOMINAL RATING (RMS) 35 W (8 Ω);30/16/8/4 W (100 V)
- Music load capacity (MAX) 70 W
- Characteristic sound pressure 89 dB/W/m
- Mounting hole dia. 210 mm.
- Installation depth: 97 mm
- Dimensions: Ø 250 mm x 98 mm
- Outer diameter: Ø 250 mm
- Width: Ø 250 mm
- Height: Ø 250 mm
- Depth: 98 mm
- Colour white/black
- Ass. Operating temperature 0-40 °C
- Weight: 1.82 kg
- Packing: 1
- Speaker type 16
- Packaging dimensions (W x H x L) 0.27 x 0.13 x 0.27 m
- Gross weight: 2.15 kg
- Net weight: 1.82 kg
