Buy Monacor EDL-70/WS PA ceiling speaker 100 V White 1 pc(s)

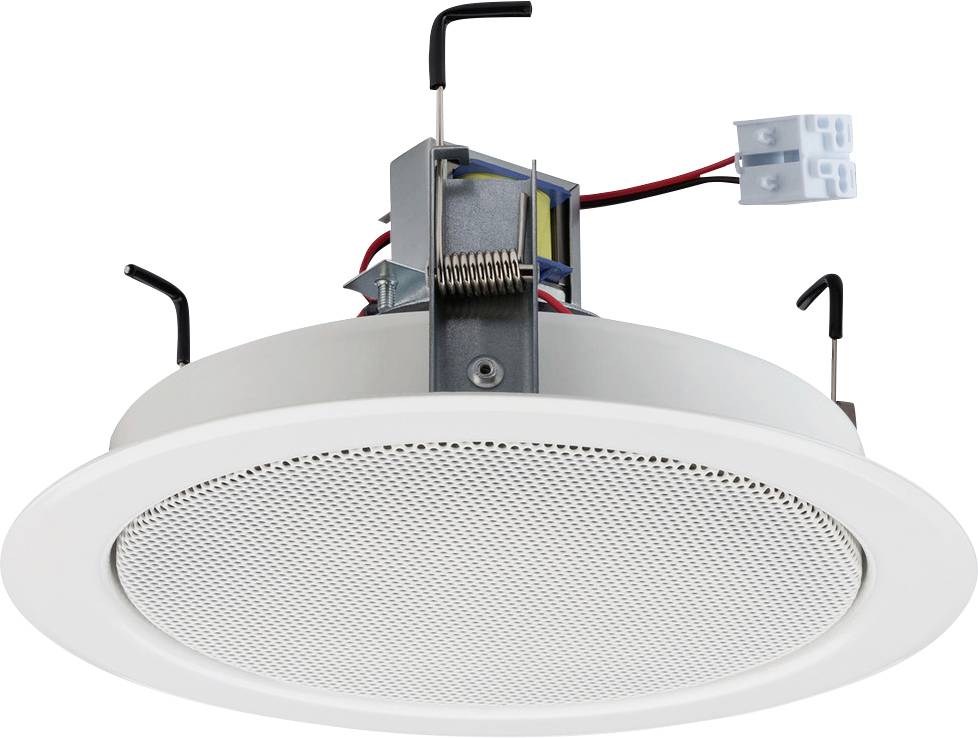

Round ceiling speaker installation, exposed enclosure with cables and mounting brackets, suitable for indoor applications.

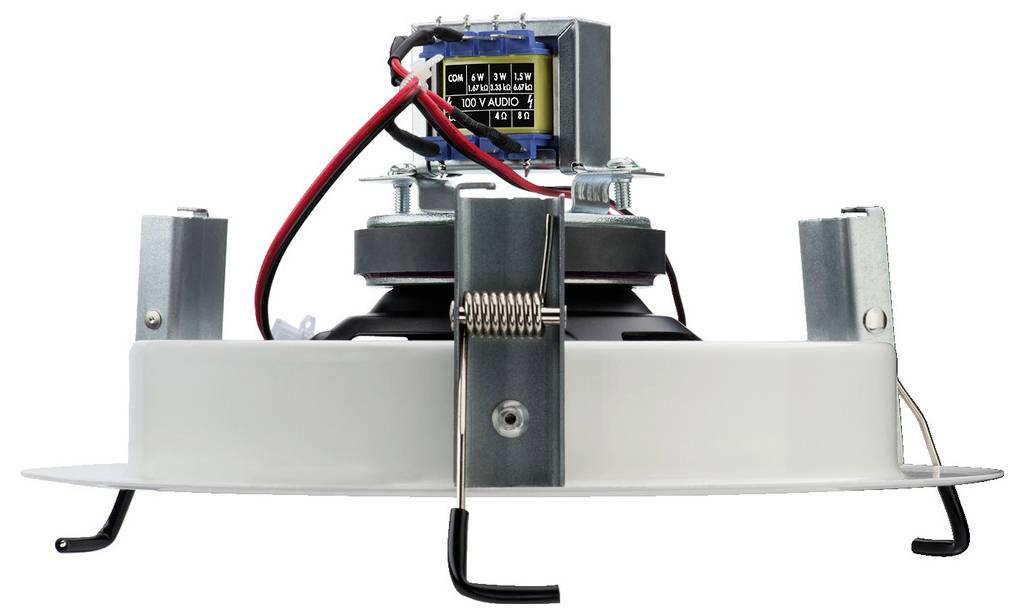

A loudspeaker with exposed wiring and metal mounting brackets, suitable for ceiling installation.

A built-in speaker with its front grille removed reveals its internal components and electrical connections.

Technical drawing of a round LED light fitting (ø195 mm) for ceiling mounting. Dimensions: Diameter 220 mm, Height 104 mm, Installation depth 2-45 mm.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 1.017 kg
Transmission technology 100 V
Frequency range 90-20000 Hz
Nominal load (RMS) 6/3/1.5 W.
Characteristic sound pressure 97 dB/W/m
Installation opening: 195 mm
Installation depth: 100 mm
Dimensions 220 x 104 mm
Outer diameter: 220 mm
Width 220 mm
Height: 220 mm
Depth: 104 mm
Colour: White, RAL9010
Ass. Operating temperature 0-40 °C
Weight 1 kg.
Speaker type 16
Gross weight: 1.127 kg

Product type: PA ceiling speaker

Type: Round

RMS capacity: 6 W

Power levels: 6/3/1.5 W

Max. sound pressure: 97 dB

Features: Ceiling speaker

Frequency range: 90-20000 Hz

Operating voltage: 100 V

Factory colour: White

Material: Metal

Weight: 1 kg

(Ø): 22 cm

Length: 10.4 cm

Dim: (Ø x H) 22 cm x 22 cm

Height: 22 cm

Width: 22 cm

Recess depth: 100 mm

Recess diameter: 19.5 mm

Sound pressure: 97 dB

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340950 Monacor EDL-70/WS PA ceiling speaker 100 V White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3340950 Monacor EDL-70/WS PA ceiling speaker 100 V White 1 pc(s)

Description

PA Ceiling Speakers
With special, 2-piece mounting
100 V transmission technology Snap-in mounting For ceiling thicknesses 2-45 mm wide-band loudspeaker with good speech understanding Wide frequency range Robust metallic design (basket and protective grille)

This text is machine translated.

Features

Transmission technology 100 V
Frequency range 90-20000 Hz
Nominal load (RMS) 6/3/1.5 W.
Characteristic sound pressure 97 dB/W/m
Mounting hole dia. 195 mm.
Installation depth: 100 mm
Dimensions: Ø 220 mm x 104 mm
Outer diameter: Ø 220 mm
Width: Ø 220 mm
Height: Ø 220 mm
Depth: 104 mm
Colour: White
RAL9010
Ass. Operating temperature 0-40 °C
Weight 1 kg.
Packing: 1
Speaker type 16
Packaging dimensions (W x H x L) 0.225 x 0.115 x 0.225 m
Gross weight: 1.127 kg
Net weight: 1.017 kg
