Buy Monacor EDL-82HQ PA ceiling speaker 100 W 100 V White/black 1 pc(s)

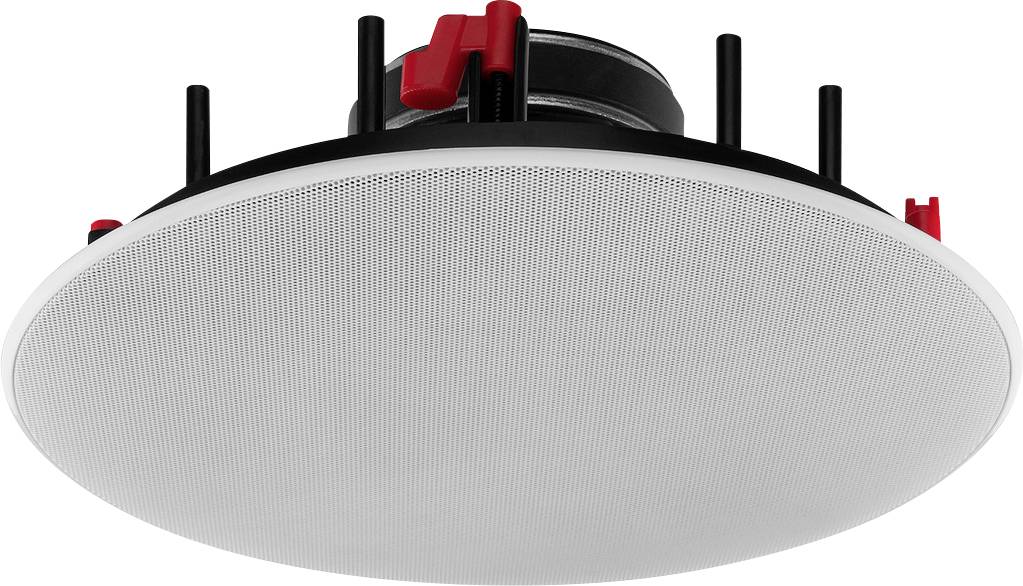

Round ceiling speaker in white with a black border and red mounting elements. Designed for discreet audio playback in interior spaces.

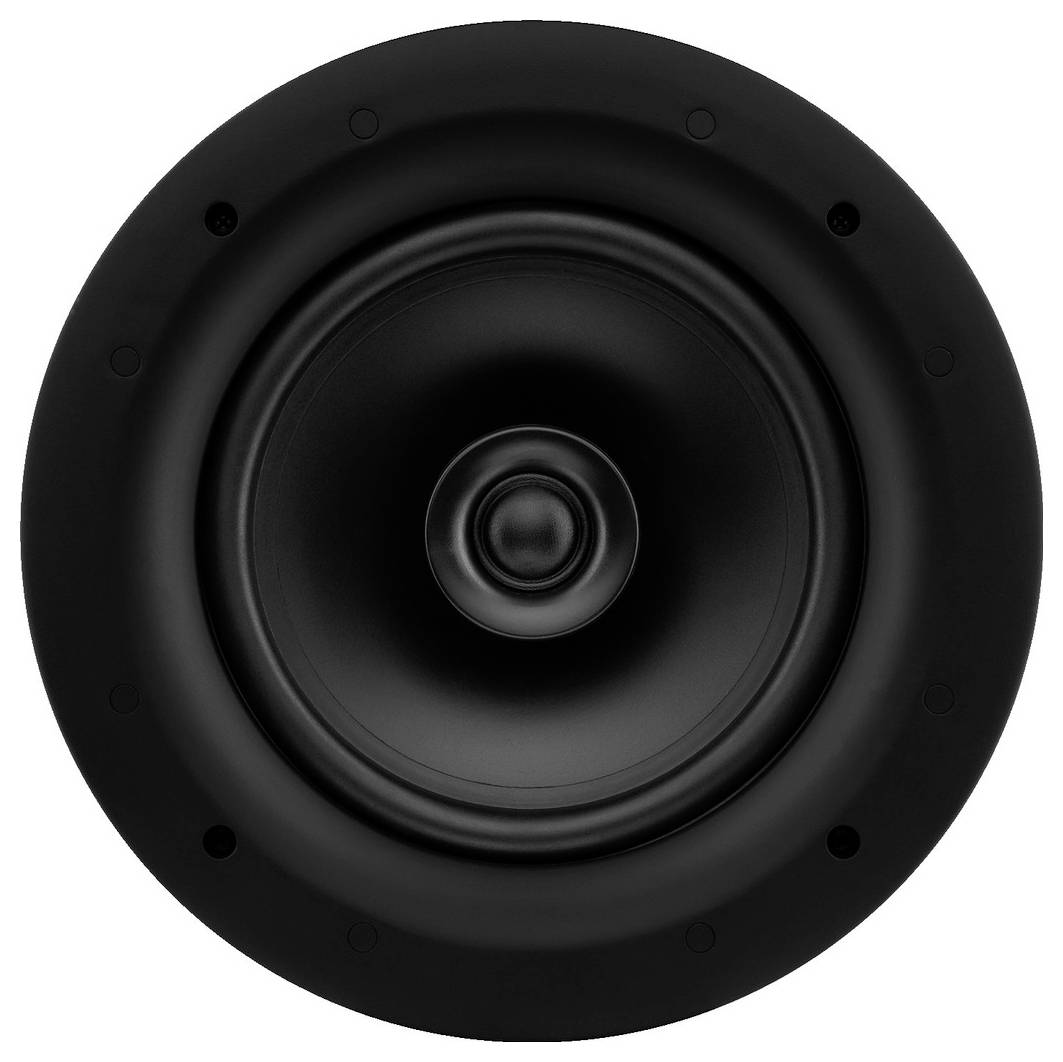

A black speaker in close-up, captured centrally and directly from the front, shows the membrane and outer rings.

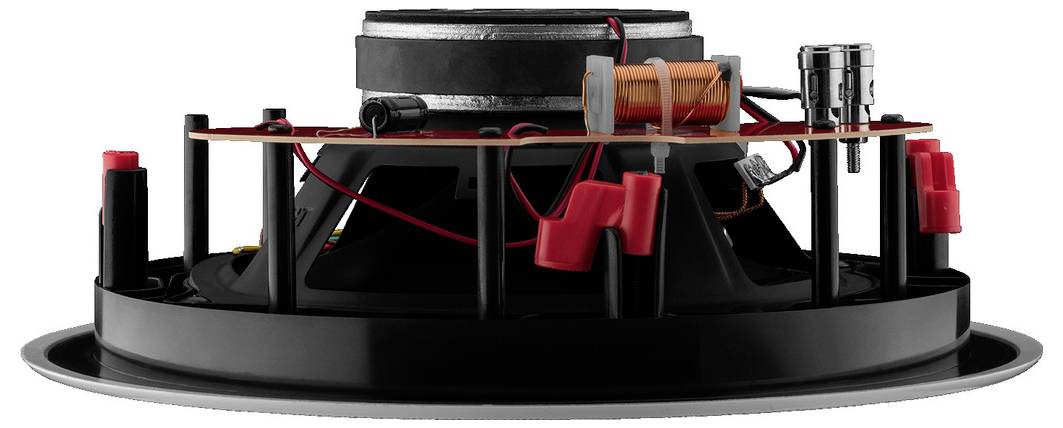

Close-up of a loudspeaker chassis from the side, showing wiring, coil and structural details, without enclosure.

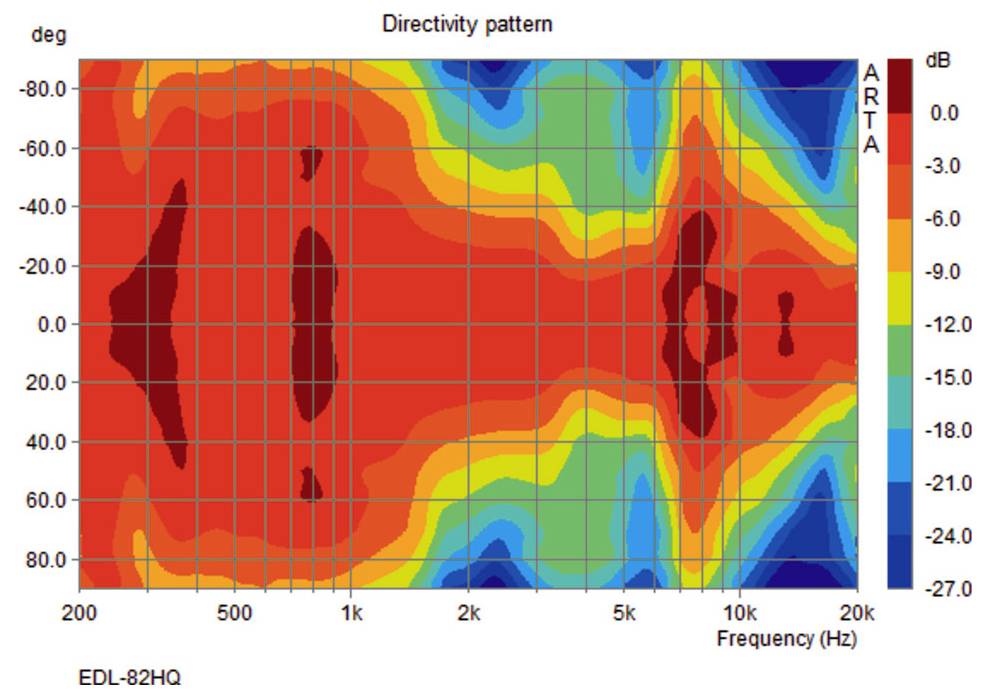

A polar diagram shows the directional characteristics of a speaker from 200 Hz to 20 kHz, based on frequency in Hz and decibels (dB).

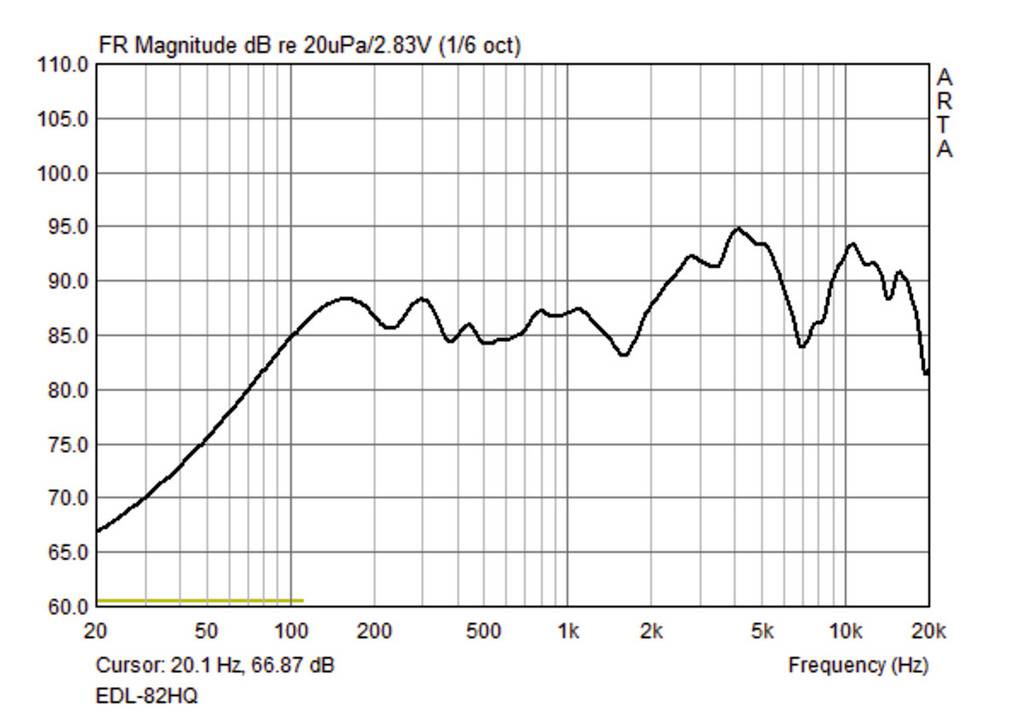

Diagram shows frequency response in dB from 20 Hz to 20 kHz. Key features: rise and various fluctuations, peaks at 4 and 10 kHz.

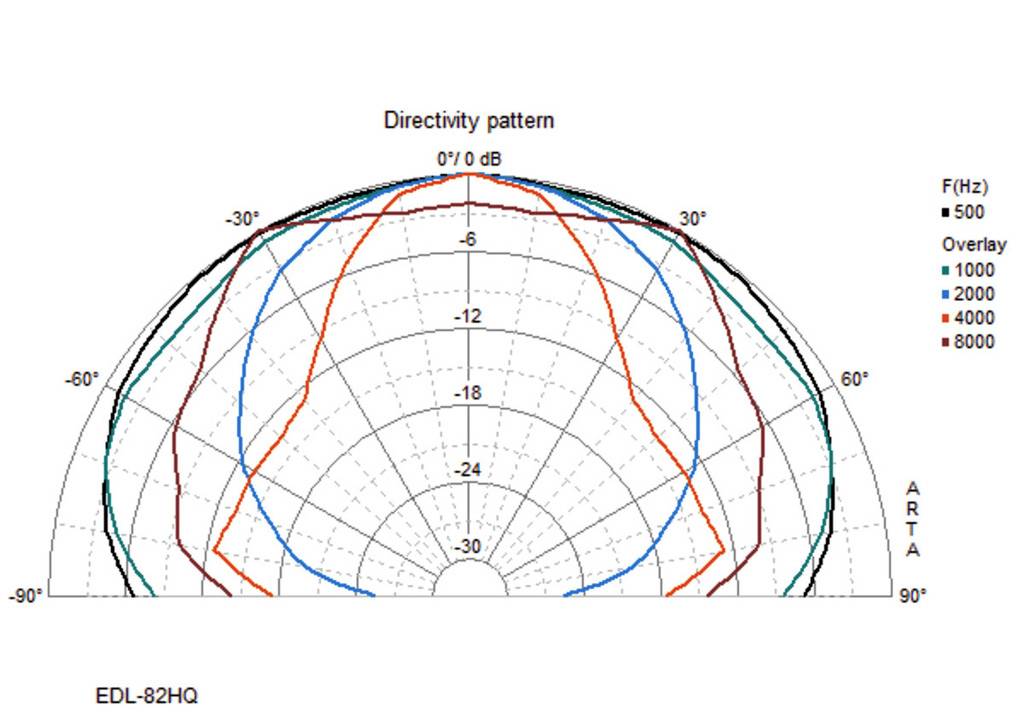

Polar diagram shows directional characteristics for frequencies between 500 and 8000 Hz. Curves illustrate sound distribution at different angles.

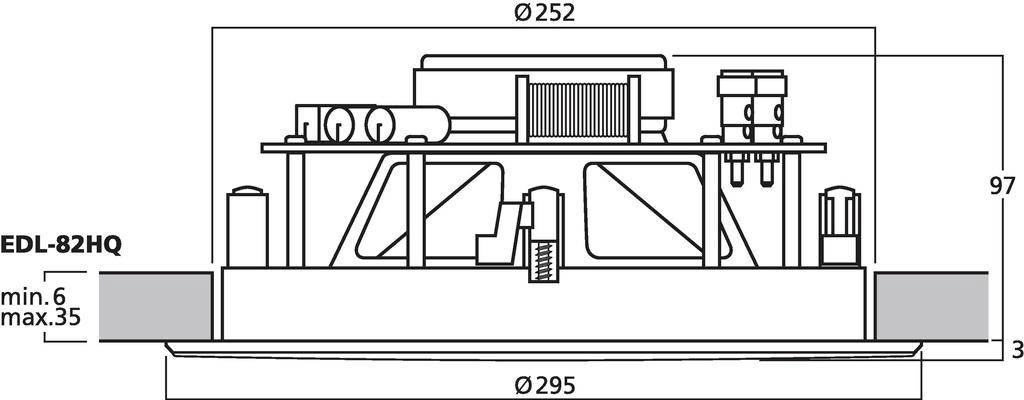

Technical drawing of a round recessed ceiling spotlight, Model EDL-82HQ. Dimensions: Diameter 295 mm, Height 97 mm. Installation depth: 35 mm.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 2.07 kg
100 V or low impedance transmission technology
Frequency range 30-20000 Hz
NOMINAL CAPACITY (RMS) 50 W (8 Ω)30/16/8/4 W (100 V)
Characteristic sound pressure 89 dB/W/m
Installation opening: 252 mm
Installation depth: 99 mm
Dimensions 295 x 100 mm
Outer diameter: 295 mm
Width 295 mm
Height: 295 mm
Depth: 100 mm
Colour white/black
Ass. Operating temperature 0-40 °C
Weight: 2 kg
Speaker type: 200 mm
Gross weight: 2.47 kg
Impedance (Z) 8 Ω
Resonant frequency (fs): 40 Hz
Music load capacity (MAX) 100 W

Product type: PA ceiling speaker

RMS capacity: 50 W

Max. load: 100 W

Impedance: 8 Ω

Frequency range: 30-20000 Hz

Operating voltage: 100 V

Factory colour: White/black

Weight: 2 kg

(Ø): 29.5 cm

Length: 10 cm

Dim: (Ø x H) 29.5 cm x 29.5 cm

Height: 29.5 cm

Width: 29.5 cm

Recess depth: 99 mm

Recess diameter: 25.2 mm

Sound pressure: 89 dB

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340850 Monacor EDL-82HQ PA ceiling speaker 100 W 100 V White/black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3340850 Monacor EDL-82HQ PA ceiling speaker 100 W 100 V White/black 1 pc(s)

Information

Information 3340850 Monacor EDL-82HQ PA ceiling speaker 100 W 100 V White/black 1 pc(s)

Description

PA Hi-Fi Wall and Ceiling Loudspeaker, 30 W
100 V transmission technology or 8 Ω operation 2-way design with coaxial dome tweeter 20 cm woofer (8") with waveguide and 25-mm silk dome (1") Tweeter tilt able by ball joint Excellent sound properties Attractive, flush-fitting metal protective grille with narrow plastic edge Magnetic attachment of the protective grille on the loudspeaker front For wall/ceiling strengths 6-35 mm

This text is machine translated.

Features

Impedance (Z) 8 Ω
100 V or low impedance transmission technology
Frequency range 30-20000 Hz
Resonance frequency (fs): 40 Hz
NOMINAL RATING (RMS) 50 W (8 Ω);30/16/8/4 W (100 V)
Music load capacity (MAX) 100 W
Characteristic sound pressure 89 dB/W/m
Mounting hole dia. 252 mm.
Installation depth: 99 mm
Dimensions: Ø 295 mm x 100 mm
Outer diameter: Ø 295 mm
Width: Ø 295 mm
Height: Ø 295 mm
Depth: 100 mm
Colour white/black
Ass. Operating temperature 0-40 °C
Weight: 2 kg
Packing: 1
Speaker type: 200 mm
Packaging dimensions (W x H x L) 0.315 x 0.135 x 0.315 m
Gross weight: 2.47 kg
Net weight: 2.07 kg
