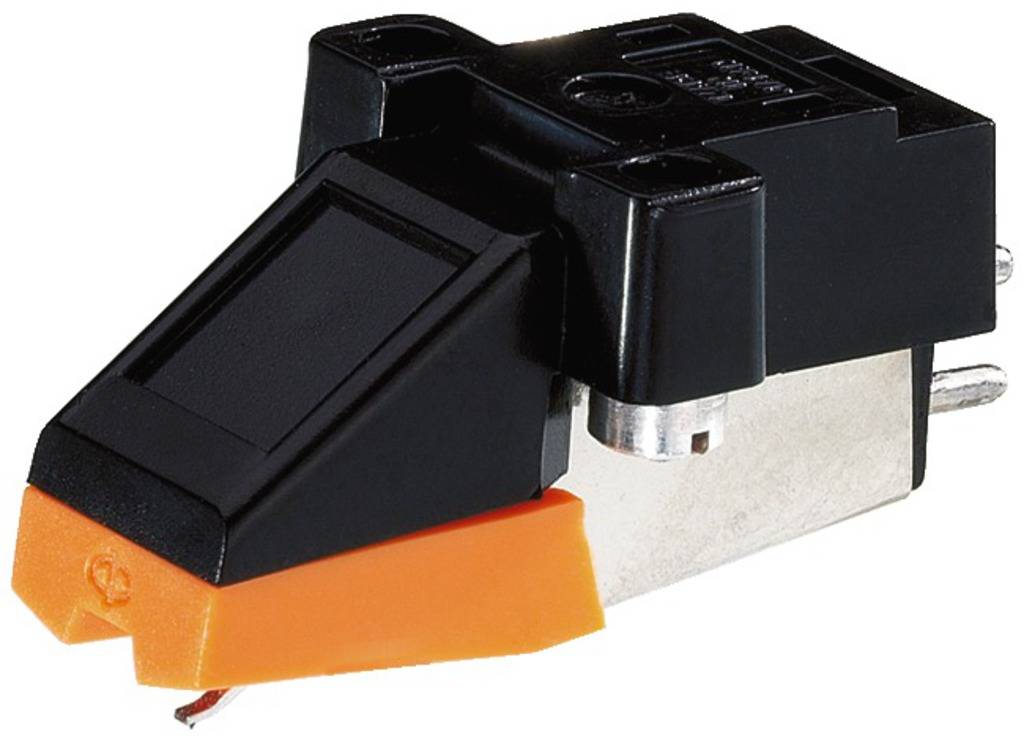

Monacor EN-24 HiFi phono pick-up tapered
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Frequency range 20-20000 Hz
- Output voltage 5 mV/1 kHz, 5 cm/s
- Load impedance: 47 kOhm/200 pF
- Impedance: 1.2 kOhm
- Dc resistance: 300 Ohm
- Channel opportunities:< 2.5 dB/1 kHz
- Channel separation> 24 dB/1 kHz
- Dyn. Compliance Level: 5 µm/mN
- Recommended tracking force: 3g (2.5-3.5 g)
- Spherical stylus: conical 0.6 µm
- Weight: 4.5 g
- Frequency response
20 – 20.000 Hz
- Product type
HiFi phono pick-up
- Output voltage
5 mV
- Tracking force
3 g
- Storage area
2.5-3.5 g
- Factory colour
Black
Orange
- Weight
4.5 g
- Needle type
tapered
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1331655 Monacor EN-24 HiFi phono pick-up tapered
User & Safety Instructions
User & Safety Instructions 1331655 Monacor EN-24 HiFi phono pick-up tapered
Description
Features
- Stereo pick-magnet system (moving magnet) with diamond needle and 1.3-cm-fixing (1/2")
- Suitable for record players from our program (DJP-. . . ) And as a replacement for other hi-fi Record Player
- Support Weight approximately 1.5 g
- This text is machine translated.
