Monacor ESP-134/WS Wall speaker 6 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 2 Piece(s) available
Highlights & Details

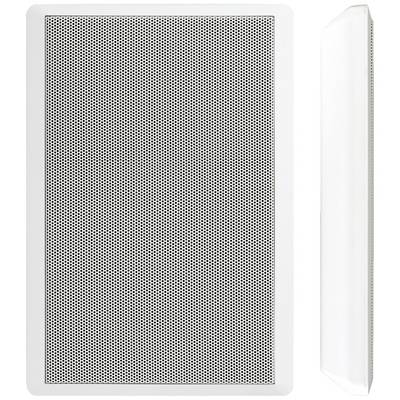

ESP-134/WS ELA Wall Speaker 100 V or 4 Ohm 20/6/3 W in white
- 1x ESP-134/WS ELA Wall Loudspeaker 20/6/3 W
- 100 V transmission technology through audio transformers with 3 and 6 W power taps or 4 Ohm operation (20 W)
- 2-way system with neodymium mid-range speakers and dome tweeter
- White plastic housing with metal protective grillee
- Extremely flat design for discreet wall mounting
Technical specifications
- Product type
Wall speaker
- RMS capacity
20 W
- Max. load
6 W
- Power levels
3 unece.unit.WTT
6 unece.unit.WTT
- Impedance
4 Ω
- Max. sound pressure
104 dB
- Features
2-way
- Frequency range
80-18000 Hz
- Operating voltage
100 V
- Type
Square
- Factory colour
White
- Material
Plastic
- Width
18.5 mm
- Height
27.5 mm
- Length
275 mm
- Depth
3.8 mm
- Weight
1.25 kg
- External width
18.5 mm
- External length
27.5 mm
- Dim
(L x W x H) 275 x 18.5 x 27.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2498882 Monacor ESP-134/WS Wall speaker 6 W 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2498882 Monacor ESP-134/WS Wall speaker 6 W 100 V White 1 pc(s)
Description
ESP-134/WS, ELA Wall Speaker: This ELA Wall Speaker has an excellent sound, although with its total depth of 38 mm it hardly stands out more than a built-in speaker. The loudspeaker can be operated in 100 V transmission technology with 3 or 6 W. as well as in 4 Ohm operation with 20 W power. The unique 2-way system with neodymium mid-range speakers and dome tweeters makes the speaker extremely flat and suitable for discreet wall mounting. The white plastic housing is equipped with a metal protective grillee.
This text is machine translated.
This text is machine translated.
Features
- Active/passive: Passive
- Transmission technology: 100 V or low-impedance
- NOMINAL POWER: 6/3 W (100 V), 20 W (4 Ω)
- Nominal load 6/3 W
- Impedance: 4 Ω
- Frequency range 80-18000 Hz
- System: 2-way
- Number of built-in LS chassis: 2
- Speaker size 130
- Characteristic sound pressure 91 dB/W/m
- Max. Nominal sound pressure 104 dB
- Beam angle horizontal: 100°
- Vertical beam angle 60°
- Housing material: Plastic
- Colour: White
- Mounting device: Suspension at screw head
- Permissible operating temperature: 0-40 °C.
- Dimensions 185 x 275 x 38 mm
- Width 185 mm
- Height: 275 mm
- Depth: 38 mm
- Weight: 1.25 kg
- Inputs: Terminal
- Packaging dimensions (W x H x L): 0.075 x 0.225 x 0.315 m
- Gross weight: 1.375 kg
- Net weight: 1,255 kg
Scope of delivery
- Components: 1x ESP-134/WS
- Number of individual items: 1
