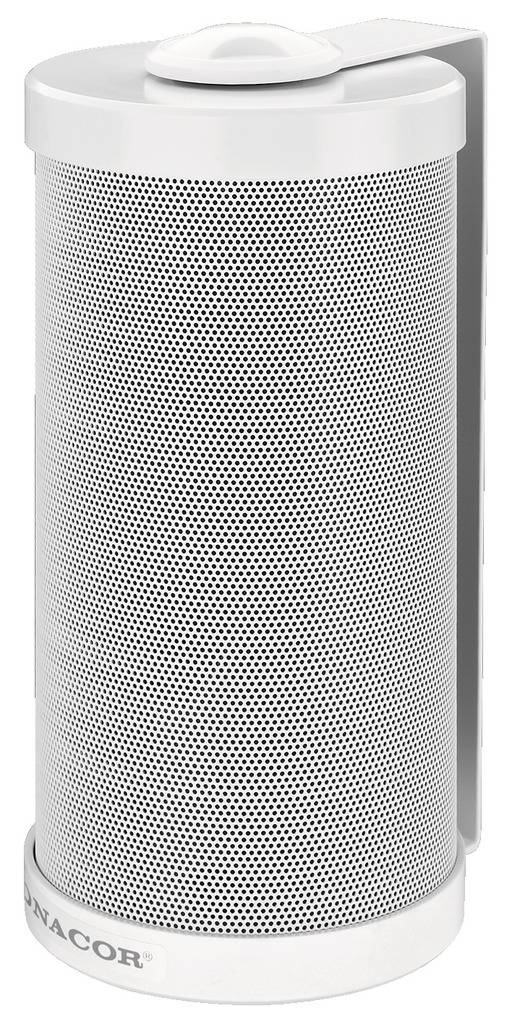

Monacor ESP-315/WS PA speaker cabinet 15 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 75-20000 Hz
- Power capability, 100V: 15/10/5/2.5 WRMS
- Load-carrying capacity, 8 Ohm: 30WMAX/15WRMS
- Avg. Sound pressure (1W/m): 90 dB
- Max. Nominal sound pressure: -
- Speaker Type: -
- Installation opening: -
- Installation depth:
- Permissible operating temperature: 0-40°C
- Dimensions: diameter. 133 mm x 280 mm
- Weight: 2.1 kg
- Miscellaneous: LS-clamp connection
- Product type
PA speaker cabinet
- Operating voltage
100 V
- RMS capacity
15 W
- Max. load
30 W
- Impedance
8 Ω
- Max. sound pressure
90 dB
- Features
2-way
- Material
Plastic
- Length
28.8 cm
- Content
1 pc(s)
- Weight
2.1 kg
- Factory colour
White
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331675 Monacor ESP-315/WS PA speaker cabinet 15 W White 1 pc(s)
Description
Features
- 2-Way ELA Wall Speaker Box
- 100-V Beschallungsbox with very good sound
- 2-way system with 10 x 15 cm mid-woofer and 13-mm dome tweeters
- Power pickups 15/10/5/2.5 W
- Power changeover switch with 8-Ohm-Betriebsstellung
- Can be mounted horizontally and vertically
- Individually adjustable light rays
- Available in black (SW) or white (WS) plastic with correspondingly painted metal grille
- Including wall brackets
- This text is machine translated.
Scope of delivery
- Installation holder
