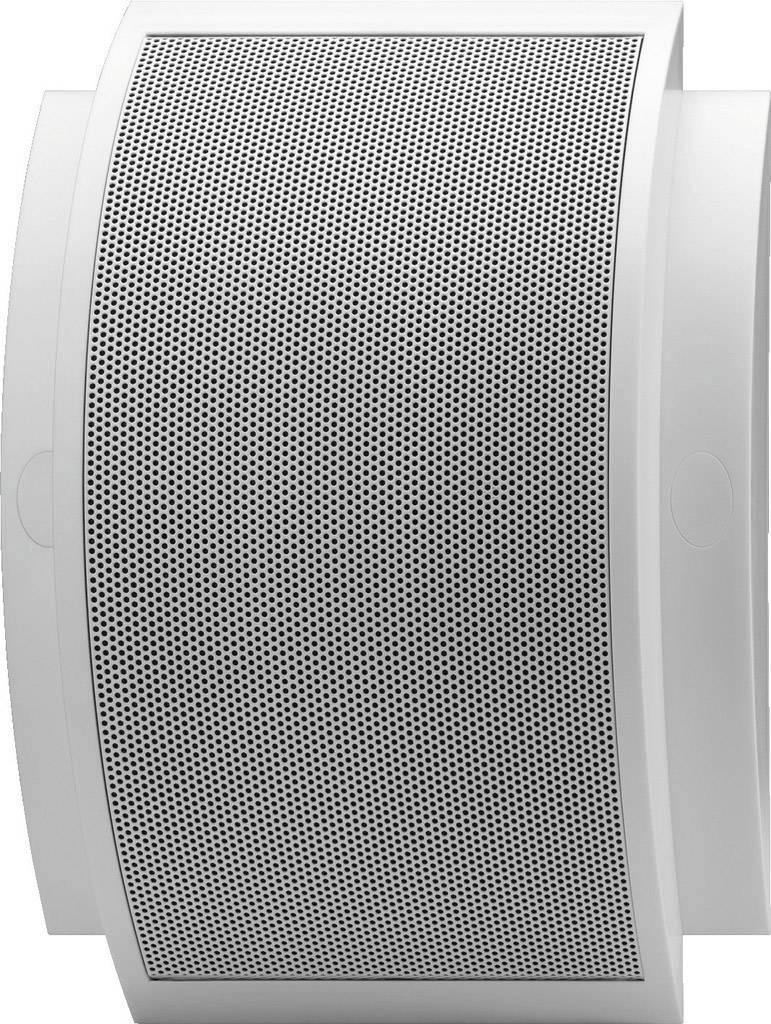

Monacor ESP-62AB/WS PA wall speaker 1.5 W White 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Monacor ESP-62AB/WS ELA Wall Speaker
- EN -54-24 certification
- A/B speaker distribution according to EN 60849
- 100-V transformer technology
Technical specifications
- Product type
PA wall speaker
- Operating voltage
100 V
- RMS capacity
1.5 W
- Max. load
6 W
- Max. sound pressure
101 dB
- Features
Ceiling speaker
- Material
Plastic
- Length
33 cm
- Width
24 cm
- Content
1 pc(s)
- Weight
1.5 kg
- Factory colour
White
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1780959 Monacor ESP-62AB/WS PA wall speaker 1.5 W White 1 pc(s)
Description
The speaker is specially designed for use in PA sound systems designed and can be used as a wall or ceiling loudspeaker can be used. It is equipped with a certification according to EN 54-24 for use in voice alarm systems. The speaker is with two transmitters for use in 100-V systems and has a double voice coil. It is, therefore, suitable for PA systems with A/B wiring according to EN 60849. The selection of the terminals, you can switch between three performance values can be selected.
This text is machine translated.
This text is machine translated.
Features
- EN -54-24 certification
- A/B speaker distribution according to EN 60849
- 100-V transformer technology
- 13-cm wide-band speaker with double voice coil
- Two independent transformers with power taps, each with 6/3/1.5 W
- Connection takes place via 2 ceramic screw terminals inside the casing
- Symmetric shape allows for horizontal and vertical mounting
- Rear open plastic casing with metal front grille.
Scope of delivery
- Screws
- Dowels.
