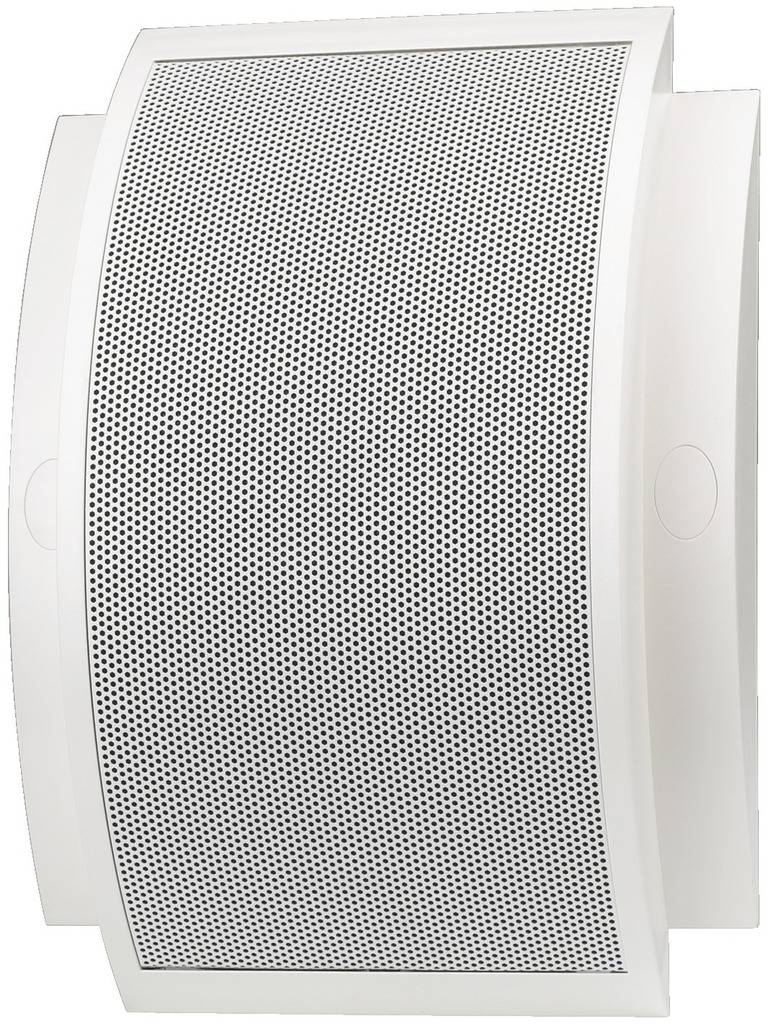

Monacor ESP-63/WS PA ceiling speaker 6 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Monacor ESP-63/WS ELA Wall Speaker
Technical specifications
- Frequency range: 100-2 0000 Hz
- Power capability, 100V: 6/3 WRMS
- Load-carrying capacity, 8 Ohm: -
- Load-carrying capacity, 4 Ohm: -
- Avg. Sound pressure (1W/m): 91 dB
- Max. Nominal sound pressure: 101 dB
- Speaker Type: 130-pack
- Installation opening: -
- Installation depth:
- Permissible operating temperature: 0-40°C
- Dimensions: 240 x 340 x 105 mm
- Weight: 1.7 kg
- Other: 2-way system
- Product type
PA ceiling speaker
- RMS capacity
6 W
- Max. load
6 W
- Power levels
6 W
6/3 W
- Max. sound pressure
101 dB
- Features
2-way
- Operating voltage
100 V
- Type
Square
- Factory colour
White
- Material
Plastic
- Width
240 mm
- Height
340 mm
- Length
340 mm
- Depth
105 mm
- Weight
1.7 kg
- External width
240 mm
- External length
340 mm
- Dim
(L x W x H) 340 x 240 x 340 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331685 Monacor ESP-63/WS PA ceiling speaker 6 W 100 V White 1 pc(s)
Description
Features
- ELA Wall Speaker
- 100-volt transmission technology by audio transformer with 2 power taps
- 2-way system with good sound characteristics
- Design-plastic casing with metal grille
- Closed, screwed-on rear panel
- Horizontal and vertical mounting option
- Mounting screws are supplied
- This text is machine translated.
