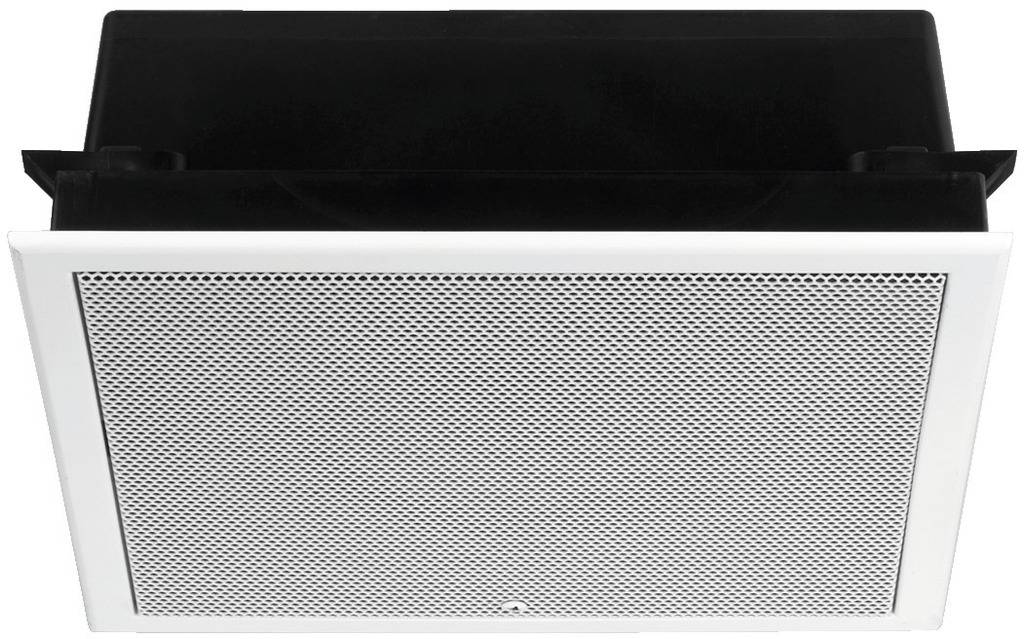

Monacor ESP-8U PA ceiling speaker 6 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Frequency range: 200-17000 Hz
- Power capability, 100V: 6/3/1.5 WRMS
- Load-carrying capacity, 8 Ohm: -
- Avg. Sound pressure (1W/m): -
- Max. Nominal sound pressure: -
- Speaker Type: 200 pcs.
- Installation opening: -
- Installation depth:
- Permissible operating temperature: 0-40°C
- Dimensions: 248 x 248 x 100 mm
- Weight: 1.7 kg
- Other: -
- Product type
PA ceiling speaker
- RMS capacity
6 W
- Max. load
6 W
- Power levels
6/3/1.5 W
- Max. sound pressure
99 dB
- Features
Ceiling speaker
- Operating voltage
100 V
- Type
Square
- Factory colour
White
- Material
Plastic
- Recess width
242 mm
- Recess length
242 mm
- Width
248 mm
- Height
100 mm
- Length
248 mm
- Depth
100 mm
- (Ø)
20 cm
- Weight
1.7 kg
- Dim
(Ø x H) 20 cm x 100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331691 Monacor ESP-8U PA ceiling speaker 6 W 100 V White 1 pc(s)
Description
Features
- Pa wall and ceiling speaker for flush mounting
- 100-volt transmission technology by audio transformer with 3 power taps
- Prasentes sound for a penetration-strong voice playback with very high clarity
- 20-cm speakers with very high efficiency (99 dB/1 W/1 m)
- Plastic flush-mounted shell for flush set in plaster in walls or solid ceiling
- Approx. 242 x 242 x 100 mm necessary wall hole
- Metal front grille with plastic frame
- This text is machine translated.
