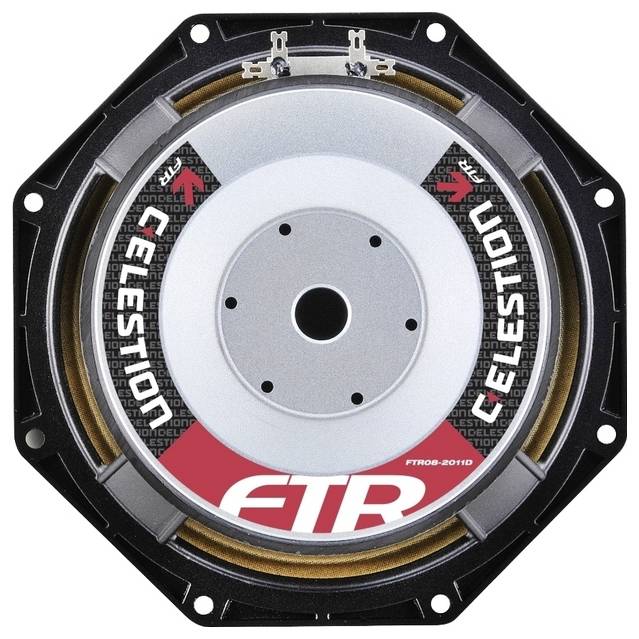

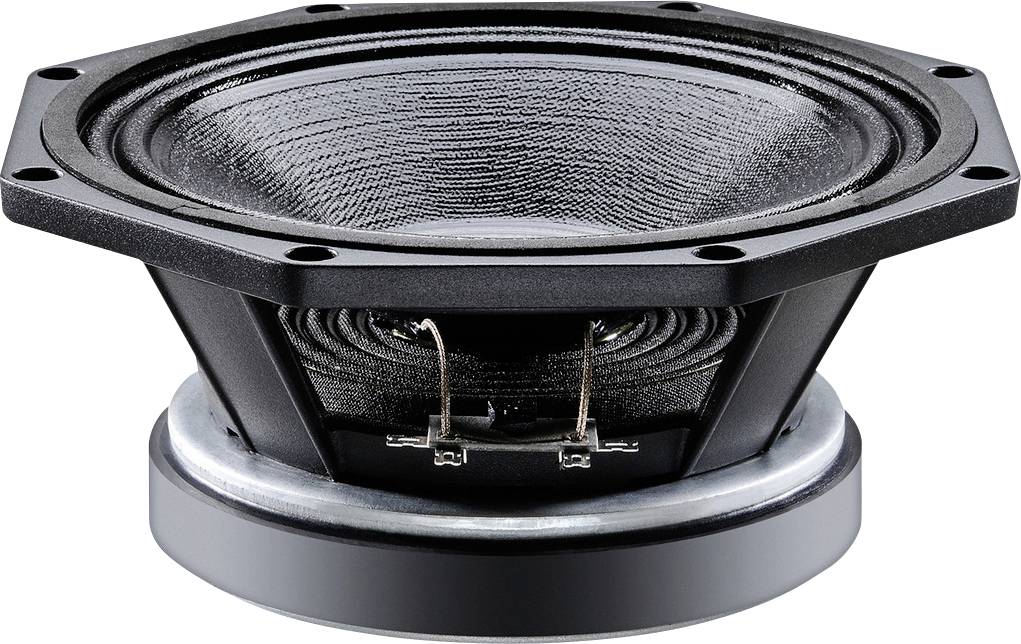

Monacor FTR08-2011D/8 8 inch Mid-range speaker/subwoofer 200 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.6 kg
- Transmission technology: Cable
- Frequency range 70-6000 Hz
- Nominal capacity (RMS) 200 W.
- Characteristic sound pressure 93 dB/W/m
- Installation opening: 187 mm
- Installation depth: 102 mm
- Dimensions 225 x 102 mm
- Outer diameter: 225 mm
- Width 225 mm
- Height: 225 mm
- Depth: 102 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 3.6 kg
- Speaker type 8"
- Gross weight: 4.2 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 86.10 Hz
- Music load capacity (MAX) 400 W
- Voice coil diameter 50 mm
- Hole diameter 210 mm
- Suspension compliance (Cms) 0.12 mm / N
- Moving mass (MMS): 27.75 g
- Mechanical quality (QMS): 2.238
- Electrical quality (QES): 0.5
- Overall quality (Qts): 0.43
- Equivalent volume (Vas): 9.0 l
- Direct current resistance (Re) 5.82 Ω
- Power factor (WxL) 12.71 Tm
- Voice coil former (Le):0.38 mH
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 5.5 mm
- Effective Membrane area (SD): 226.98 cm2
- Magnet weight: 1.2 kg
- Voice coil length 15 mm
- Voice coil material: Copper wire
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
8 inch
- RMS capacity
200 W
- Max. load
400 W
- Min. frequency
70 Hz
- Max. frequency
6000 Hz
- Impedance
8 Ω
- Sound pressure
93 dB
- Recess diameter
18.7 cm
- Recess depth
10.2 cm
- Weight
3.6 kg
- Factory colour
Black
- Frequency range
70 Hz - 6000 Hz
- Depth
10.2 cm
- (Ø)
22.5 cm
- Height
22.5 cm
- Width
22.5 cm
Documents & Downloads
Datasheet
Datasheet 3340913 Monacor FTR08-2011D/8 8 inch Mid-range speaker/subwoofer 200 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340913 Monacor FTR08-2011D/8 8 inch Mid-range speaker/subwoofer 200 W 8 Ω
Description
PA WOOFER, 200 W, 8 Ω
Coated Kevlar membrane for improved weather resistance Copper-sheathed polled reduces the inductive HF-rise Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Coated Kevlar membrane for improved weather resistance Copper-sheathed polled reduces the inductive HF-rise Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 70-6000 Hz
- Resonance frequency (fs): 86.10 Hz
- Nominal capacity (RMS) 200 W.
- Music load capacity (MAX) 400 W
- Characteristic sound pressure 93 dB/W/m
- Suspension (Cms): 0.12 mm/N
- Moving earth (Mms): 27.75 g
- Mechanical quality (Qms): 2.238
- Electrical quality (QES): 0.5
- Overall quality (Qts): 0.43
- Direct current resistance (Re): 5.82 Ω
- Voice coil former (Le): 0.38 mH
- Voice coil diameter: Ø 50 mm
- Linear deflection (XMAX): ± 5.5 mm
- Effective Membrane area (Sd): 226.98 cm²
- Mounting hole dia. 187 mm.
- Installation depth: 102 mm
- Hole diameter: Ø 210 mm
- Dimensions: Ø 225 mm x 102 mm
- Outer diameter: Ø 225 mm
- Width: Ø 225 mm
- Height: Ø 225 mm
- Depth: 102 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 3.6 kg
- Packing: 1
- Speaker type 8"
- Packaging dimensions (W x H x L) 0.229 x 0.15 x 0.229 m
- Gross weight: 4.2 kg
- Net weight: 3.6 kg
