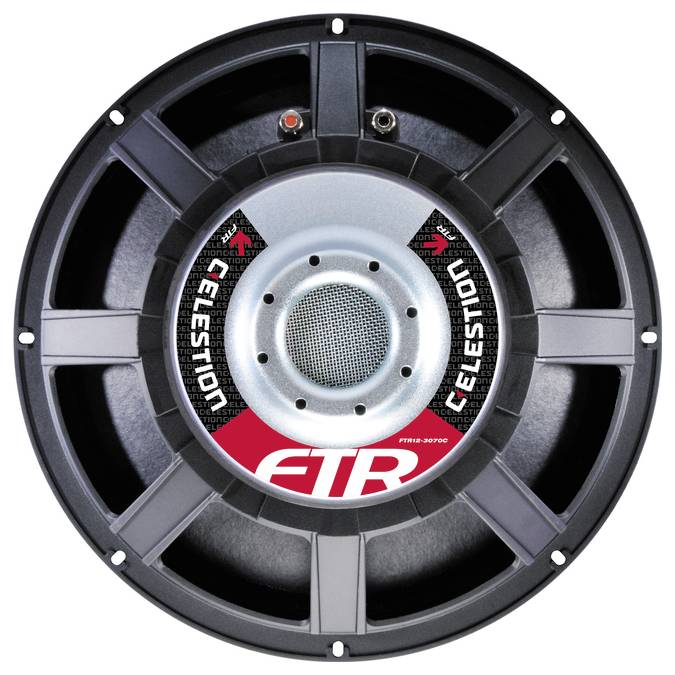

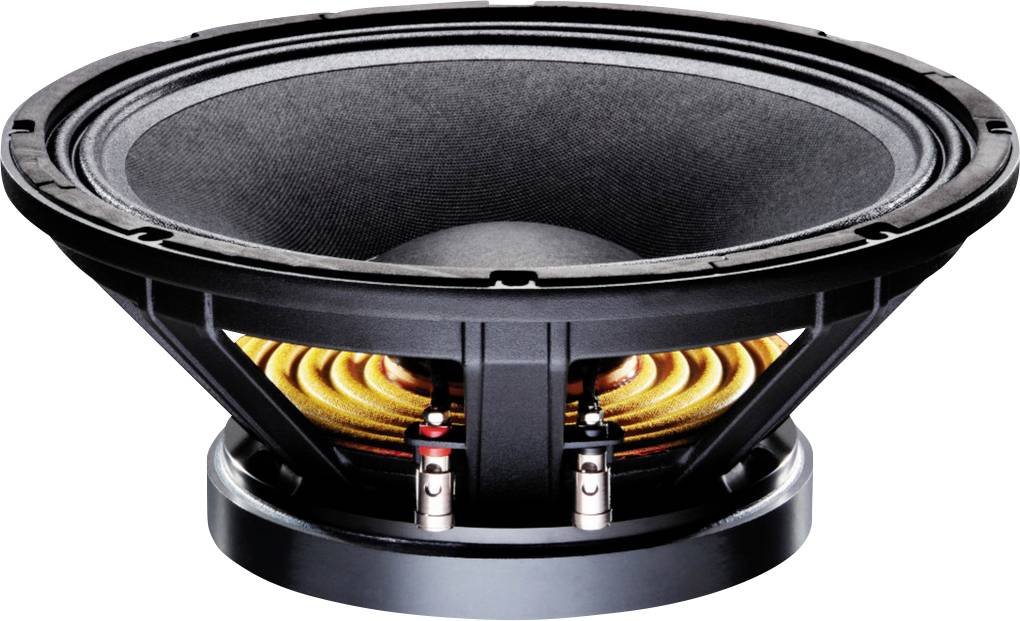

Monacor FTR12-3070C/8 12 inch Mid-range speaker/subwoofer 350 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 6.2 kg
- Transmission technology: Cable

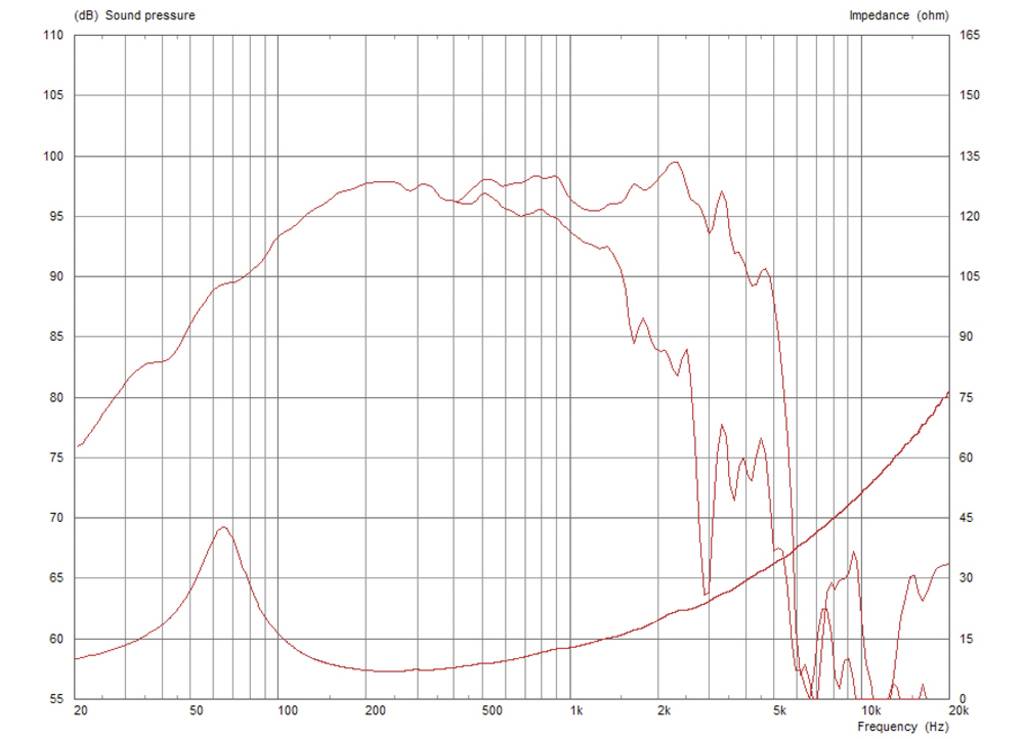

- Frequency range 40-5000 Hz
- Nominal capacity (RMS) 350 W.
- Characteristic sound pressure 96 dB/W/m
- Installation opening: 286 mm
- Installation depth: 102 mm
- Dimensions 318 x 102 mm
- Outer diameter: 318 mm
- Width 318 mm
- Height: 318 mm
- Depth: 102 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 6.2 kg
- Speaker type 12"
- Gross weight: 7.3 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 65.10 Hz
- Music load capacity (MAX) 700 W
- Voice coil diameter 75 mm
- Hole diameter 298-304 mm
- Suspension compliance (Cms) 0.11 mm / N
- Moving mass (MMS): 54.61 g
- Mechanical quality (QMS): 2.804
- Electrical quality (QES): 0.362
- Overall quality (Qts): 0.321
- Equivalent volume (Vas): 43.7 l
- Direct current resistance (Re) 5.59 Ω
- Power factor (WxL) 18.58 Tm
- Voice coil former (Le):1.09 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 5.5 mm
- Effective Membrane area (SD): 530.93 cm2
- Magnet weight: 2.3 kg
- Voice coil length 16 mm
- Voice coil material: Copper wire
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
12 inch
- RMS capacity
350 W
- Max. load
700 W
- Min. frequency
40 Hz
- Max. frequency
5000 Hz
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
28.6 cm
- Recess depth
10.2 cm
- Weight
6.2 kg
- Factory colour
Black
- Frequency range
40 Hz - 5000 Hz
- Depth
10.2 cm
- (Ø)
31.8 cm
- Height
31.8 cm
- Width
31.8 cm
Documents & Downloads
Datasheet
Datasheet 3340901 Monacor FTR12-3070C/8 12 inch Mid-range speaker/subwoofer 350 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340901 Monacor FTR12-3070C/8 12 inch Mid-range speaker/subwoofer 350 W 8 Ω
Description
PA MID-RANGE SPEAKER, 350 W, 8 Ω
Glass-fiber reinforced paper diaphragm with weather-proof impregnation Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Glass-fiber reinforced paper diaphragm with weather-proof impregnation Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 40-5000 Hz
- Resonance frequency (fs): 65.10 Hz
- Nominal capacity (RMS) 350 W.
- Music load capacity (MAX) 700 W
- Characteristic sound pressure 96 dB/W/m
- Suspension (Cms): 0.11 mm/N
- Moving earth (Mms): 54.61 g
- Mechanical quality (Qms): 2.804
- Electrical quality (QES): 0.362
- Overall quality (Qts): 0.321
- Direct current resistance (Re): 5.59 Ω
- Voice coil former (Le): 1.09 mH
- Voice coil diameter: Ø 75 mm
- Linear deflection (XMAX): ± 5.5 mm
- Effective Membrane area (Sd): 530.93 cm²
- Mounting hole dia. 286 mm.
- Installation depth: 102 mm
- Hole diameter: Ø 298-304 mm
- Dimensions: Ø 318 mm x 102 mm
- Outer diameter: Ø 318 mm
- Width: Ø 318 mm
- Height: Ø 318 mm
- Depth: 102 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 6.2 kg
- Packing: 1
- Speaker type 12"
- Packaging dimensions (W x H x L) 0.356 x 0.203 x 0.356 m
- Gross weight: 7.3 kg
- Net weight: 6.2 kg
