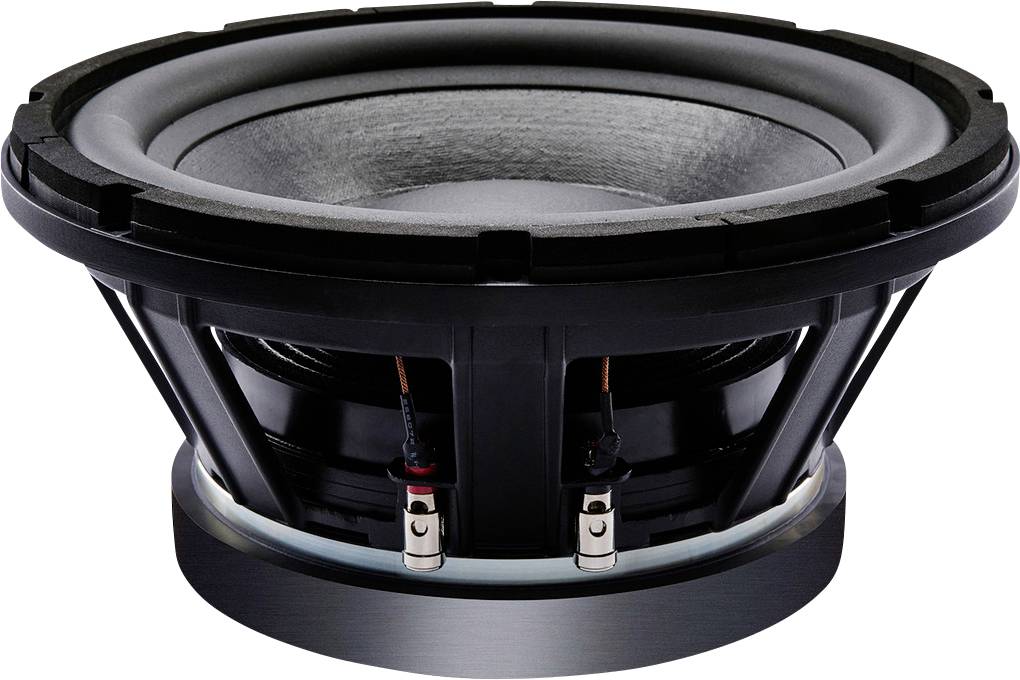

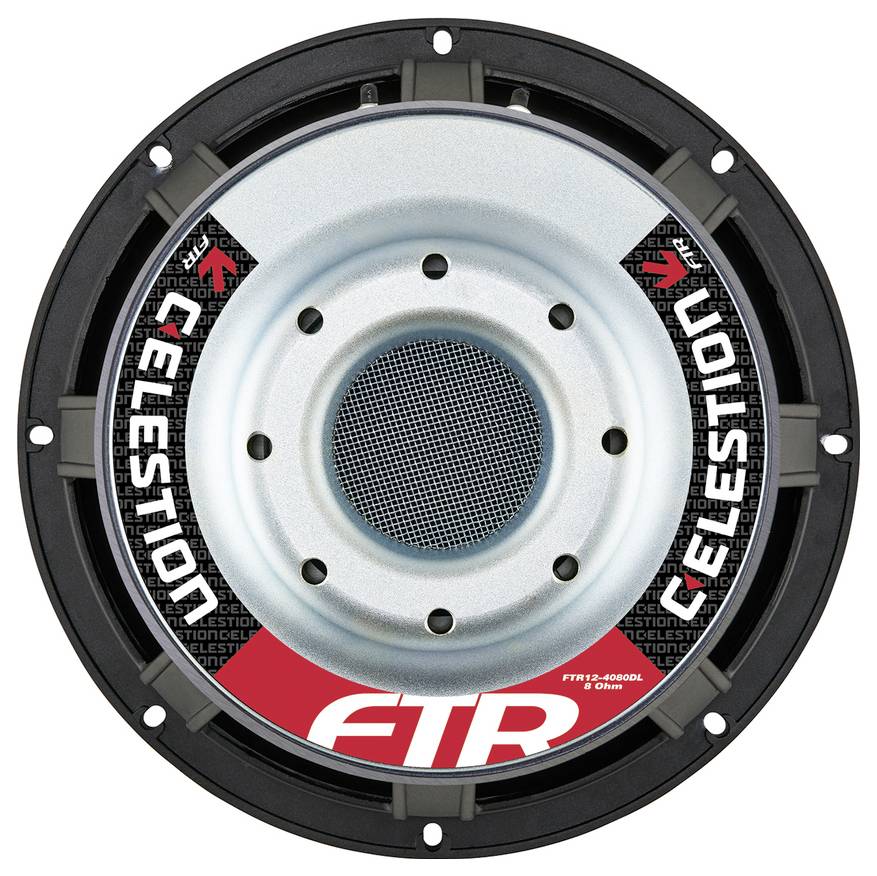

Monacor FTR12-4080DL/8 12 inch PA subwoofer 700 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 10 kg
- Transmission technology: Cable
- Frequency range 20-300 Hz
- Nominal capacity (RMS) 700 W.
- Characteristic sound pressure 88 dB/W/m
- Installation opening: 282 mm
- Installation depth: 169 mm
- Dimensions 313 x 169 mm
- Outer diameter: 313 mm
- Width 313 mm
- Height: 313 mm
- Depth: 169 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 10.2 kg
- Speaker type 12"
- Gross weight: 11.5 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 28.90 Hz
- Music load capacity (MAX) 1400 W
- Voice coil diameter 100 mm
- Hole diameter 291-301 mm
- Suspension compliance (Cms) 0.17 mm / N
- Moving mass (MMS): 176.07 g
- Mechanical quality (QMS): 2.466
- Electrical quality (QES): 0.345
- Overall quality (Qts): 0.303
- Equivalent volume (Vas): 68.6 l
- Direct current resistance (Re) 6.24 Ω
- Power factor (WxL) 24.05 Tm
- Voice coil former (Le):2.07 mH
- Voice coil former: Aluminium
- Linear deflection (XMAX): ± 13.6 mm
- Effective Membrane area (SD): 550.93 cm2
- Magnet weight: 3.6 kg
- Voice coil length 32 mm
- Voice coil material: Copper wire
- Product type
PA subwoofer
- Speaker size (inch)
12 inch
- RMS capacity
700 W
- Max. load
1400 W
- Min. frequency
20 Hz
- Max. frequency
300 Hz
- Impedance
8 Ω
- Sound pressure
88 dB
- Recess diameter
28.2 cm
- Recess depth
16.9 cm
- Weight
10.2 kg
- Factory colour
Black
- Frequency range
20 Hz - 300 Hz
- Depth
16.9 cm
- Height
31.3 cm
- Width
31.3 cm
Documents & Downloads
Datasheet
Datasheet 3340893 Monacor FTR12-4080DL/8 12 inch PA subwoofer 700 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340893 Monacor FTR12-4080DL/8 12 inch PA subwoofer 700 W 8 Ω
Description
PA SUBWOOFER, 700 W, 8 Ω
Glass fiber reinforced paper diaphragm with weather proof impregnation Optimized double suspension Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Glass fiber reinforced paper diaphragm with weather proof impregnation Optimized double suspension Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 20-300 Hz
- Resonance frequency (fs): 28.90 Hz
- Nominal capacity (RMS) 700 W.
- Music load capacity (MAX) 1400 W
- Characteristic sound pressure 88 dB/W/m
- Suspension (Cms): 0.17 mm/N
- Moving earth (Mms): 176.07 g
- Mechanical quality (Qms): 2.466
- Electrical quality (QES): 0.345
- Overall quality (Qts): 0.303
- Direct current resistance (Re): 6.24 Ω
- Voice coil former (Le): 2.07 mH
- Voice coil diameter: Ø 100 mm
- Voice coil length 32 mm
- Voice coil material: Copper wire
- Voice coil former: Aluminium
- Linear deflection (XMAX): ± 13.6 mm
- Effective Membrane area (Sd): 550.93 cm²
- Mounting hole dia. 282 mm.
- Installation depth: 169 mm
- Hole diameter: Ø 291-301 mm
- Dimensions: Ø 313 mm x 169 mm
- Outer diameter: Ø 313 mm
- Width: Ø 313 mm
- Height: Ø 313 mm
- Depth: 169 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 10.2 kg
- Packing: 1
- Speaker type 12"
- Packaging dimensions (W x H x L) 0.356 x 0.2 x 0.356 m
- Gross weight: 11.5 kg
- Net weight: 10 kg
