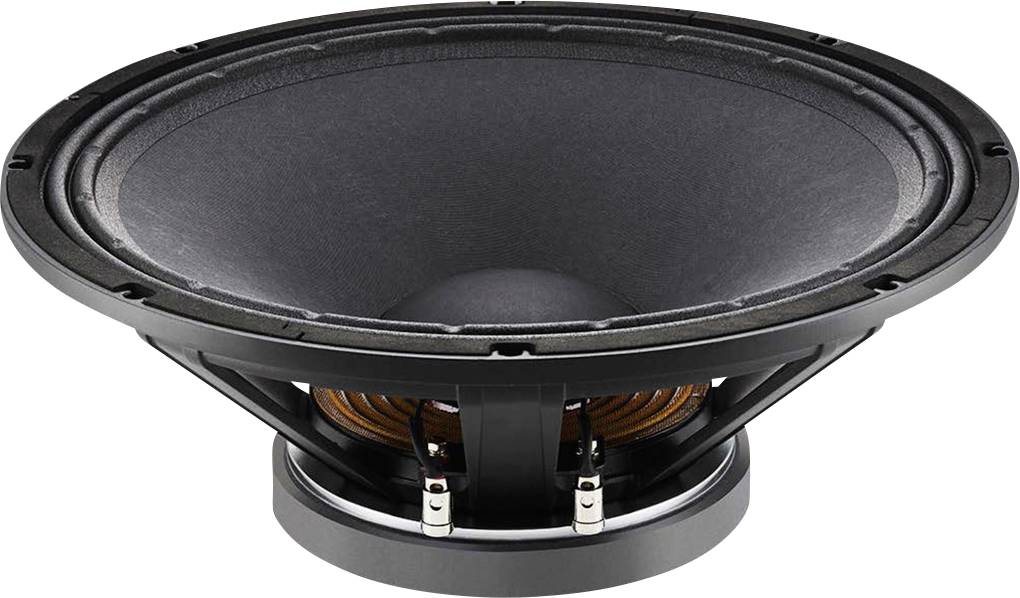

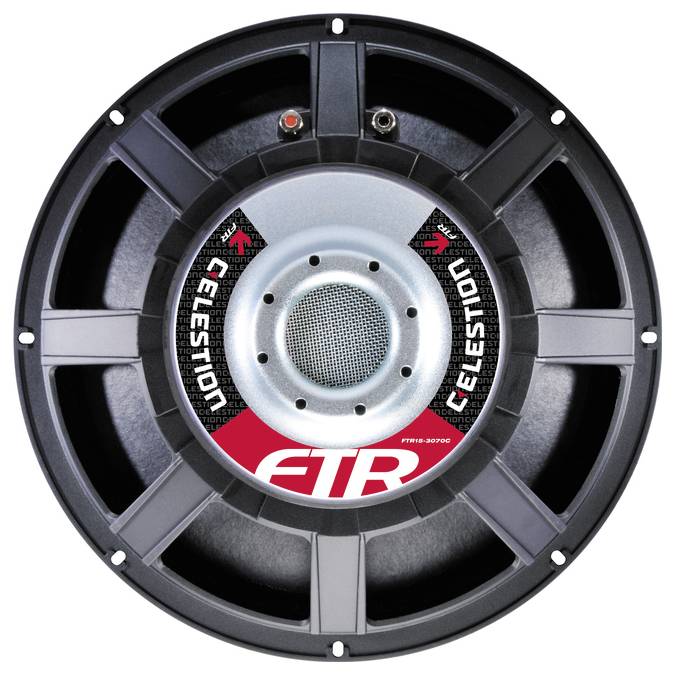

Monacor FTR15-3070C/8 15 inch PA subwoofer 400 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 5.82 kg
- Transmission technology: Cable
- Frequency range 40-4000 Hz
- Nominal capacity (RMS) 400 W.
- Characteristic sound pressure 99 dB/W/m
- Installation opening: 351 mm
- Installation depth: 158 mm
- Dimensions 385 x 158 mm
- Outer diameter: 385 mm
- Width 385 mm
- Height: 385 mm
- Depth: 158 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5.82 kg
- Speaker type 15"
- Gross weight: 7.32 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 41.4 Hz
- Music load capacity (MAX) 800 W
- Voice coil diameter 75 mm
- Hole diameter 365-375 mm
- Suspension compliance (Cms) 0.18 mm / N
- Moving mass (MMS): 81.73 g
- Mechanical quality (QMS): 3.51
- Electrical quality (QES): 0.429
- Overall quality (Qts): 0.382
- Equivalent volume (Vas): 187.6 l
- Direct current resistance (Re) 6.07 Ω
- Power factor (WxL) 17.33 Tm
- Voice coil former (Le):0.59 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 5.5 mm
- Effective Membrane area (SD): 855.3 cm2
- Magnet weight: 2.3 kg
- Voice coil length 16 mm
- Voice coil material: Copper wire
- Product type
PA subwoofer
- Speaker size (inch)
15 inch
- RMS capacity
400 W
- Max. load
800 W
- Min. frequency
40 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
99 dB
- Recess diameter
35.1 cm
- Recess depth
15.8 cm
- Weight
5.82 kg
- Factory colour
Black
- Frequency range
40 Hz - 4000 Hz
- Depth
15.8 cm
- Height
38.5 cm
- Width
38.5 cm
Documents & Downloads
Datasheet
Datasheet 3340899 Monacor FTR15-3070C/8 15 inch PA subwoofer 400 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340899 Monacor FTR15-3070C/8 15 inch PA subwoofer 400 W 8 Ω
Description
PA SUBWOOFER, 400 W, 8 Ω
Glass-fiber reinforced paper diaphragm with weather-proof impregnation Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Glass-fiber reinforced paper diaphragm with weather-proof impregnation Ventilated magnet arrangement for dynamic heat dissipation
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 40-4000 Hz
- Resonance frequency (fs): 41.4 Hz
- Nominal capacity (RMS) 400 W.
- Music load capacity (MAX) 800 W
- Characteristic sound pressure 99 dB/W/m
- Suspension (Cms): 0.18 mm/N
- Moving earth (Mms): 81.73 g
- Mechanical quality (Qms): 3.51
- Electrical quality (QES): 0.429
- Overall quality (Qts): 0.382
- Equivalent volume (Vas): 187.6 l
- Direct current resistance (Re): 6.07 Ω
- Power factor (WxL) 17.33 Tm
- Voice coil former (Le): 0.59 mH
- Voice coil diameter: Ø 75 mm
- Voice coil material: Copper wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 5.5 mm
- Effective Membrane area (Sd): 855.3 cm²
- Mounting hole dia. 351 mm.
- Installation depth: 158 mm
- Hole diameter: Ø 365-375 mm
- Dimensions: Ø 385 mm x 158 mm
- Outer diameter: Ø 385 mm
- Width: Ø 385 mm
- Height: Ø 385 mm
- Depth: 158 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5.82 kg
- Packing: 1
- Speaker type 15"
- Packaging dimensions (W x H x L) 0.432 x 0.21 x 0.432 m
- Gross weight: 7.32 kg
- Net weight: 5.82 kg
