Monacor FTX0617/8 6.5 inch Subwoofer 150 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.28 kg
- Transmission technology: Cable

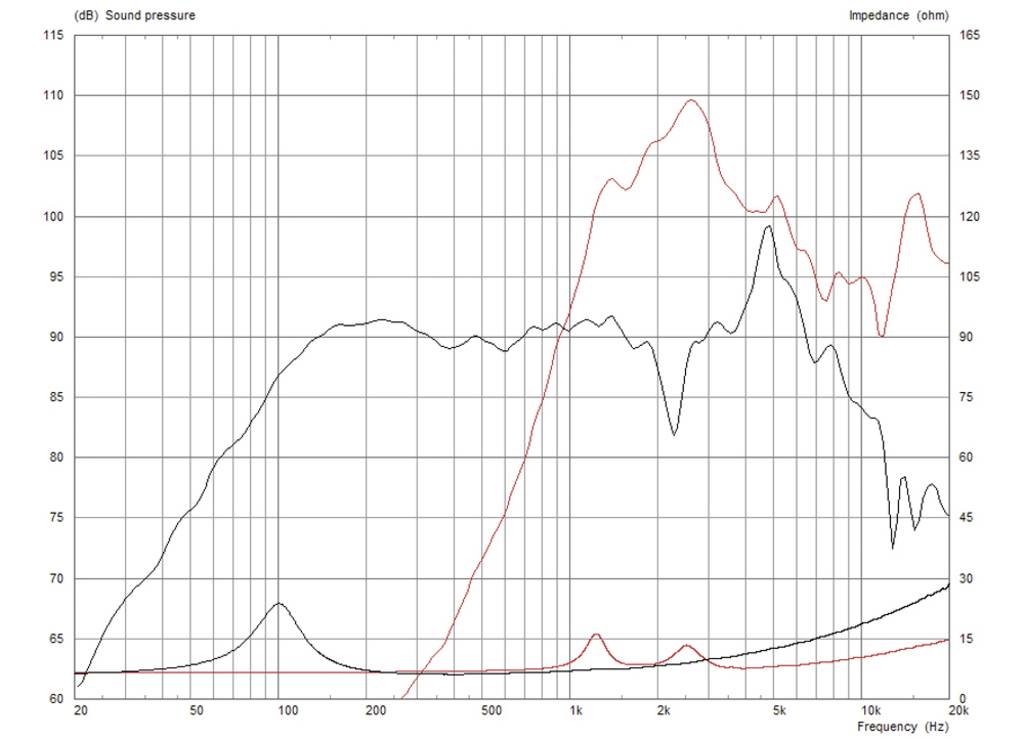

- Frequency range: 100-6000 Hz (low frequency)1500-20000 Hz (high frequency)
- RMS: 150 W (low frequency) / 40 W (high frequency tone)
- Acoustic pressure: 92 dB (low frequency) / 103 dB (high-tone)
- Installation opening: 150 mm
- Installation depth: 93 mm
- Dimensions 189 x 189 x 93 mm
- Outer diameter: 189 mm
- Width: 189 mm
- Height: 189 mm
- Depth: 93 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 2.28 kg
- Speaker type 6.5"
- Gross weight: 2.58 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 100 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Music resiliency (MAX) 300 W (low frequency) / 80 W (high frequency)
- Voice coil diameter: Ø 44 mm (low frequency) / 34 mm (high frequency)
- Hole diameter 173 mm
- Suspension compliance (Cms) 0.22 mm / N
- Moving mass (MMS): 11.58 g
- Mechanical quality (QMS): 3.651
- Electrical quality (QES): 0.925
- Overall quality (Qts): 0.738
- Equivalent volume (Vas): 7.3 l
- Direct current resistance (Re) 5.52 Ω
- Power factor (WxL) 6.59 Tm
- Voice coil former (Le):0.27 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 3.5 mm
- Effective Membrane area (SD): 153.94 cm2
- Magnet weight: 0.88 kg
- Voice coil length 10 mm
- Voice coil material: Copper-coated aluminum flat wire
- Angle of radiation horizontal 100°
- Angle of radiation vertical 100°
- Product type
Subwoofer
- Speaker size (inch)
6.5 inch
- RMS capacity
150 W
- Max. load
300 W
- Min. frequency
100 Hz
- Max. frequency
6000 Hz
- Impedance
8 Ω
- Sound pressure
92 dB
- Recess diameter
15 cm
- Recess depth
93 mm
- Weight
2.28 kg
- Factory colour
Black
- Frequency range
100 Hz - 6000 Hz
- Depth
9.3 cm
- Height
18.9 cm
- Width
18.9 cm
Documents & Downloads
Datasheet
Datasheet 3340860 Monacor FTX0617/8 6.5 inch Subwoofer 150 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340860 Monacor FTX0617/8 6.5 inch Subwoofer 150 W 8 Ω
Description

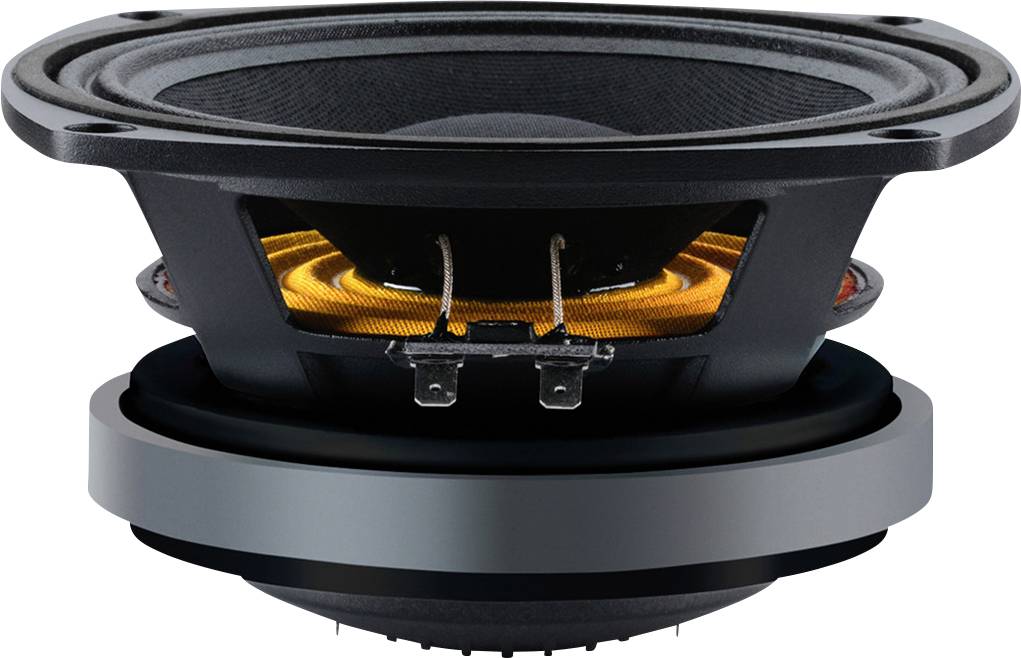

PA COAXIAL LOUDSPEAKER, 150 W, 8 Ω
High load-carrying capacity 165 mm PA-woofer (6½") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer drivers Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum-cast basket with rear ventilation of the centering spider
This text is machine translated.
High load-carrying capacity 165 mm PA-woofer (6½") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer drivers Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum-cast basket with rear ventilation of the centering spider
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range:100-6000 Hz (low frequency);1500-20000 Hz (high-frequency)
- Resonance frequency (fs): 100 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- RMS: 150 W (low frequency) / 40 W (high frequency tone)
- Music resiliency (MAX) 300 W (low frequency) / 80 W (high frequency)
- Acoustic pressure: 92 dB (low frequency) / 103 dB (high-tone)
- Angle of radiation horizontal 100°
- Angle of radiation vertical 100°
- Suspension (Cms): 0.22 mm/N
- Moving earth (Mms): 11.58 g
- Mechanical quality (Qms): 3.651
- Electrical quality (QES): 0.925
- Overall quality (Qts): 0.738
- Equivalent volume (Vas): 7.3 l
- Direct current resistance (Re): 5.52 Ω
- Power factor (WxL) 6.59 Tm
- Voice coil former (Le): 0.27 mH
- Voice coil diameter: Ø 44 mm (bass) / Ø 34 mm (tweeter)
- Voice coil length 10 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 3.5 mm
- Effective Membrane area (Sd): 153.94 cm²
- Magnet weight: 0.88 kg
- Mounting hole dia. 150 mm.
- Installation depth: 93 mm
- Hole diameter: Ø 173 mm
- Dimensions 189 x 189 x 93 mm
- Outer diameter: Ø 189 mm
- Width: 189 mm
- Height: 189 mm
- Depth: 93 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 2.28 kg
- Packing: 1
- Speaker type 6.5"
- Packaging dimensions (W x H x L) 0.185 x 0.135 x 0.185 m
- Gross weight: 2.58 kg
- Net weight: 2.28 kg
