Buy Monacor FTX0820/8 8 inch Subwoofer 200 W 8 Ω

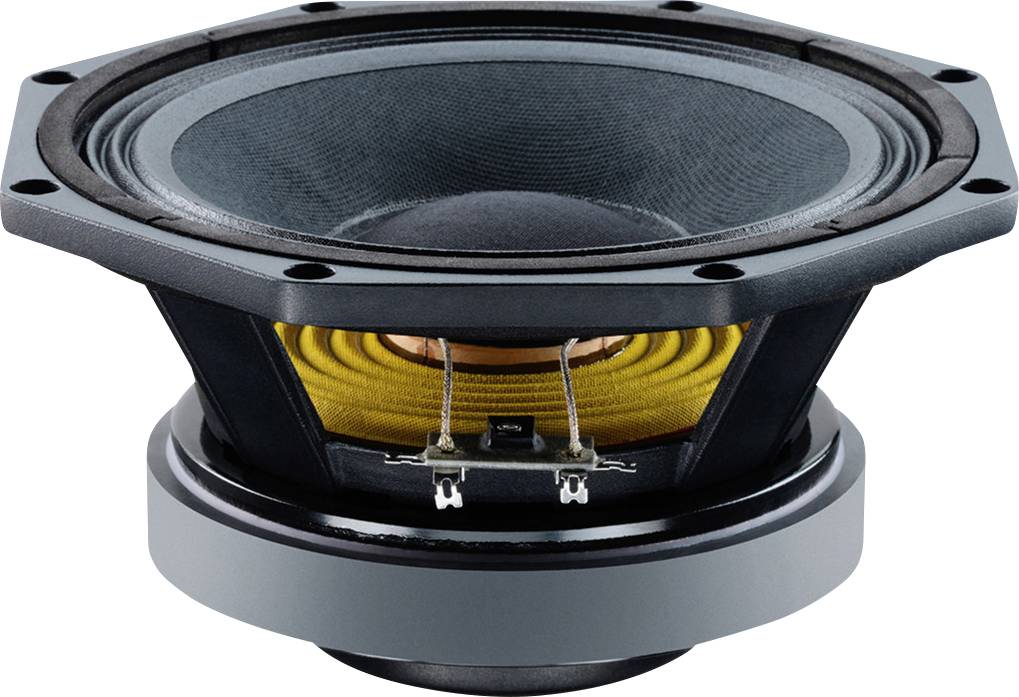

A black speaker against a white background, revealing the membrane and metal elements of the speaker structure.

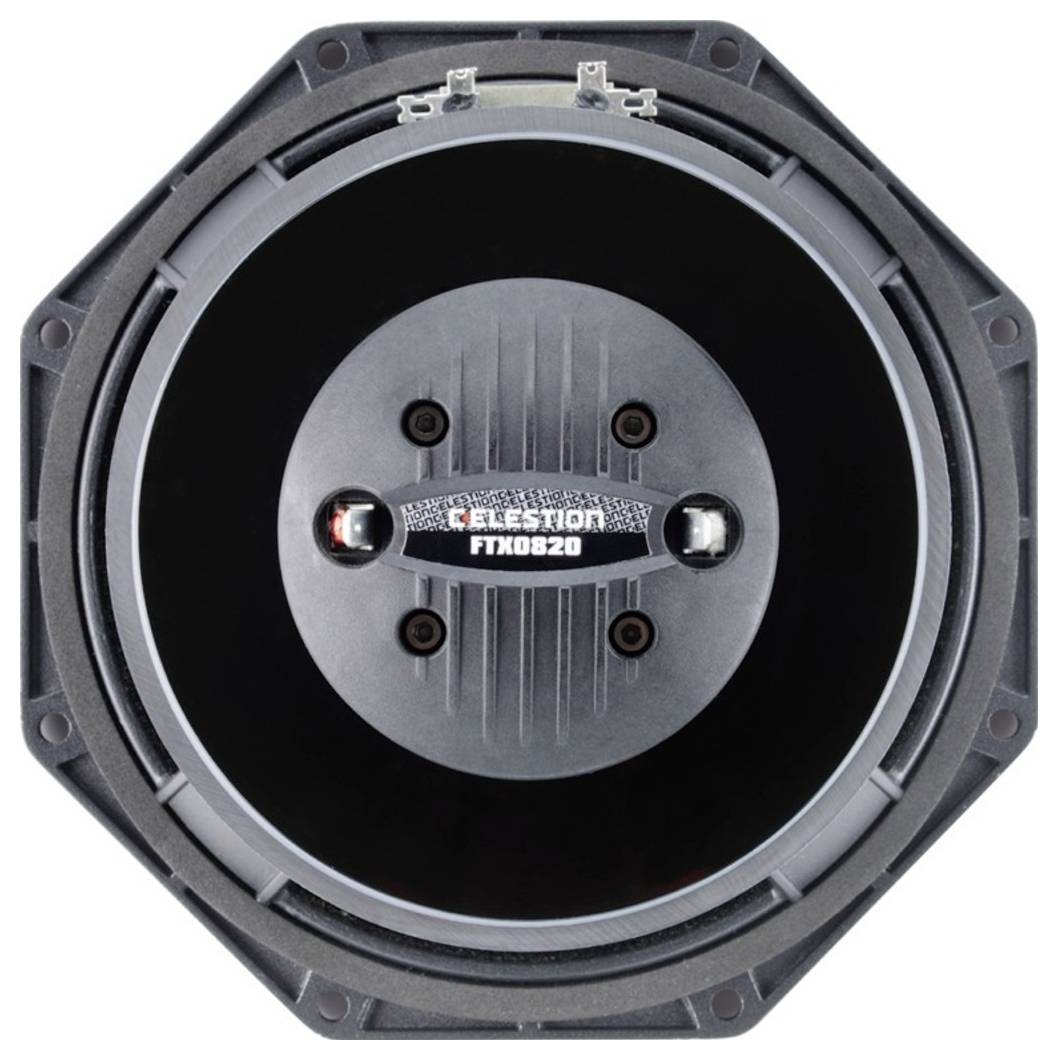

Speaker with the inscription 'Celestion FTX0820'. Shows the front side of a round driver in a metal enclosure.

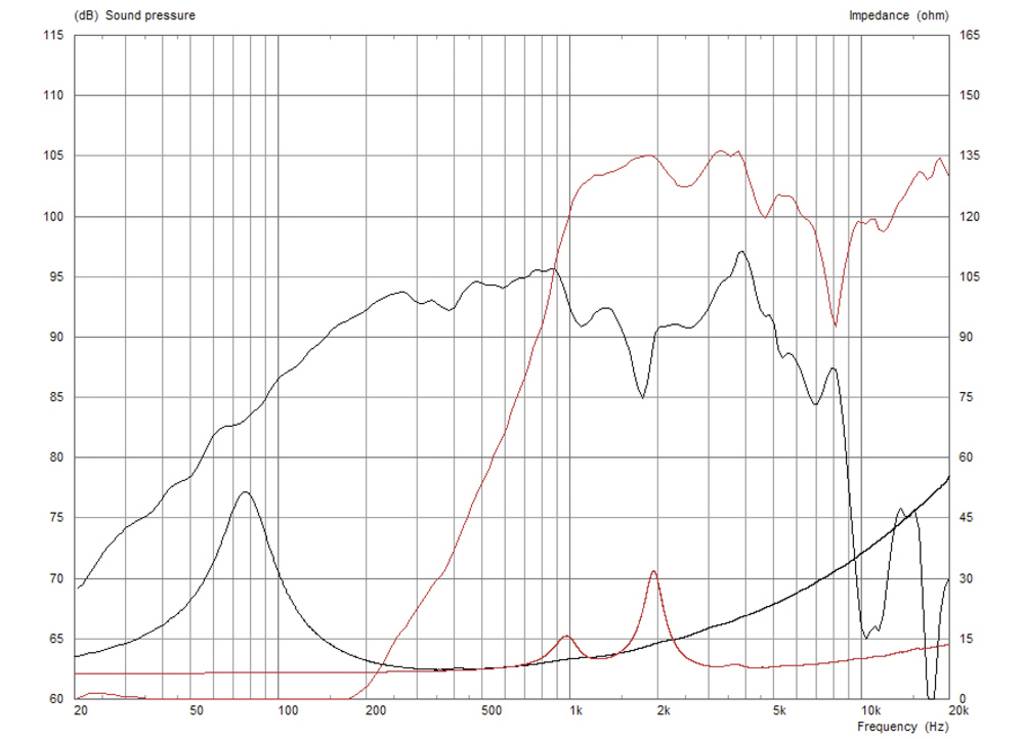

Diagram shows frequency response and impedance of a loudspeaker. Red line: Impedance (Ohms). Black line: Sound pressure level (dB). Frequency range: 20 Hz to 20 kHz.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 4.1 kg
Transmission technology: Cable
Frequency range: 70-5000 Hz (low frequency)1500-20000 Hz (high frequency)
RMS: 200 W (low frequency) / 40 W (high frequency tone)
Acoustic pressure: 94 dB (low frequency) / 103 dB (high-tone)
Installation opening: 187 mm
Installation depth: 123 mm
Dimensions 225 x 123 mm
Outer diameter: 225 mm
Width 225 mm
Height: 225 mm
Depth: 123 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight 4.1 kg.
Speaker type 8"
Gross weight: 4.54 kg
Impedance (Z) 8 Ω
Resonant frequency (fs): 78.80 Hz
Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
Music resiliency (MAX) 400 W (low frequency) / 80 W (high frequency)
Voice coil diameter: Ø 50 mm (low frequency) / 34 mm (high frequency)
Hole diameter 210 mm
Suspension compliance (Cms) 0.18 mm / N
Moving mass (MMS): 22.66 g
Mechanical quality (QMS): 2.8
Electrical quality (QES): 0.31
Overall quality (Qts): 0.279
Equivalent volume (Vas): 13.1 l
Direct current resistance (Re) 5.85 Ω
Power factor (WxL) 14.56 Tm
Voice coil former (Le):0.62 mH
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 4 mm
Effective Membrane area (SD): 226.984 cm2
Magnet weight: 1.5 kg
Voice coil length 12 mm
Voice coil material: Copper flat wire
Angle of radiation horizontal 100°
Angle of radiation vertical 100°

Product type: Subwoofer

Speaker size (inch): 8 inch

RMS capacity: 200 W

Max. load: 400 W

Min. frequency: 70 Hz

Max. frequency: 5000 Hz

Impedance: 8 Ω

Sound pressure: 94 dB

Recess diameter: 18.7 cm

Recess depth: 12.3 cm

Weight: 4.1 kg

Factory colour: Black

Frequency range: 70 Hz - 5000 Hz

Depth: 12.3 cm

Height: 22.5 cm

Width: 22.5 cm

Documents & Downloads

Datasheet

Datasheet 3340912 Monacor FTX0820/8 8 inch Subwoofer 200 W 8 Ω

User & Safety Instructions

User & Safety Instructions 3340912 Monacor FTX0820/8 8 inch Subwoofer 200 W 8 Ω

Description

PA COAXIAL LOUDSPEAKER, 200 W, 8 Ω
High power 200 mm PA woofer (8") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 100° nominal HF-cover

This text is machine translated.

Features

Impedance (Z) 8 Ω
Transmission technology: Cable
Frequency range:70-5000 Hz (low frequency);1500-20000 Hz (high-frequency)
Resonance frequency (fs): 78.80 Hz
Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
RMS: 200 W (low frequency) / 40 W (high frequency tone)
Music resiliency (MAX) 400 W (low frequency) / 80 W (high frequency)
Acoustic pressure: 94 dB (low frequency) / 103 dB (high-tone)
Angle of radiation horizontal 100°
Angle of radiation vertical 100°
Suspension (Cms): 0.18 mm/N
Moving earth (Mms): 22.66 g
Mechanical quality (Qms): 2.8
Electrical quality (QES): 0.31
Overall quality (Qts): 0.279
Equivalent volume (Vas): 13.1 l
Direct current resistance (Re): 5.85 Ω
Power factor (WxL) 14.56 Tm
Voice coil former (Le): 0.62 mH
Voice coil diameter: Ø 50 mm (bass) / Ø 34 mm (tweeter)
Voice coil length 12 mm
Voice coil material: Copper flat wire
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 4 mm
Effective Membrane area (Sd): 226.984 cm²
Magnet weight: 1.5 kg
Mounting hole dia. 187 mm.
Installation depth: 123 mm
Hole diameter: Ø 210 mm
Dimensions: Ø 225 mm x 123 mm
Outer diameter: Ø 225 mm
Width 225 mm
Height: 225 mm
Depth: 123 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight 4.1 kg.
Packing: 1
Speaker type 8"
Packaging dimensions (W x H x L) 0.229 x 0.152 x 0.229 m
Gross weight: 4.54 kg
Net weight: 4.1 kg
