Monacor FTX1025/8 10 inch 25.4 cm Subwoofer 300 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 4.5 kg
- Transmission technology: Cable

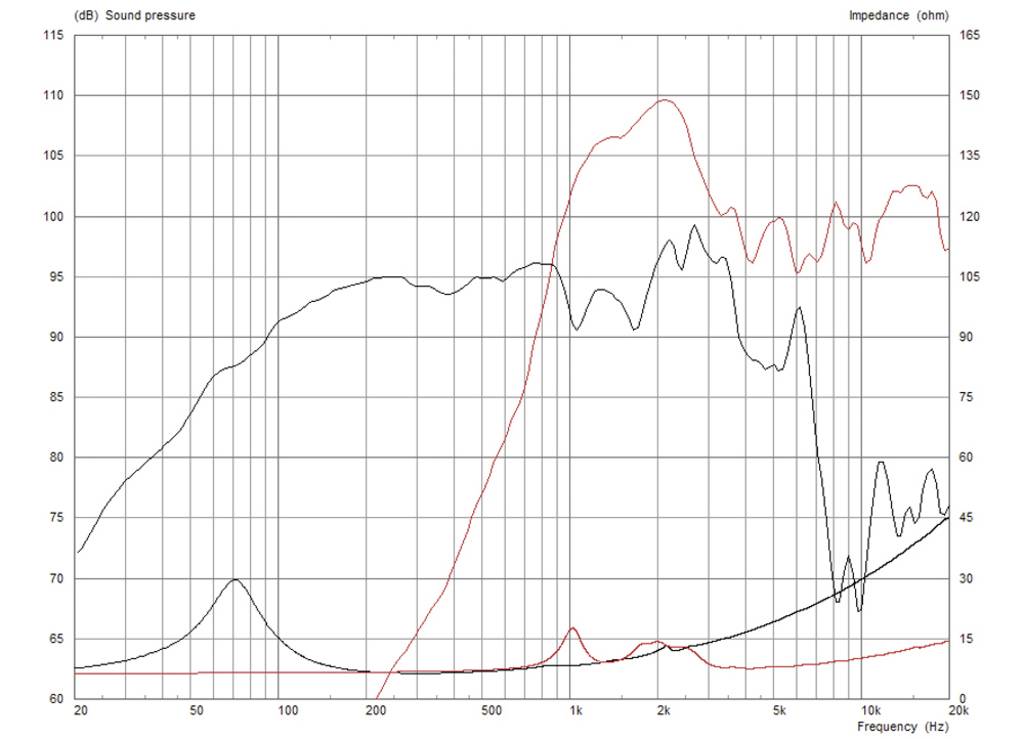

- Frequency range: 60-5000 Hz (low frequency)1000-20000 Hz (high frequency)
- RMS: 300 W (low frequency) / 40 W (high frequency tone)
- Acoustic pressure: 96 dB (low frequency) / 104 dB (high-tone)
- Installation opening: 234 mm
- Installation depth: 123 mm
- Dimensions 260 x 123 mm
- Outer diameter: 260 mm
- Width 260 mm
- Height: 260 mm
- Depth: 123 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 4.5 kg.
- Speaker type 10"
- Gross weight: 5.3 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 78.80 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Music resiliency (MAX) 600 W (low frequency) / 80 W (high frequency)
- Voice coil diameter: Ø 64 mm (low frequency) / 34 mm (high frequency)
- Hole diameter 244-247 mm
- Suspension compliance (Cms) 0.15 mm / N
- Moving mass (MMS): 32.55 g
- Mechanical quality (QMS): 2.788
- Electrical quality (QES): 0.523
- Overall quality (Qts): 0.44
- Equivalent volume (Vas): 25.9 l
- Direct current resistance (Re) 5.42 Ω
- Power factor (WxL) 12.30 Tm
- Voice coil former (Le):0.48 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 5 mm
- Effective Membrane area (SD): 346.36 cm2
- Magnet weight: 1.5 kg
- Voice coil length 14 mm
- Voice coil material: Copper-coated aluminum flat wire
- Angle of radiation horizontal 100°
- Angle of radiation vertical 100°
- Product type
Subwoofer
- Speaker size (inch)
10 inch
- Speaker size (cm)
25.4 cm
- RMS capacity
300 W
- Max. load
600 W
- Min. frequency
60 Hz
- Max. frequency
5000 Hz
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
23.4 mm
- Recess depth
12.3 mm
- Weight
4.5 kg
- Factory colour
Black
- Frequency range
60 Hz - 5000 Hz
- Depth
12.3 mm
- Height
26 mm
- Width
26 mm
Documents & Downloads
Datasheet
Datasheet 3340911 Monacor FTX1025/8 10 inch 25.4 cm Subwoofer 300 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340911 Monacor FTX1025/8 10 inch 25.4 cm Subwoofer 300 W 8 Ω
Description

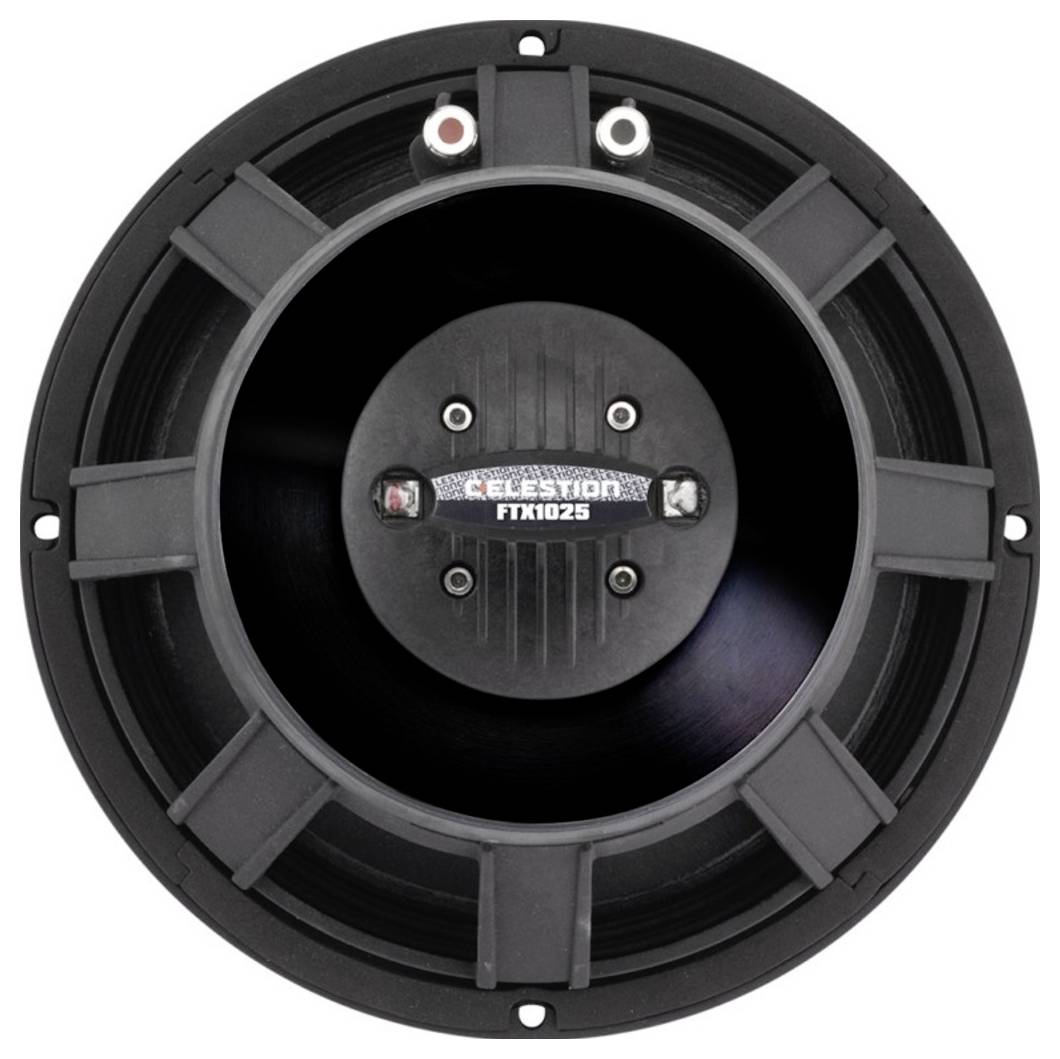

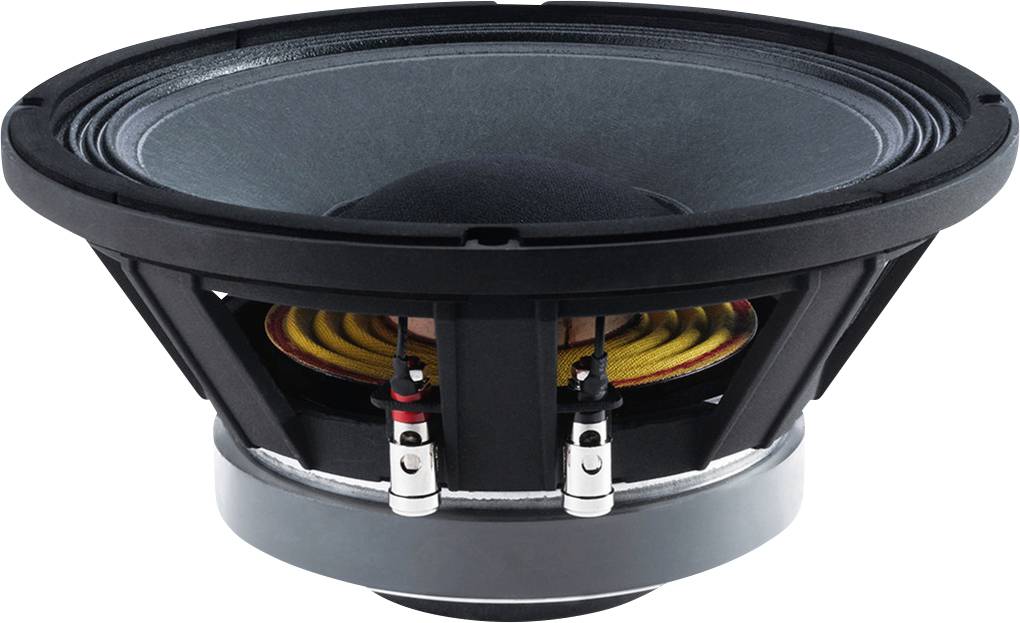

PA COAXIAL LOUDSPEAKER, 300 W, 8 Ω
High power 254 mm PA woofer (10") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 100° nominal HF-cover
This text is machine translated.
High power 254 mm PA woofer (10") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 100° nominal HF-cover
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range:60-5000 Hz (low frequency);1000-20000 Hz (high-frequency)
- Resonance frequency (fs): 78.80 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- RMS: 300 W (low frequency) / 40 W (high frequency tone)
- Music resiliency (MAX) 600 W (low frequency) / 80 W (high frequency)
- Acoustic pressure: 96 dB (low frequency) / 104 dB (high-tone)
- Angle of radiation horizontal 100°
- Angle of radiation vertical 100°
- Suspension (Cms): 0.15 mm/N
- Moving earth (Mms): 32.55 g
- Mechanical quality (Qms): 2.788
- Electrical quality (QES): 0.523
- Overall quality (Qts): 0.44
- Equivalent volume (Vas): 25.9 l
- Direct current resistance (Re): 5.42 Ω
- Power factor (WxL) 12.30 Tm
- Voice coil former (Le): 0.48 mH
- Voice coil diameter: Ø 64 mm (bass) / Ø 34 mm (tweeter)
- Voice coil length 14 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 5 mm
- Effective Membrane area (Sd): 346.36 cm²
- Magnet weight: 1.5 kg
- Mounting hole dia. 234 mm.
- Installation depth: 123 mm
- Hole diameter: Ø 244-247 mm
- Dimensions: Ø 260 mm x 123 mm
- Outer diameter: Ø 260 mm
- Width 260 mm
- Height: 260 mm
- Depth: 123 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 4.5 kg.
- Packing: 1
- Speaker type 10"
- Packaging dimensions (W x H x L) 0.303 x 0.178 x 0.303 m
- Gross weight: 5.3 kg
- Net weight: 4.5 kg
