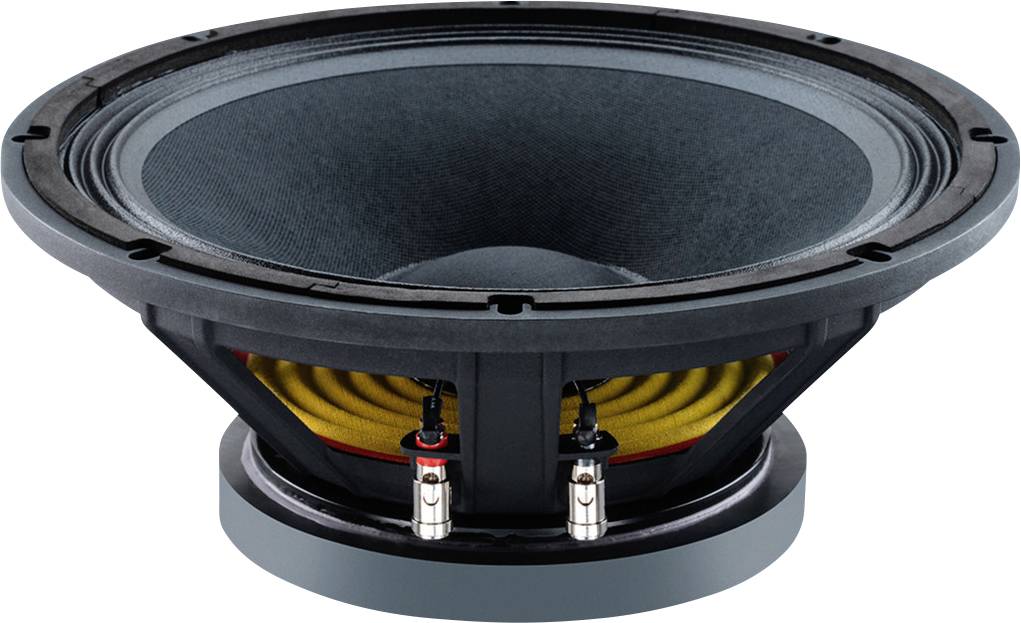

Monacor FTX1225/8 12 inch Subwoofer 300 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 5.98 kg
- Transmission technology: Cable

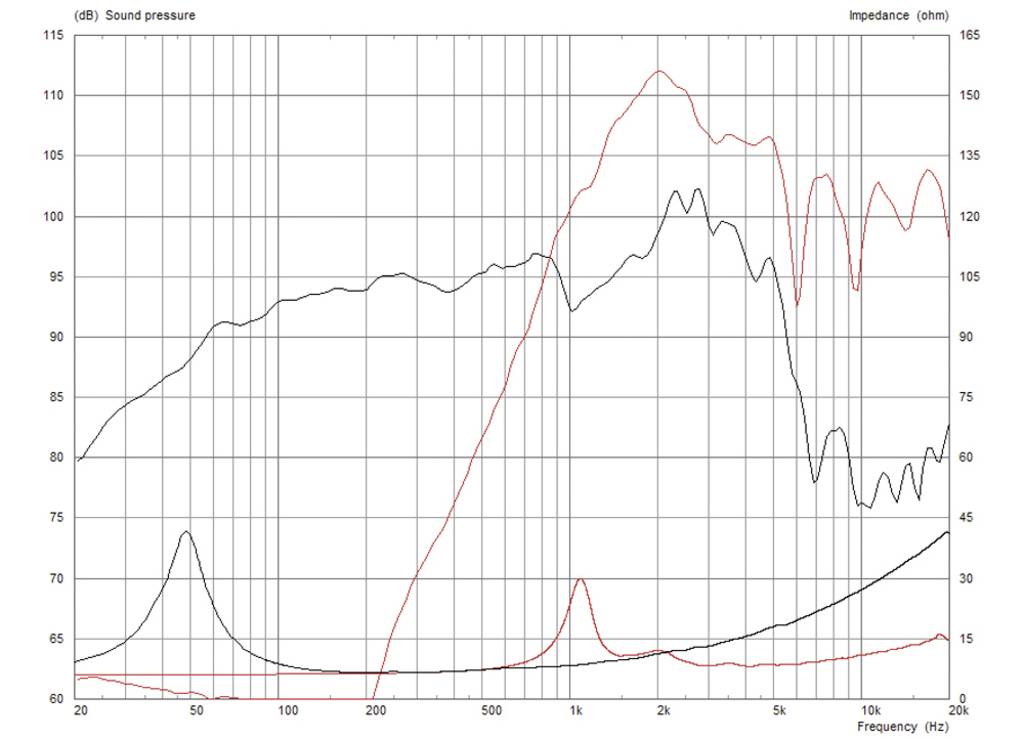

- Frequency range: 50-5000 Hz (low frequency)1000-20000 Hz (high frequency)
- RMS: 300 W (low frequency) / 60 W (high frequency tone)
- Acoustic pressure: 97 dB (low frequency) / 104 dB (high-tone)
- Installation opening: 286 mm
- Installation depth: 168 mm
- Dimensions 318 x 168 mm
- Outer diameter: 318 mm
- Width 318 mm
- Height: 318 mm
- Depth: 168 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5.98 kg
- Speaker type 12"
- Gross weight: 7.28 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 47.3 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Music resiliency (MAX) 600 W (low frequency) / 120 W (high frequency)
- Voice coil diameter: Ø 64 mm (low frequency) / 45 mm (high frequency)
- Hole diameter 298-304 mm
- Suspension compliance (Cms) 0.212 mm / N
- Moving mass (MMS): 53.50 g
- Mechanical quality (QMS): 4.214
- Electrical quality (QES): 0.437
- Overall quality (Qts): 0.396
- Equivalent volume (Vas): 84.6 l
- Direct current resistance (Re) 5.39 Ω
- Power factor (WxL) 14 Tm
- Voice coil former (Le):3.36 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 6 mm
- Effective Membrane area (SD): 530.93 cm2
- Magnet weight: 2.3 kg
- Voice coil length 16 mm
- Voice coil material: Copper-coated aluminum flat wire
- Angle of radiation horizontal 90°
- Angle of radiation vertical 90°
- Product type
Subwoofer
- Speaker size (inch)
12 inch
- RMS capacity
300 W
- Max. load
600 W
- Min. frequency
50 Hz
- Max. frequency
5000 Hz
- Impedance
8 Ω
- Sound pressure
97 dB
- Recess diameter
28.6 cm
- Recess depth
16.8 cm
- Weight
5.98 kg
- Factory colour
Black
- Frequency range
50 Hz - 5000 Hz
- Depth
16.8 cm
- Height
31.8 cm
- Width
31.8 cm
Documents & Downloads
Datasheet
Datasheet 3340906 Monacor FTX1225/8 12 inch Subwoofer 300 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340906 Monacor FTX1225/8 12 inch Subwoofer 300 W 8 Ω
Description

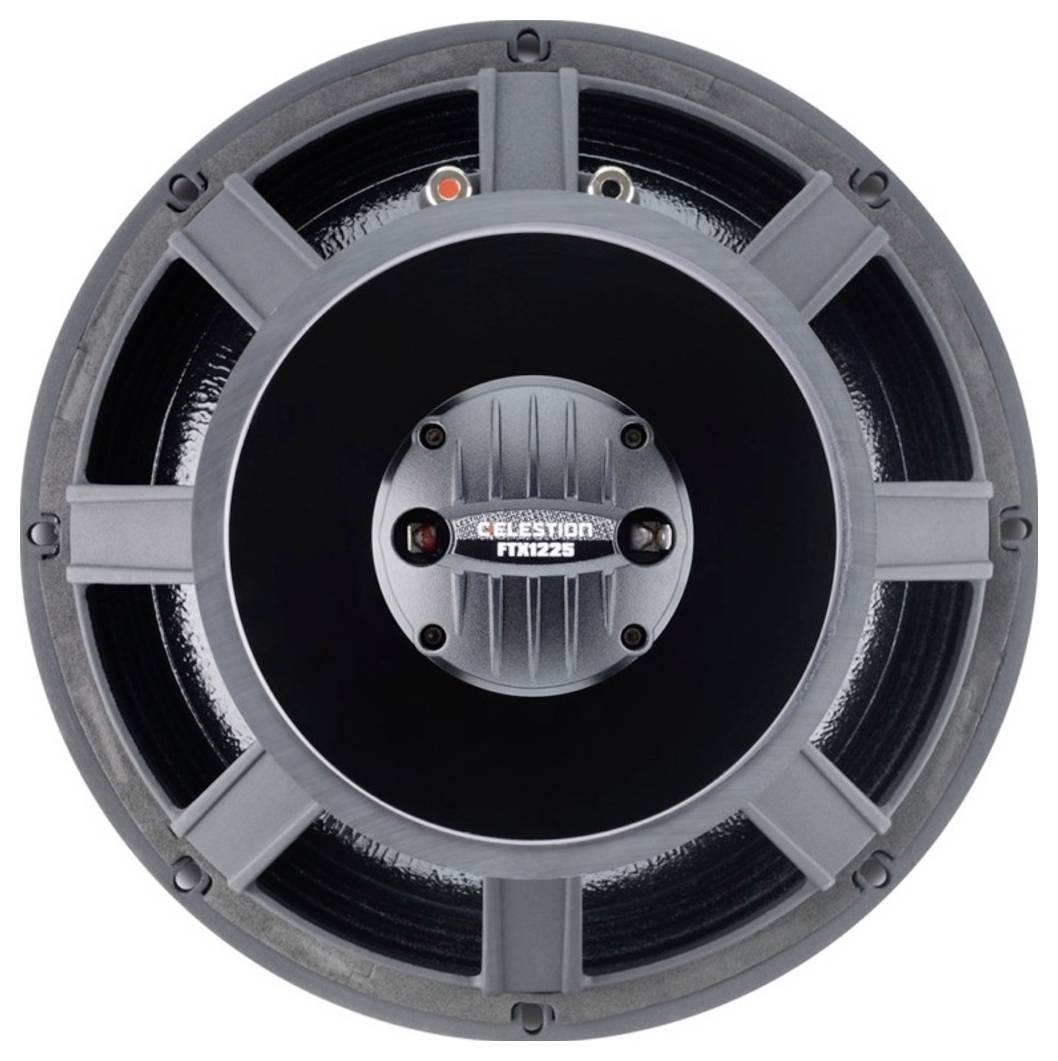

PA COAXIAL LOUDSPEAKER, 300 W, 8 Ω
High power 305 mm PA woofer (12") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 90° nominal HF-cover
This text is machine translated.
High power 305 mm PA woofer (12") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 90° nominal HF-cover
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range:50-5000 Hz (low frequency);1000-20000 Hz (high-frequency)
- Resonance frequency (fs): 47.3 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- RMS: 300 W (low frequency) / 60 W (high frequency tone)
- Music resiliency (MAX) 600 W (low frequency) / 120 W (high frequency)
- Acoustic pressure: 97 dB (low frequency) / 104 dB (high-tone)
- Angle of radiation horizontal 90°
- Angle of radiation vertical 90°
- Suspension (Cms): 0.212 mm/N
- Moving earth (Mms): 53.50 g
- Mechanical quality (Qms): 4.214
- Electrical quality (QES): 0.437
- Overall quality (Qts): 0.396
- Equivalent volume (Vas): 84.6 l
- Direct current resistance (Re): 5.39 Ω
- Power factor (WxL) 14 Tm
- Voice coil former (Le): 3.36 mH
- Voice coil diameter: Ø 64 mm (bass) / Ø 45 mm (tweeter)
- Voice coil length 16 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 6 mm
- Effective Membrane area (Sd): 530.93 cm²
- Magnet weight: 2.3 kg
- Mounting hole dia. 286 mm.
- Installation depth: 168 mm
- Hole diameter: Ø 298-304 mm
- Dimensions: Ø 318 mm x 168 mm
- Outer diameter: Ø 318 mm
- Width 318 mm
- Height: 318 mm
- Depth: 168 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5.98 kg
- Packing: 1
- Speaker type 12"
- Packaging dimensions (W x H x L) 0.356 x 0.2 x 0.356 m
- Gross weight: 7.28 kg
- Net weight: 5.98 kg
