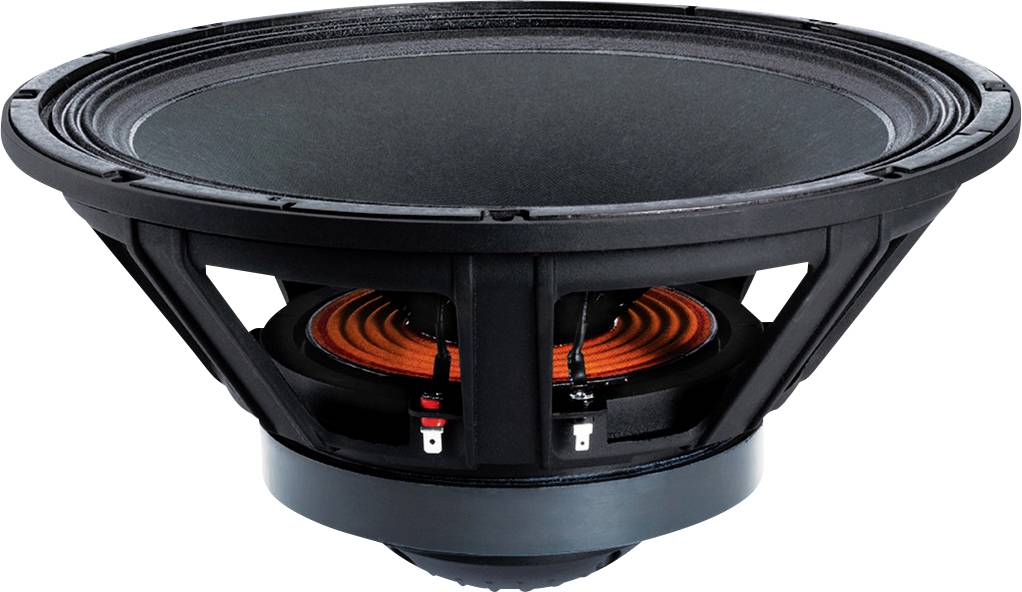

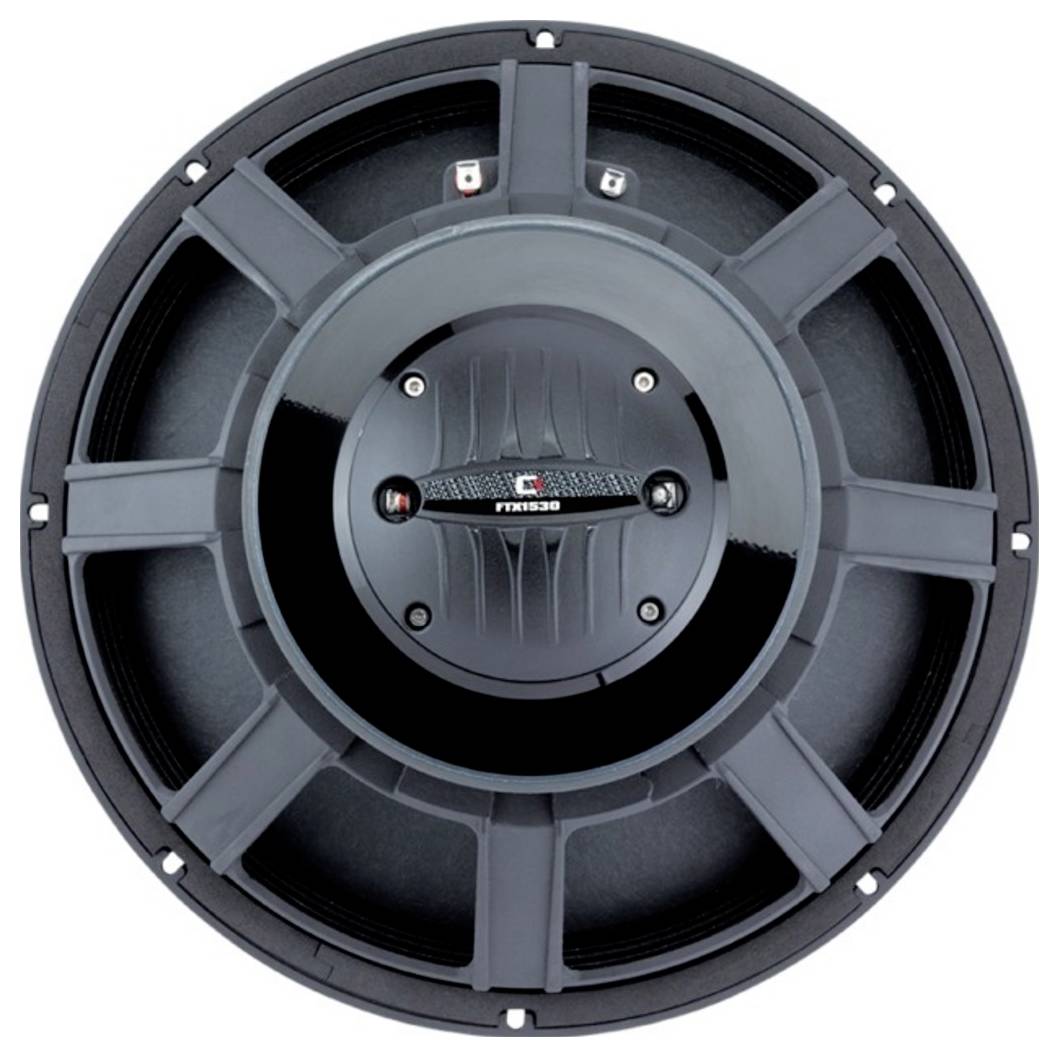

Monacor FTX1530/8 15 inch Subwoofer 400 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 6.5 kg
- Transmission technology: Cable
- Frequency range: 40-4000 Hz (low frequency)1000-20000 Hz (high frequency)
- RMS: 400 W (low frequency) / 75 W (high frequency tone)
- Acoustic pressure: 97 dB (low frequency) / 106.5 dB (high-tone)
- Installation opening: 351 mm
- Installation depth: 176 mm
- Dimensions 387 x 176 mm
- Outer diameter: 387 mm
- Width 387 mm
- Height: 387 mm
- Depth: 176 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 9.1 kg.
- Speaker type 15"
- Gross weight: 7.5 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 42.5 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):1000 Hz
- Music resiliency (MAX) 800 W (low frequency) / 150 W (high frequency)
- Voice coil diameter: Ø 75 mm (low frequency) / 75 mm (high frequency)
- Hole diameter 365-375 mm
- Suspension compliance (Cms) 0.17 mm / N
- Moving mass (MMS): 84.29 g
- Mechanical quality (QMS): 3.809
- Electrical quality (QES): 0.297
- Overall quality (Qts): 0.276
- Equivalent volume (Vas): 172.1 l
- Direct current resistance (Re) 5.36 Ω
- Power factor (WxL) 20.16 Tm
- Voice coil former (Le):0.82 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 6 mm
- Effective Membrane area (SD): 855.30 cm2
- Magnet weight: 2.3 kg
- Voice coil length 16 mm
- Voice coil material: Copper-coated aluminum flat wire
- Angle of radiation horizontal 90°
- Angle of radiation vertical 90°
- Product type
Subwoofer
- Speaker size (inch)
15 inch
- RMS capacity
400 W
- Max. load
800 W
- Min. frequency
40 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
97 dB
- Recess diameter
35.1 cm
- Recess depth
17.6 cm
- Weight
9.1 kg
- Factory colour
Black
- Frequency range
40 Hz - 4000 Hz
- Depth
17.6 cm
- Height
38.7 cm
- Width
38.7 cm
Documents & Downloads
Datasheet
Datasheet 3340900 Monacor FTX1530/8 15 inch Subwoofer 400 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340900 Monacor FTX1530/8 15 inch Subwoofer 400 W 8 Ω
Description
PA COAXIAL LOUDSPEAKER, 400 W, 8 Ω
High power 381 mm PA woofer (15") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 90° nominal HF-cover
This text is machine translated.
High power 381 mm PA woofer (15") with Hohem efficiency Coaxial arranged high-tone horn Optimised drive with only one common magnet for tweeter and woofer driver Integrated demodulation rings for reducing electromagnetic distortions Stable aluminum basket with ventilation of the centering spider 90° nominal HF-cover
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range:40-4000 Hz (low frequency);1000-20000 Hz (high-frequency)
- Resonance frequency (fs): 42.5 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):1000 Hz
- RMS: 400 W (low frequency) / 75 W (high frequency tone)
- Music resiliency (MAX) 800 W (low frequency) / 150 W (high frequency)
- Acoustic pressure: 97 dB (low frequency) / 106.5 dB (high-tone)
- Angle of radiation horizontal 90°
- Angle of radiation vertical 90°
- Suspension (Cms): 0.17 mm/N
- Moving earth (Mms): 84.29 g
- Mechanical quality (Qms): 3.809
- Electrical quality (QES): 0.297
- Overall quality (Qts): 0.276
- Equivalent volume (Vas): 172.1 l
- Direct current resistance (Re): 5.36 Ω
- Power factor (WxL) 20.16 Tm
- Voice coil former (Le): 0.82 mH
- Voice coil diameter: Ø 75 mm (bass) / Ø 75 mm (tweeter)
- Voice coil length 16 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 6 mm
- Effective Membrane area (Sd): 855.30 cm²
- Magnet weight: 2.3 kg
- Mounting hole dia. 351 mm.
- Installation depth: 176 mm
- Hole diameter: Ø 365-375 mm
- Dimensions: Ø 387 mm x 176 mm
- Outer diameter: Ø 387 mm
- Width 387 mm
- Height: 387 mm
- Depth: 176 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 9.1 kg.
- Packing: 1
- Speaker type 15"
- Packaging dimensions (W x H x L) 0.428 x 0.228 x 0.428 m
- Gross weight: 7.5 kg
- Net weight: 6.5 kg
