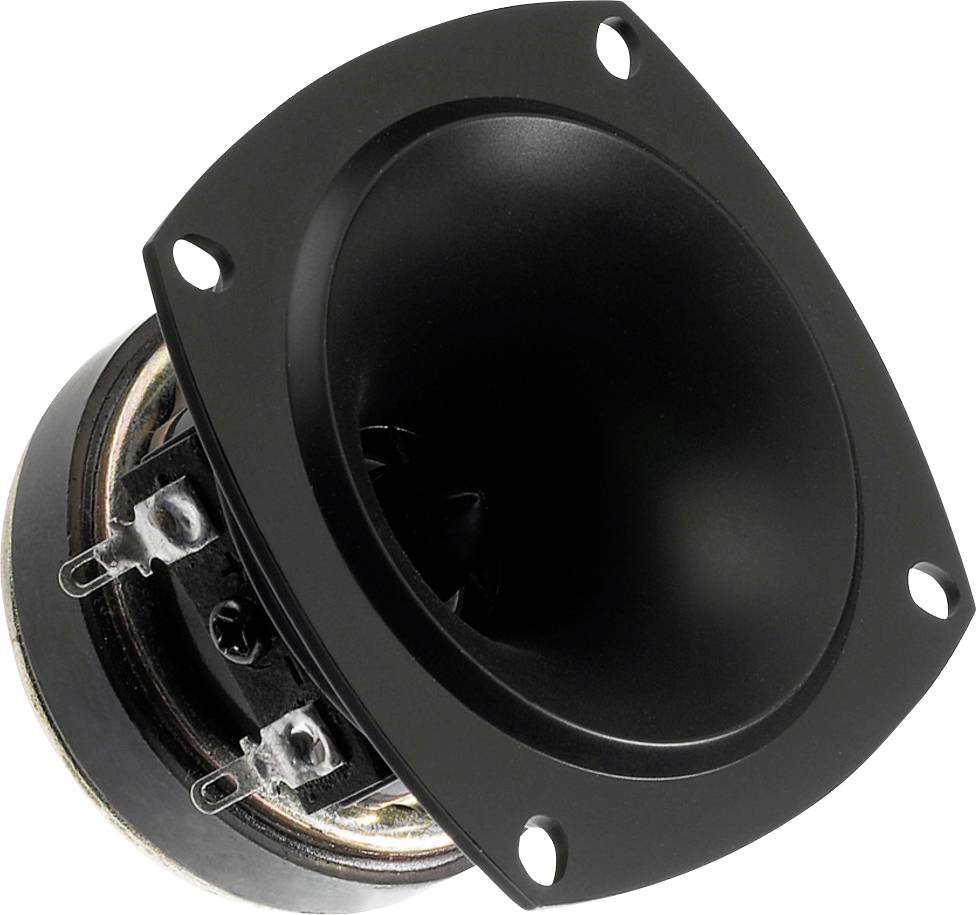

Monacor HT-30 Tweeter 50 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.18 kg
- Transmission technology: Cable
- Frequency range fx-20 kHz
- Nominal capacity (RMS) 50 W.
- Characteristic sound pressure 98 dB/W/m
- Installation opening: 59 mm
- Installation depth: 45 mm
- Dimensions 67 x 67 x 47 mm
- Width 67 mm
- Height: 67 mm
- Depth: 47 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.18 kg
- Gross weight: 0.195 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 2 kHz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct): 5 kHz
- Music load capacity (MAX) 100 W
- Voice coil diameter 12 mm
- Magnet diameter 50 mm
- Product type
Tweeter
- RMS capacity
50 W
- Max. load
100 W
- Max. frequency
20 kHz
- Frequency range
20 kHz (max)
- Sound pressure
98 dB
- Impedance
8 Ω
- Recess depth
45 mm
- Weight
180 g
- Factory colour
Black
- Length
47 mm
- Width
67 mm
- Height
67 mm
- Recess diameter
59 mm
Documents & Downloads
Datasheet
Datasheet 3341031 Monacor HT-30 Tweeter 50 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3341031 Monacor HT-30 Tweeter 50 W 8 Ω
Description
PA miniature horn tweeter, 50 W, 8 Ω
Broad-band and linear playback High load-carrying capacity through ferrofluid
This text is machine translated.
Broad-band and linear playback High load-carrying capacity through ferrofluid
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range fx-20 kHz
- Resonant frequency (fs): 2 kHz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct): 5 kHz
- Nominal capacity (RMS) 50 W.
- Music load capacity (MAX) 100 W
- Characteristic sound pressure 98 dB/W/m
- Voice coil diameter: Ø 12 mm
- Magnet diameter: Ø 50 mm
- Mounting hole dia. 59 mm.
- Installation depth: 45 mm

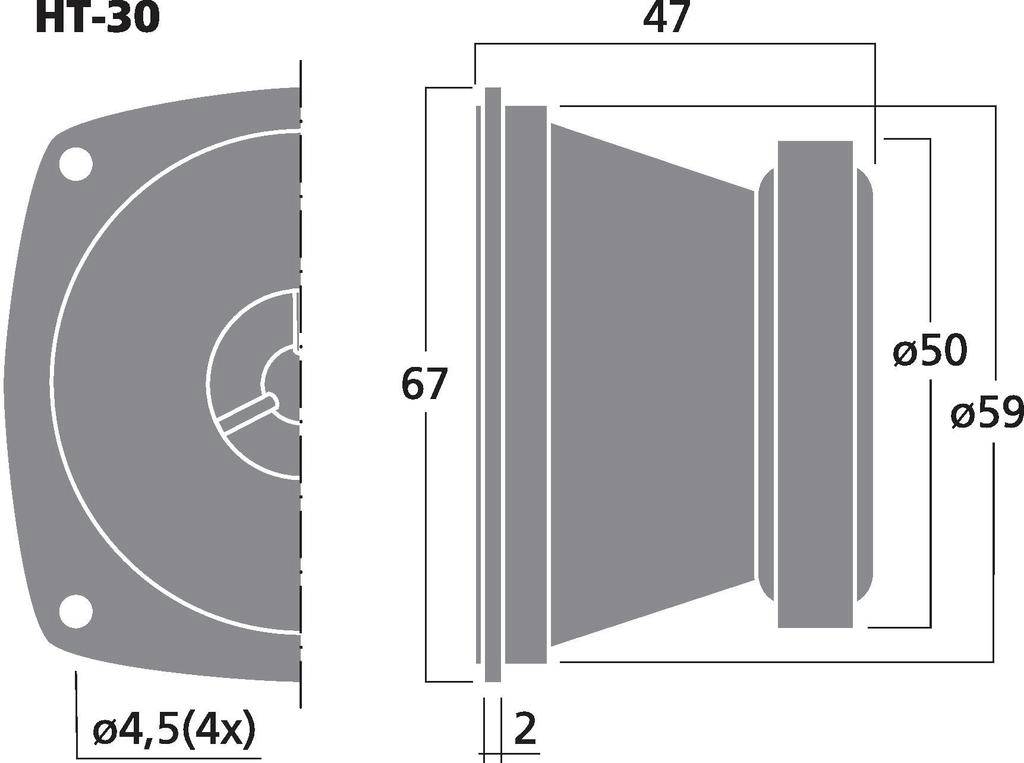

- Dimensions 67 x 67 x 47 mm
- Width 67 mm
- Height: 67 mm
- Depth: 47 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.18 kg
- Packing: 1
- Packaging dimensions (W x H x L) 0.07 x 0.055 x 0.07 m
- Gross weight: 0.195 kg
- Net weight: 0.18 kg
