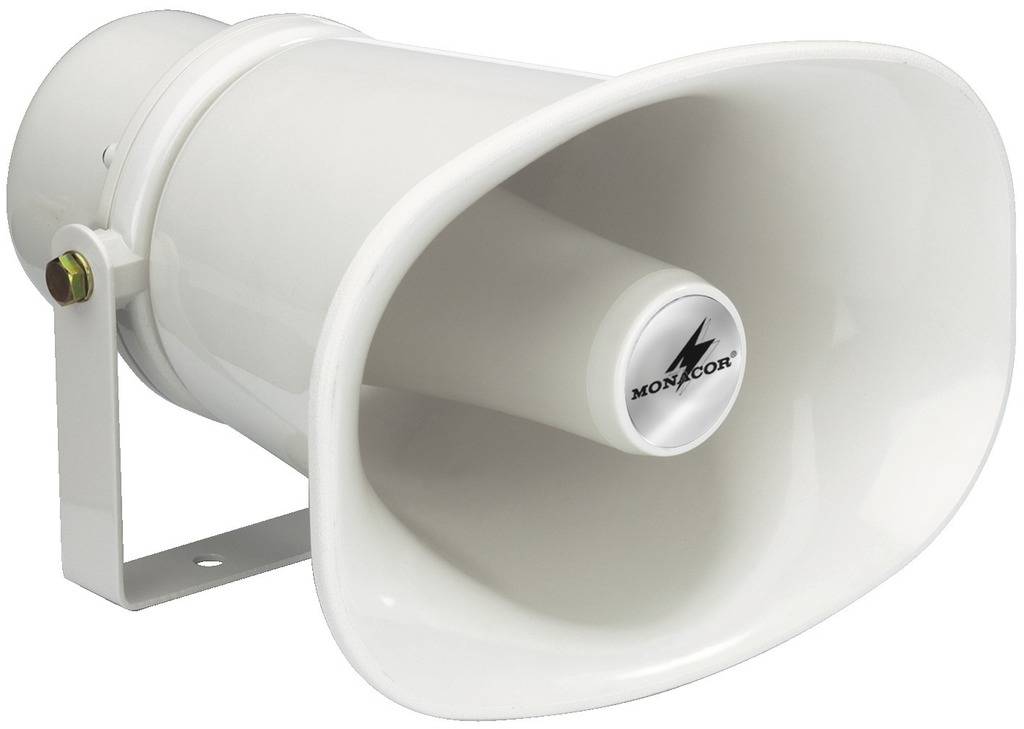

Monacor IT-115 PA compression drive speaker 15 W White 1 pc(s)
EAN:
Part number:
Item no:
Monacor IT-115 Pressure chamber speaker
Technical specifications
- Rating: 15/10/5/3/1 WRMS
- Frequency range: 280-12500 Hz
- Avg. Sound pressure (1W/m): 108 dB
- Beam angle (hor. vert.): N/A
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions: 225 x 160 x 235 mm
- Weight: 1.3 kg
- Special feature: IP66, ABS plastic
- Replacement voice coil: -
- Product type
PA compression drive speaker
- RMS capacity
15 W
- Max. load
15 W
- SPL
108 dB
- Features
weatherproof
sprayproof
IP66
- Frequency range
280 - 12500 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Acrylonitrile butadiene styrene
Plastic
- Width
22.5 mm
- Height
16 mm
- Length
23.5 mm
- Weight
1.3 kg
- Dim
(L x W x H) 23.5 x 22.5 x 16 mm
- Max. sound pressure
108 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331825 Monacor IT-115 PA compression drive speaker 15 W White 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker
- 100-V transformer technology
- Weather-resistant and IP66-certified.
- Protected against strong water-jet
- Power changeover switch
- For events in the open, applications for industrial companies, in workshops
- This text is machine translated.
