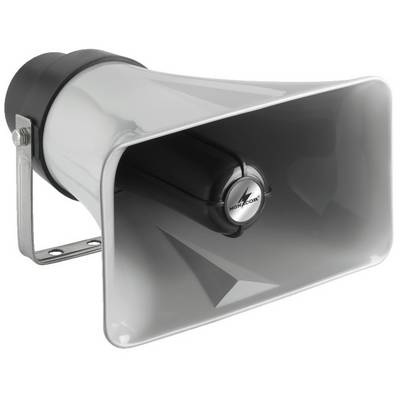

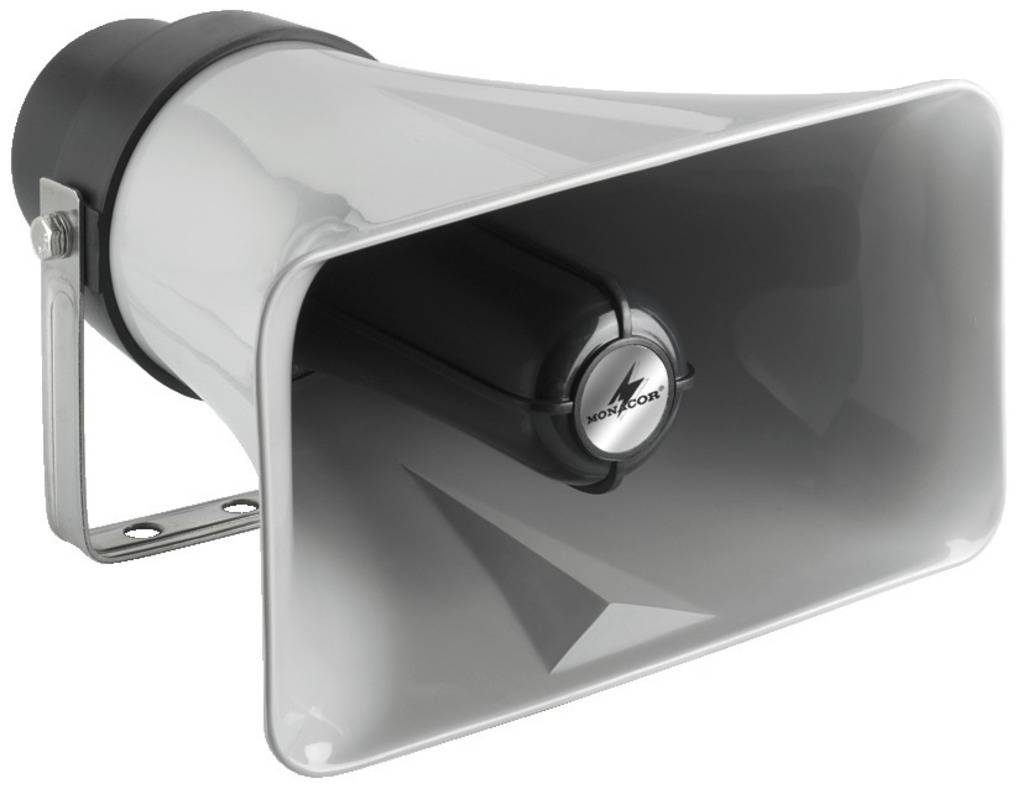

Monacor IT-20 PA compression drive speaker 15 W Grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Rating: 15/10/5/2.5 WRMS
- Frequency range: 275-7000 Hz
- Avg. Sound pressure (1W/m): 106 dB
- Beam angle (hor. vert.): 100°/50°
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions 250 x 145 x 300 mm
- Weight: 2.0 kg
- Special feature: IP66, plastic
- Replacement voice coil: IT-230/VC
- Product type
PA compression drive speaker
- RMS capacity
15 W
- Max. load
15 W
- SPL
106 dB
- Features
weatherproof
sprayproof
IP66
- Frequency range
275 - 7000 Hz
- Operating voltage
100 V
- Factory colour
Grey
- Material
Plastic
- Width
25 cm
- Height
14.5 cm
- Length
30 cm
- Weight
2 kg
- Dim
(L x W x H) 30 x 25 x 14.5 cm
- Max. sound pressure
106 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331830 Monacor IT-20 PA compression drive speaker 15 W Grey 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker
- 100-V transformer technology
- Weather-resistant and IP66-certified.
- Protected against strong water-jet
- Can be used universally for indoor and outdoor use
- Robust plastic housing
- Stainless steel mounting bracket and screws
- 4-level volume control switch
