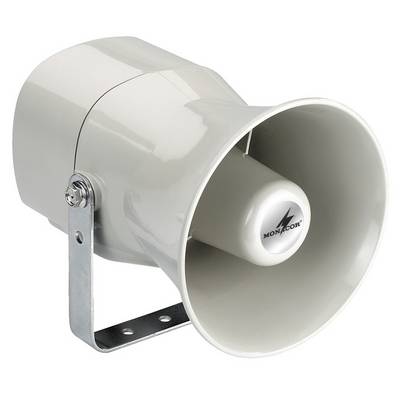

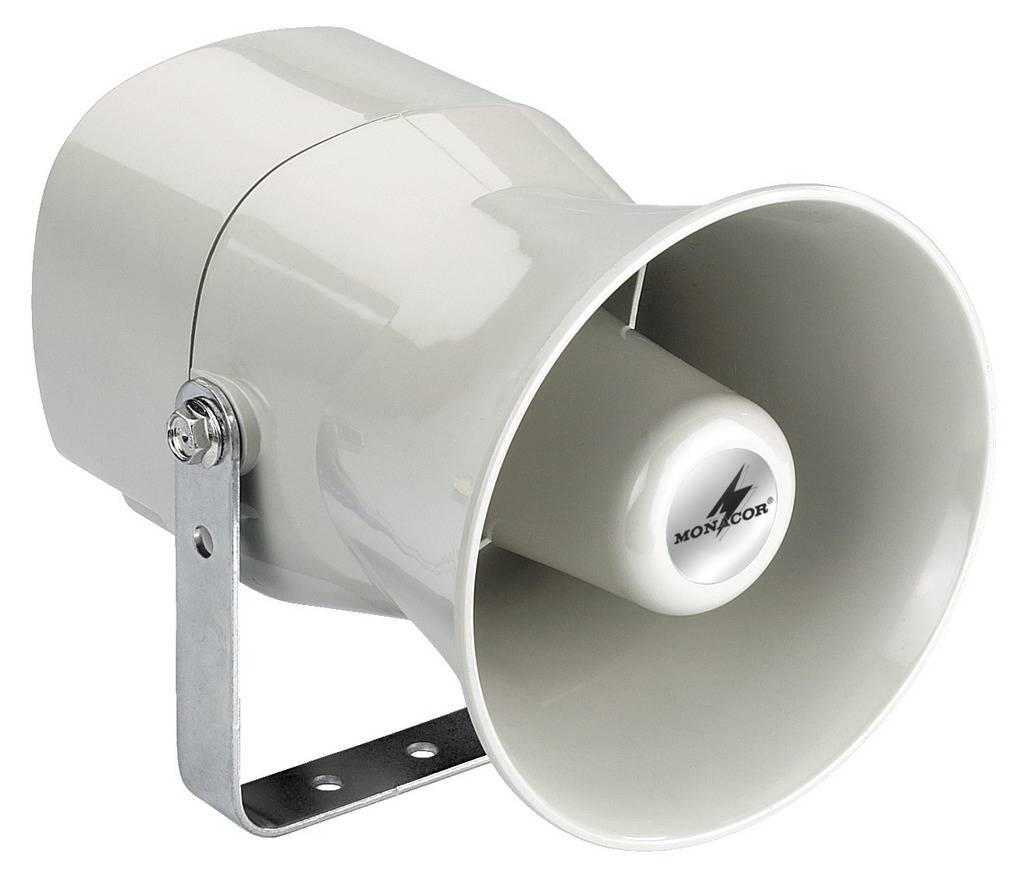

Monacor IT-33 PA compression drive speaker 25 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Rating: 25/12, 5/6.25 WRMS
- Frequency range: 500-1 3000 Hz
- Avg. Sound pressure (1W/m): 107 dB
- Beam angle (hor. vert.): 90°/90°
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions: diameter. 130 mm x 175 mm
- Weighs 1.8 kg
- Special feature: IP 64, self-extinguishing ABS
- Replacement voice coil: -
- Product type
PA compression drive speaker
- RMS capacity
25 W
- Max. load
25 W
- SPL
107 dB
- Features
weatherproof
flame-retardant
sprayproof
IP64
- Frequency range
500 - 13000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Acrylonitrile butadiene styrene
- Width
130 mm
- Height
175 mm
- Length
17.5 cm
- (Ø)
13 cm
- Weight
1.8 kg
- Dim
(Ø x H) 13 cm x 175 mm
- Max. sound pressure
107 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331836 Monacor IT-33 PA compression drive speaker 25 W White 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker
- 100-volt transmission technology
- IP64-certified, protected against splash water
- White ABS housing (self-extinguishing, complies with the standard UL94 V0)
- In relation to the size particularly high performance
- Universally suitable for indoor and outdoor use
- Built-in high-pass for sound and stability optimization
- This text is machine translated.
