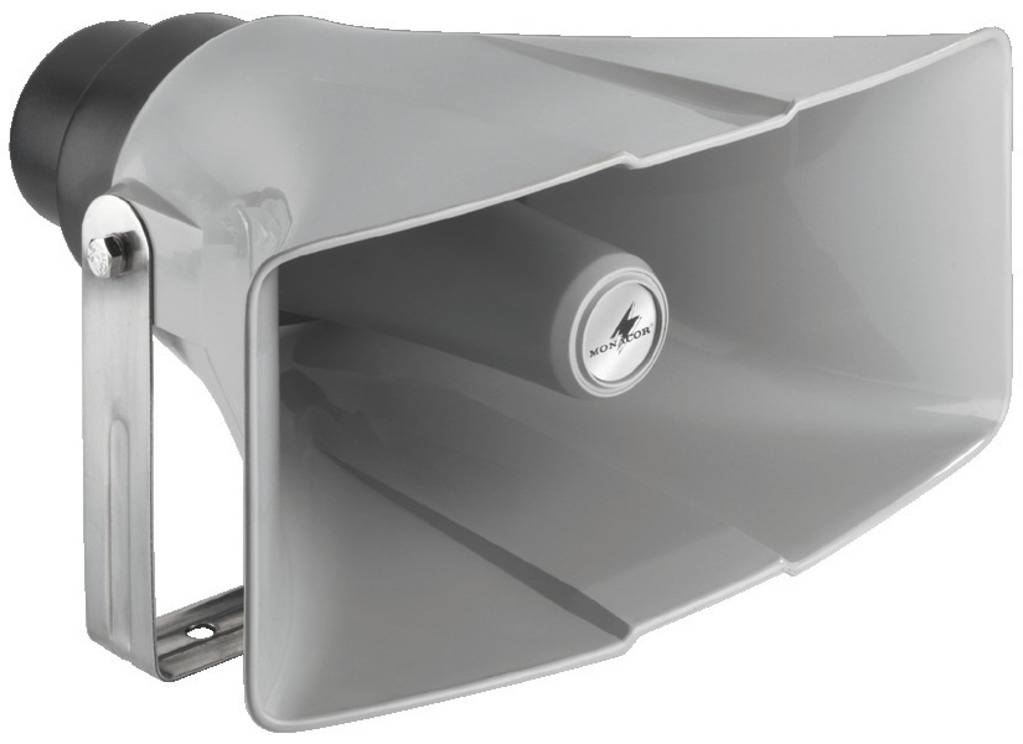

Monacor IT-40 PA compression drive speaker 40 W Grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Rating: 40/30/20/10/5 WRMS
- Frequency range: 180-7000 Hz
- Avg. Sound pressure (1W/m): 113 dB
- Beam angle (hor. vert.): 100°/45°
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions: 400 x 200 x 420 mm
- Weight: 3.9 kg
- Special feature: IP66, plastic
- Replacement voice coil: IT-40/VC
- Product type
PA compression drive speaker
- RMS capacity
40 W
- Max. load
40 W
- SPL
113 db
- Features
sprayproof
weatherproof
IP66
- Frequency range
180 - 7000 Hz
- Operating voltage
100 V
- Factory colour
Grey
- Material
Plastic
- Width
40 cm
- Height
20 cm
- Length
42 cm
- Weight
3.9 kg
- Dim
(L x W x H) 42 x 40 x 20 cm
- Max. sound pressure
113 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331838 Monacor IT-40 PA compression drive speaker 40 W Grey 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker
- 100-V transformer technology
- Weather-resistant and IP66-certified.
- Protected against strong water-jet
- Can be used universally for indoor and outdoor use
- Robust plastic housing
- Stainless steel mounting bracket and screws
- 5-level volume control switch
