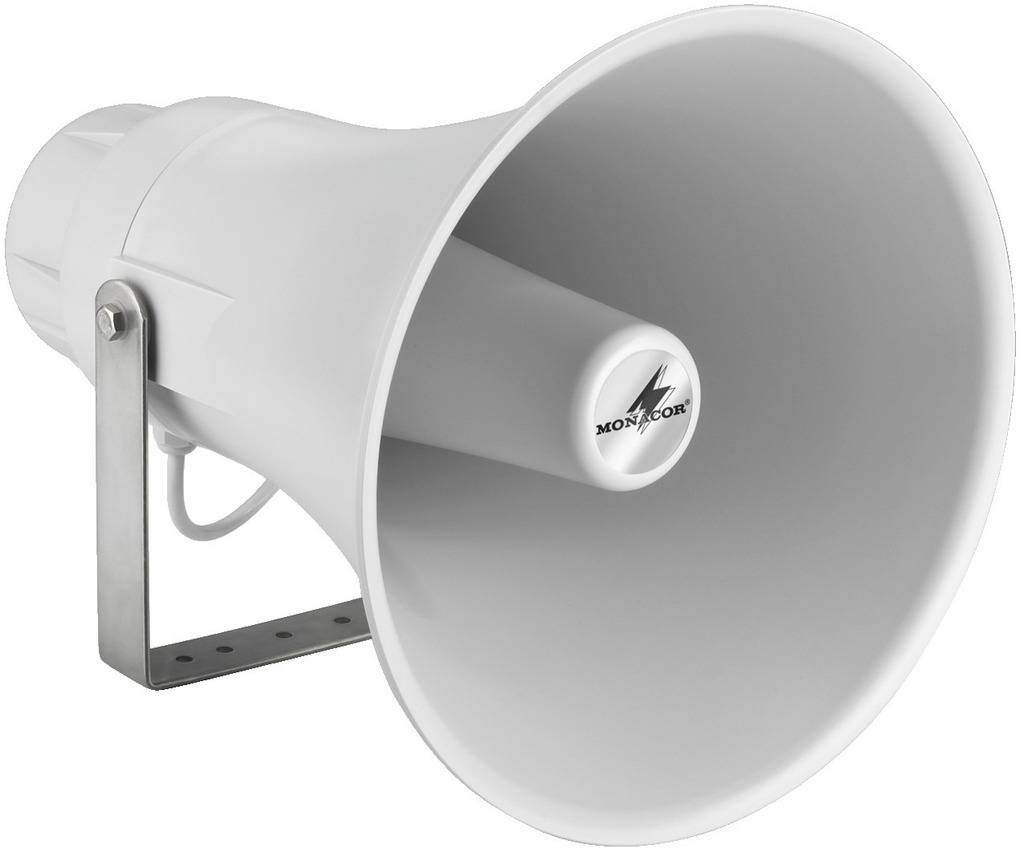

Monacor IT-60 PA compression drive speaker 60 W Light grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Rating: 60/30/15/7.5 WRMS
- Frequency range: 230-9000 Hz
- Avg. Sound pressure (1W/m): 110 dB
- Beam angle (hor. vert.): 80°/30°
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions: diameter. 305 mm x 385 mm
- Weight: 3.9 kg
- Special feature: IP66, ABS
- Replacement voice coil:
- Product type
PA compression drive speaker
- RMS capacity
60 W
- Max. load
60 W
- SPL
110 dB
- Features
flame-retardant
sprayproof
weatherproof
IP66
- Frequency range
230 - 9000 Hz
- Operating voltage
100 V
- Factory colour
Light grey
- Material
Acrylonitrile butadiene styrene
- Width
305 mm
- Height
385 mm
- Length
38.5 cm
- (Ø)
30.5 cm
- Weight
3.9 kg
- Dim
(Ø x H) 30.5 cm x 385 mm
- Max. sound pressure
110 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331841 Monacor IT-60 PA compression drive speaker 60 W Light grey 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker with high performance
- 100-V transformer technology
- Weather-resistant and IP66-certified.
- Protected against strong water-jet
- Can be used universally for indoor and outdoor use
- Light gray ABS housing (self-extinguishing, complies with the standard UL94 V0)
- Stainless steel mounting bracket included
- Built-in ceramic connecting terminal with thermal fuse
- 4 power taps
- This text is machine translated.
