Monacor KATANA-M1 2-way speaker assembly kit incl. crossover, incl. cable
EAN:
Part number:
Item no:
Highlights & Details

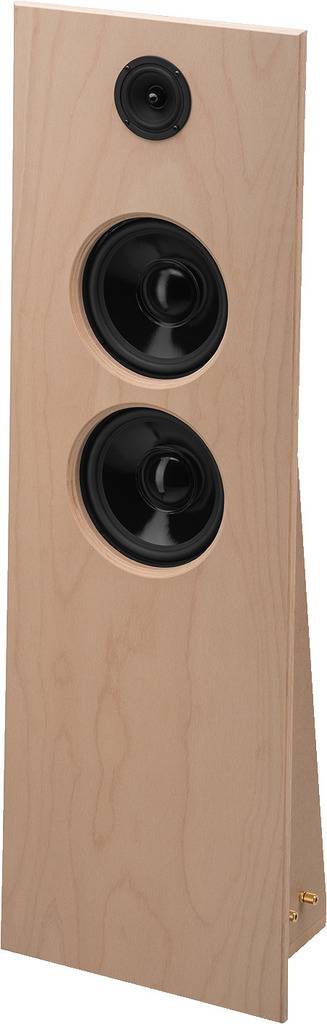

Speaker kit KATANA-M1
- Contains all electrical parts needed to build a speaker
Technical specifications
- Art:self-assembly kit
- Use: LS-baffle
- Components:
- 1 x baffle
- 1 x base
- 2 x side part
- 1 x Hi-Fi broadband speaker SPX-31M
- 1 x pair of LS pole terminals BP-500G
- 2 x Hi-Fi mid-range speaker SPM-205/8
- 1 x MKT thin film capacitor MKTA-220
- 1 x transformer core coil LSI-56T
- 3 metres
- Weight 12 kg
- Housing system: Open-Baffle
- Nominal load 120W
- Limpedance: 4Ω
- Average characteristic sound pressure: 85dB
- Separation frequency 250Hz
- Frequency range 45–20000Hz
- Product type
2-way speaker assembly kit
- Features
incl. crossover
incl. cable
- RMS capacity
120 W
- Max. load
120 W
- Impedance
4 Ω
- Content
1 pc(s)
- Width
35 cm
- Height
110 cm
- Depth
21 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2268151 Monacor KATANA-M1 2-way speaker assembly kit incl. crossover, incl. cable
Description
An open secret ...

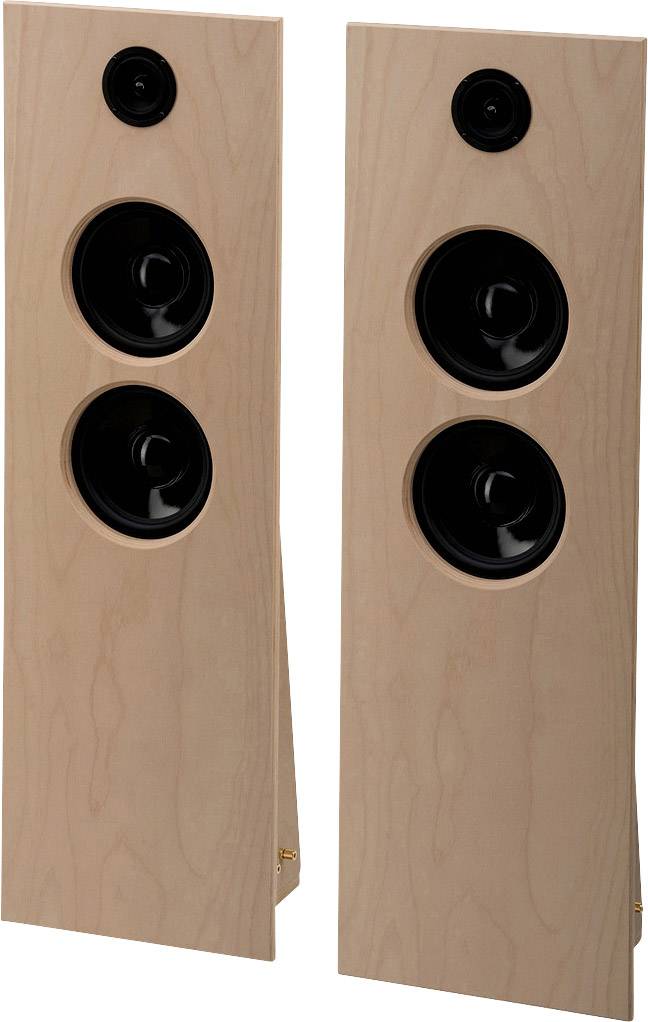

With the speaker KATANA-M1 you can impress in your home living room with sound and design. The attractive self-assembly set convinces by the extraordinary open-bagle principle. In its configuration, the kit is the result of the extensive, practical experience of our MONACOR acoustic developers.
The optimally pre-fabricated self-assembly kit contains all necessary components as well as assembly instructions. All you need was a soldering iron, a screwdriver and a side cutter to put the components together.

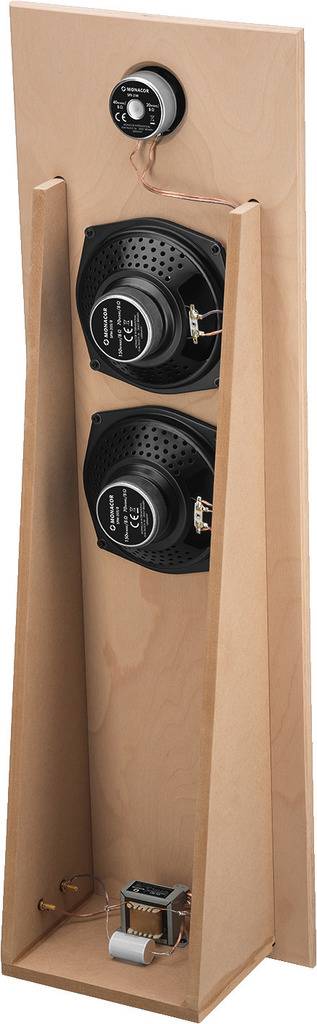

Due to the open-back design, a realistic and convincing spatial sound is achieved. The size of the baffle as well as the selection of the chassis are optimally adapted to the application area. The wood used is untreated and can be painted individually. The consciousness of creating such a great sound experience with your own hands - priceless!
This text is machine translated.
With the speaker KATANA-M1 you can impress in your home living room with sound and design. The attractive self-assembly set convinces by the extraordinary open-bagle principle. In its configuration, the kit is the result of the extensive, practical experience of our MONACOR acoustic developers.
The optimally pre-fabricated self-assembly kit contains all necessary components as well as assembly instructions. All you need was a soldering iron, a screwdriver and a side cutter to put the components together.
Due to the open-back design, a realistic and convincing spatial sound is achieved. The size of the baffle as well as the selection of the chassis are optimally adapted to the application area. The wood used is untreated and can be painted individually. The consciousness of creating such a great sound experience with your own hands - priceless!
This text is machine translated.
Scope of delivery

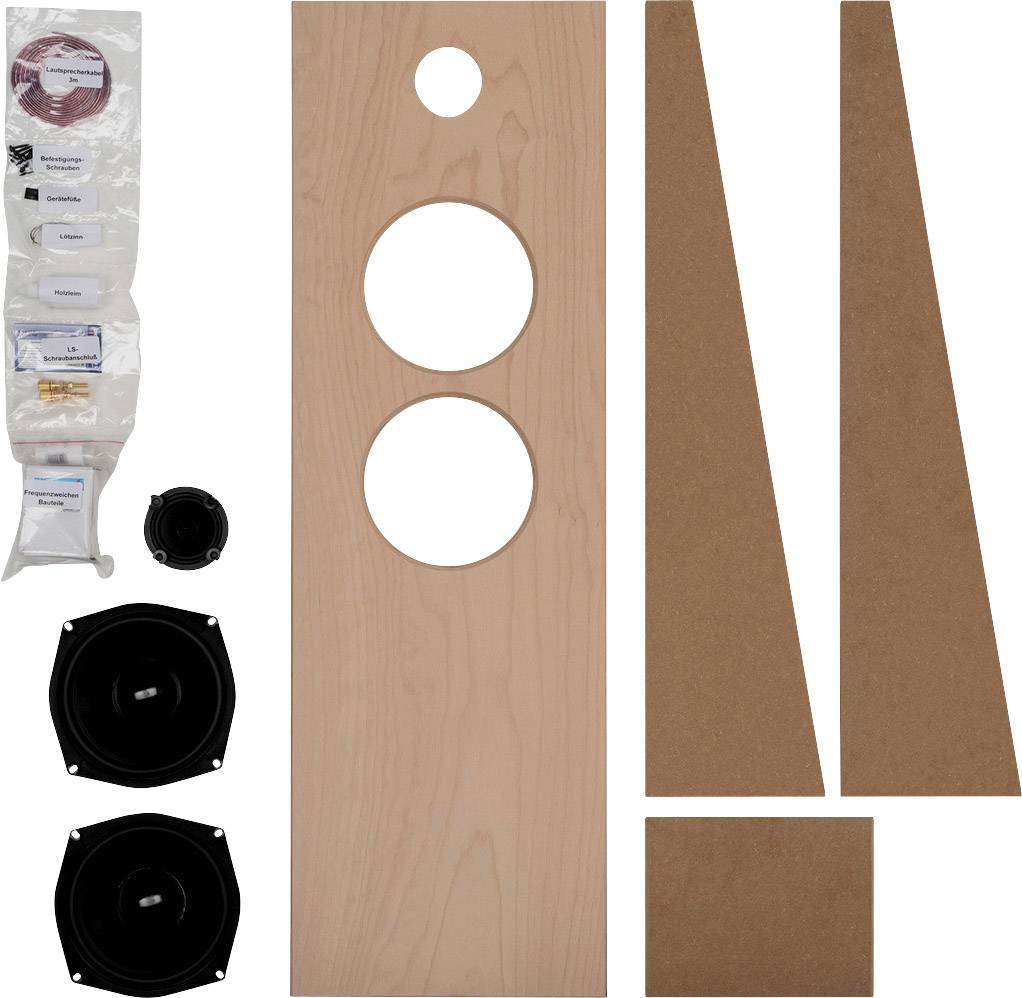

- The delivery scope of the kit KATANA-M1:
- 1 x baffle (beech, 20 mm multiplex)
- 1 x base
- 2 x side part

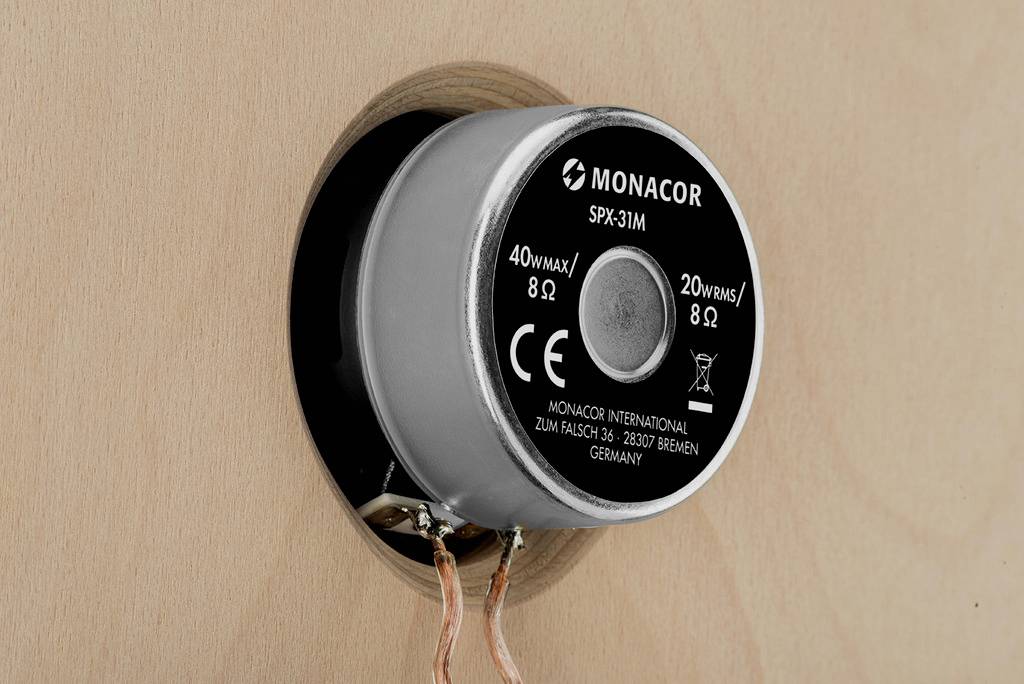

- 1 x Hi-Fi broadband speaker SPX-31M, 20 W, 8 Ω
- 1 x pair of LS pole terminals BP-500G

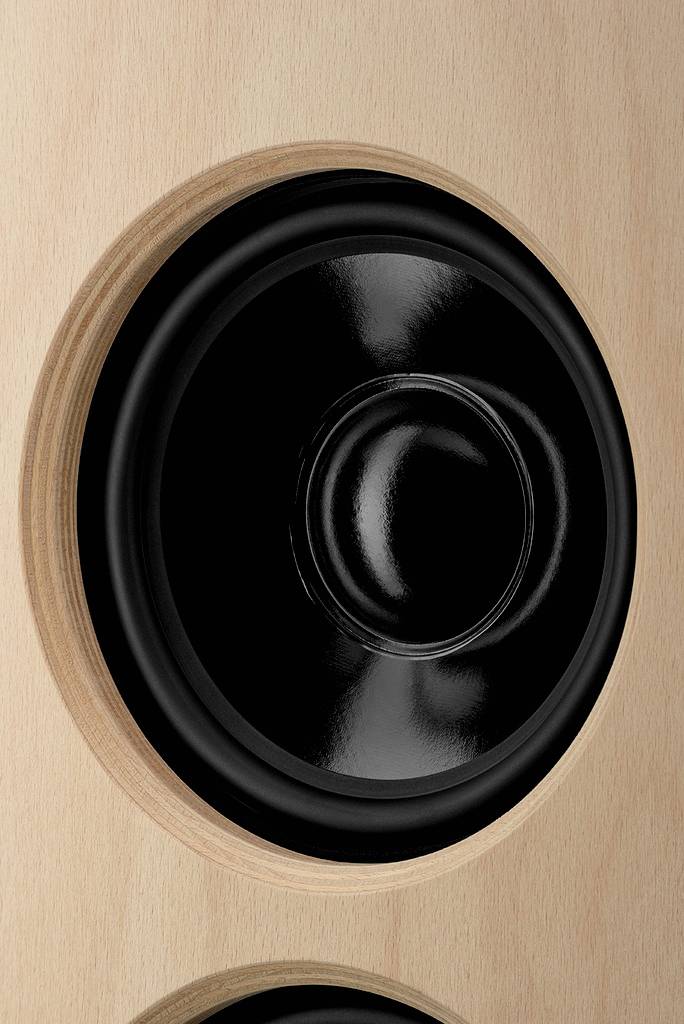

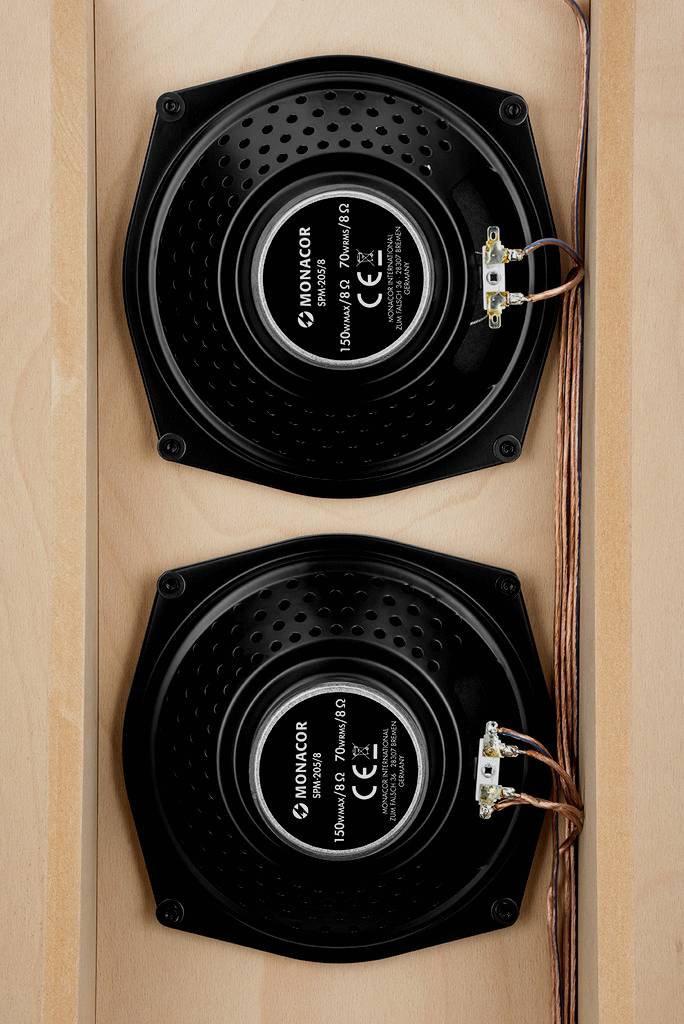

- 2 x Hi-Fi mid-range speaker SPM-205/8, 70 W, 8 Ω

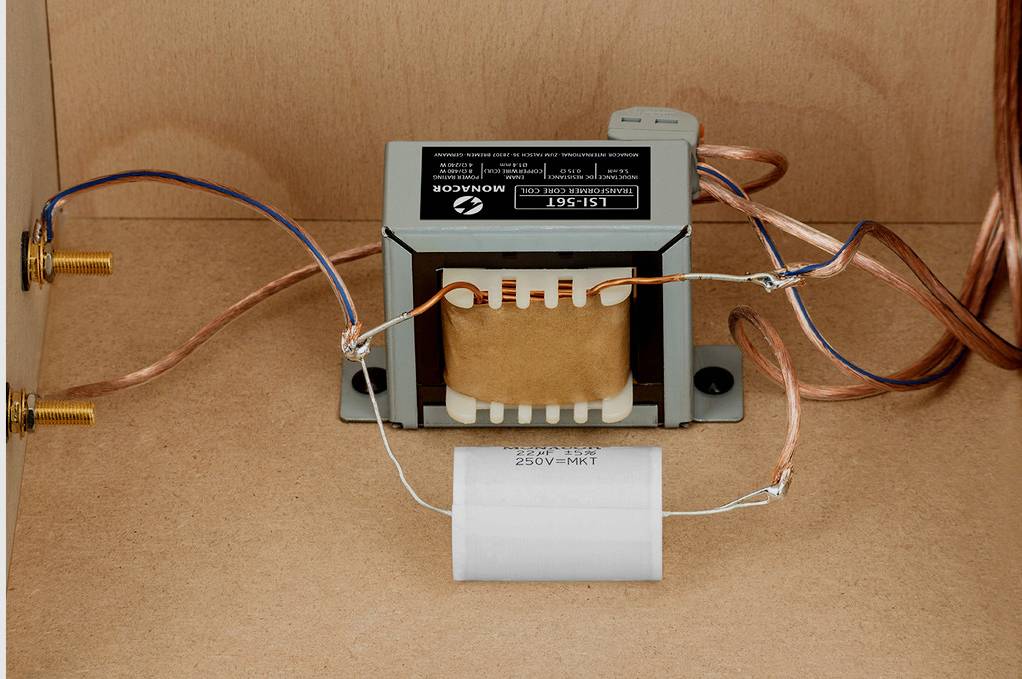

- 1 x MKT foil capacitor MKTA-220, 22 µF, 250 V.
- 1 x LSI-56T transformer core coil, 5.6 mH
- 3 meter speaker cable SPC-115CA
- 4 rubber feet (from HF-10 kit)
- Wood glue, solder, fixing screws, installation instructions
