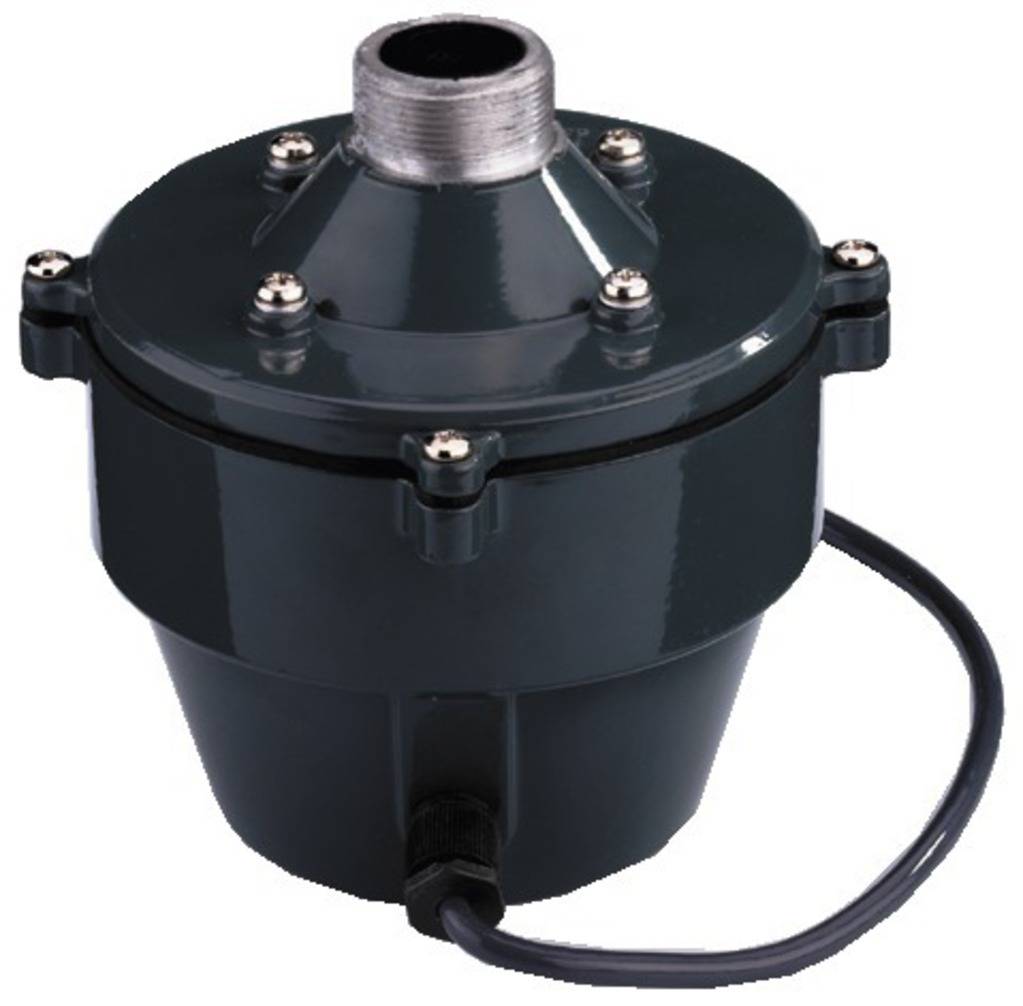

Monacor KU-616T Compression drive 40 W Dark grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load-carrying capacity: 60WMAX 40/30/20/10/5 WRMS
- Frequency range: 160-6500 Hz
- Avg. Sound pressure (1W/m): 112dB
- Beam angle (hor. vert.): -
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions: diameter. 150 mm x 136 mm
- Weight: 2.3 kg
- Special feature: IP66
- Replacement voice coil: KU-616 T/VC
- Product type
Compression drive
- RMS capacity
40 W
- Max. load
40 W
- SPL
112 dB
- Features
weatherproof
sprayproof
IP66
- Frequency range
160 - 6500 Hz
- Operating voltage
100 V
- Factory colour
Dark grey
- Width
150 mm
- Height
136 mm
- Length
13.6 cm
- (Ø)
15 cm
- Weight
2.3 kg
- Dim
(Ø x H) 15 cm x 136 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331848 Monacor KU-616T Compression drive 40 W Dark grey 1 pc(s)
Description
Features
- Weather-proof pressure chamber driver unit
- 100-V transformer technology
- Protected against strong water-jet
- Power changeover switch
- 3.5-cm-flange thread (1 3/8")
- 55 cm connection cable
