Monacor LA-40 PA loop amplifier
EAN:
Part number:
Item no:
Highlights & Details

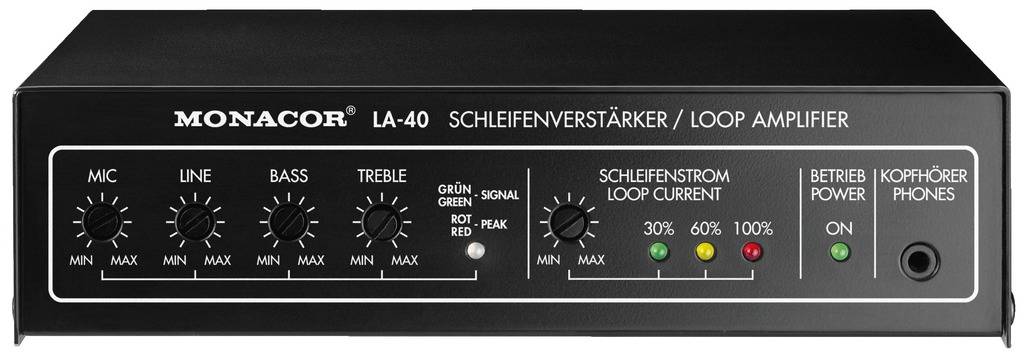

Monacor LA-40 Loop Amplifier
- Active Loop Amplifier with dynamic compressor to the special structure of an inductive Hora location in the living area.
- This text is machine translated.
Technical specifications
- Loop current: 2.8 AS
- Loop resistance: 0,4-2 Ohm
- Room Size: up to 40 m2
- Mic/Line: Mic: 2 mV/660 Ohm (phantom voltage 7.2 V) 6.3-mm jack Line: 48 mV/11 kOhm, 2 x rca alarm: 2 terminal sockets for connection of a switch
- Loop: connecting the included loop over 2 terminal jack headphone:> = 32 Ohm, 3.5-mm jack
- Depth: +/-8 dB, 100 Hz
- High: +/-10 dB, 10 kHz
- Frequency range: 75-7500 Hz, +/-3dB
- 0.44 % distortion factor
- Permissible operating temperature: 0-40°C
- Power supply: via suppl. Power supply
- Product type
PA loop amplifier
- Dim
(L x W x H) 4.5 x 17.5 x 10.2 cm
- Weight
510 g
- Width
17.5 cm
- Height
10.2 cm
- Length
4.5 cm
- Interfaces
Mic 6.35 mm in
3.5 mm jack in
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331853 Monacor LA-40 PA loop amplifier
User & Safety Instructions 1331853 Monacor LA-40 PA loop amplifier
Description
Features
- The Loop Amplifier LA-40 transmits the audio signals from the tv, audio system and/or microphone in the induction loop in the floor, wall or ceiling area
- This builds up inside the loop a magnetic field via the telephone coil of the hearing aid or the reception device is recorded and back to an audio signal is converted
- An advantage of inductive Hora layers is the wireless transmission
- The user can move freely inside the loop and the volume on his hearing aid or reception device (LR-200) individually, without his flatmates
- The LA-40 can be directly connected to the SCART socket of a tv (via the supplied SCART adapter) or to an audio system can be connected
- Calls from roommates can be heard via the connection of an optional microphone
- The built-in signal generator of the LA-40 allows to generate an alarm signal via an optional switch
- Supplied with 35m loop wire for setting up an induction loop, SCART adapter, power supply
- Built-in alarm signal can be activated
- Dynamic compressor
- Input sensitivity for line and microphone can be adjusted
- 2-way tone control
- Loop current adjustable
- LEDs for Power, Signal/PEAK and loop current
- Headphones connection on the front side
- Built-in phantom supply for electret microphones
- Recommended Microphone: ECM-300LA
Scope of delivery
- 35 m grinding wire
- SCART adapters
- Power supply unit
