Monacor Lectern 0179120 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 29 kg
- Frequency range 70-20000 Hz
- Dimensions 525 x 1120 x 440 mm
- Ass. Operating temperature 0-40 °C
- Weight: 30 kg
- Inputs: 2 mV (Mic 1),13 mV (Line),20 mV (Mic 2-3),100 mV (Aux)
- Power supply: Battery 2x12 V/7 Ah, DC 12 V/1.5 A attached Charger
- Nominal power (PRMS) 80 W
- Total output power: 120 W.
- Carrier frequency 863.1 - 864.9 MHz
- Range ≈ 25 m
- Max. Sound pressure 114 dB

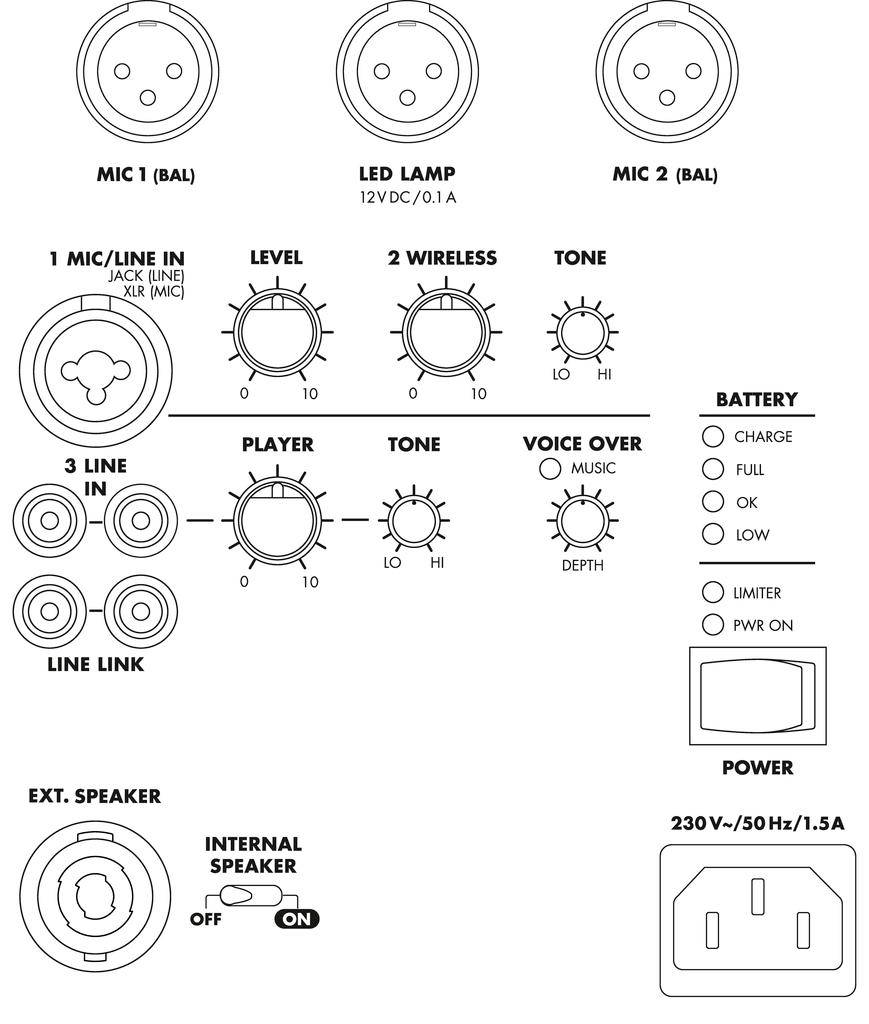

- Connections: 1 x XLR (mic 1) 1 x 6.3-mm jack (line) ,2 x XLR (mic 2-3) ,1 x RCA L/R (aux),1 x RCA L/R (line out),1 x Neutrik-(ext. Loudspeakers)
- Content
1 pc(s)
- Height
1120 mm
- Length
252 mm
- Product type
Lectern
- Width
440 mm
- Frequency range
70-20000 Hz
Documents & Downloads
Datasheet
Datasheet 3340941 Monacor Lectern 0179120 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340941 Monacor Lectern 0179120 1 pc(s)
Description

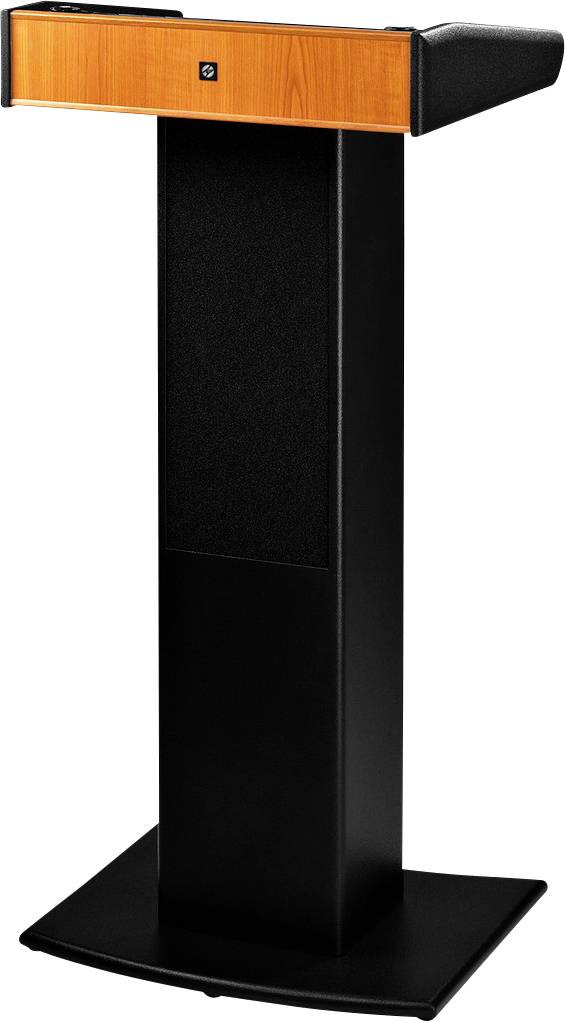

Professional lectern with integrated 2-channel multi-frequency receiver unit in UHF-PLL-technology and Class-D amplifier

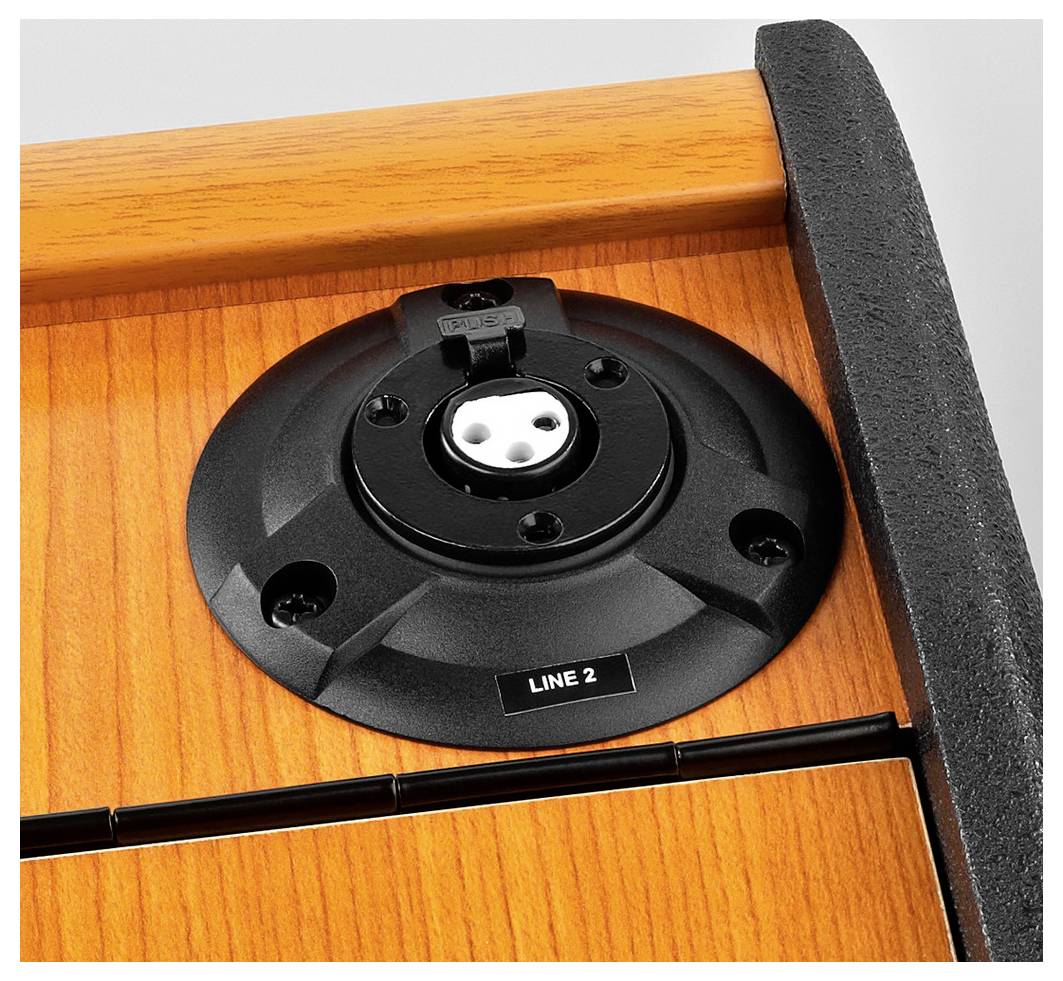

Built-in Class D mixing amplifier and speaker box, 80 W operation via built-in lead-gel rechargeable batteries 2 x 12 V/7 Ah (up to 16 hours operating time) Integrated battery charging function, charger is supplied with 2 x 16 adjustable UHF frequencies (863.1-864.9 MHz) 1 Input via combi-socket Mic (XLR)/Line (6.3-mm-jack) 1 Stereo-Aux input via cinch-sockets All inputs with gain controller 2 shock-absorbing XLR-sockets on the desk attachment for 2 optional gooseneck microphones (each occupy a microphone input) or a microphone and an optional LED-gooseneck lamp 12-V-Phantom power 1 Stereo-Line output via cinch-sockets Neutrik-audio-plug connection (8 Ω) for external loudspeaker 2-way loudspeaker system High-quality wooden casing with replaceable floor plates in black desk attachment with foldable document compartment The delivery consists of 2 boxes
Supplied without gooseneck microphone and without swan-neck lamp. Suitable EMG-650P microphone and compatible GNL-453XLR LED gooseneck lamp are available as an option.
Suitable microphone or pocket transmitters such as TXA-800HSE or TXA-800HT are available optionally.
No registration or charges required in the EU.
This text is machine translated.
Built-in Class D mixing amplifier and speaker box, 80 W operation via built-in lead-gel rechargeable batteries 2 x 12 V/7 Ah (up to 16 hours operating time) Integrated battery charging function, charger is supplied with 2 x 16 adjustable UHF frequencies (863.1-864.9 MHz) 1 Input via combi-socket Mic (XLR)/Line (6.3-mm-jack) 1 Stereo-Aux input via cinch-sockets All inputs with gain controller 2 shock-absorbing XLR-sockets on the desk attachment for 2 optional gooseneck microphones (each occupy a microphone input) or a microphone and an optional LED-gooseneck lamp 12-V-Phantom power 1 Stereo-Line output via cinch-sockets Neutrik-audio-plug connection (8 Ω) for external loudspeaker 2-way loudspeaker system High-quality wooden casing with replaceable floor plates in black desk attachment with foldable document compartment The delivery consists of 2 boxes
Supplied without gooseneck microphone and without swan-neck lamp. Suitable EMG-650P microphone and compatible GNL-453XLR LED gooseneck lamp are available as an option.
Suitable microphone or pocket transmitters such as TXA-800HSE or TXA-800HT are available optionally.
No registration or charges required in the EU.
This text is machine translated.
Features
- POWER RATING (PRMS): 80 W.
- Output power
- Total: 120 W
- Frequency range 70-20000 Hz
- Carrier frequency 863.1 - 864.9 MHz
- Range ≈ 25 m
- Inputs: 2 mV (Mic 1),;13 mV (Line),;20 mV (Mic 2-3),;100 mV (Aux)
- Max. Sound pressure 114 dB
- Power supply: Battery 2x12 V/7 Ah,; DC 12 V/1.5 A via; enclosed Charger
- Ass. Operating temperature 0-40 °C
- Dimensions 525 x 1120 x 440 mm
- Weight: 30 kg
- Connections: 1 x XLR (Mic 1);1 x 6.3 mm jack (Line),;2 x XLR (Mic 2-3),;1 x RCA L/R (Aux),;1 x RCA L/R (Line Out),;1 x Neutrik (ext. Speakers);
