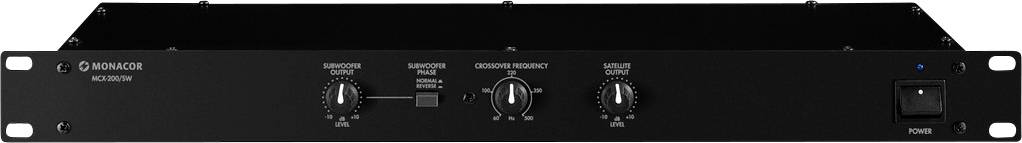

Monacor MCX-200/SW 2-channel 19" crossover
EAN:
Part number:
Item no:
Technical specifications
- Frequency range: 10-3 0000 Hz, -0.5dB
- Cut-off frequency: 60-500 Hz, 12dB/oct.
- High-pass filter: 15 Hz, 12dB/oct.
- Harmonic distortion:
- 80 dB
- Power supply 230 VWechsel/50Hz/5VA
- Permissible operating temperature: 0-40°C
- Dimensions: 482 x 44.5 x 185 mm, 1 HE
- Weight: 2 kg.
- Product type
19" crossover
- No. of channels
2-channel
- Interfaces
6.3 mm jack in
6.3 mm jack out
- Width
48.2 cm
- Depth
18.5 cm
- Height
4.45 cm
- Dim
(W x H x D) 48.2 x 4.45 x 18.5 cm
- Weight
2 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332014 Monacor MCX-200/SW 2-channel 19" crossover
User & Safety Instructions 1332014 Monacor MCX-200/SW 2-channel 19" crossover
Conformity certificate
Conformity certificate 1332014 Monacor MCX-200/SW 2-channel 19" crossover
Description
Features
- Electronic stereo crossover filter
- Subwoofer/satellite operation
- Additional mono subwoofer output
- Output level for each frequency range individually adjustable
- Phase position for subwoofer output can be switched
- Regulatable cross-over frequency
- Ground-Lift switch
- All connections via 6.3-mm jack plug, unbalanced.
- This text is machine translated.
