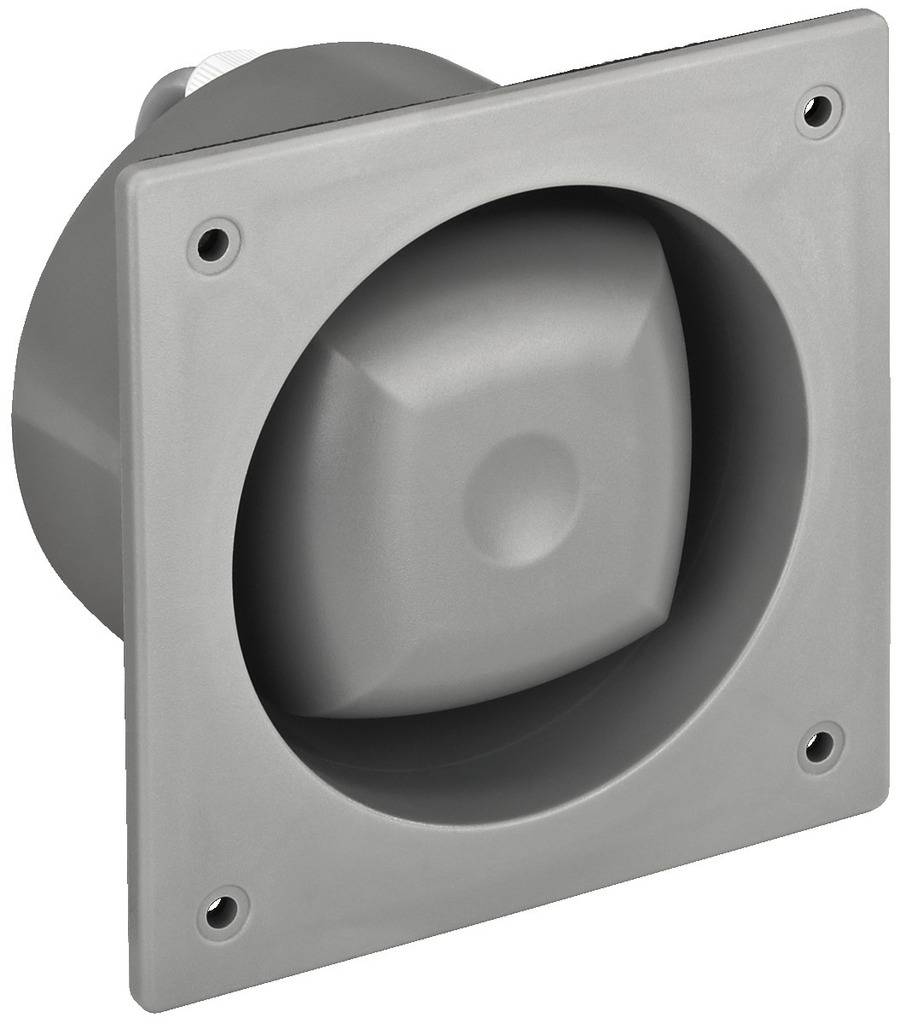

Monacor NR-10M PA compression drive speaker 20 W 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load-carrying capacity: 20WMAX/4 Ohm
- Frequency range: 200-15000 Hz
- Avg. Sound pressure (1W/m): 98 dB
- Beam angle (hor. vert.): 100°/100°
- Permissible operating temperature: 0-40°C
- Dimensions: 120 x 120 x 120 mm
- Weight: 0.45 kg
- Special feature: IP54, ABS
- Replacement voice coil: -
- Product type
PA compression drive speaker
- Max. load
20 W
- Max. sound pressure
98 dB
IP54
- Frequency range
200-15000 Hz
- Material
Acrylonitrile butadiene styrene
- Width
12 cm
- Height
12 cm
- Length
12 cm
- Weight
450 g
- Dim
(L x W x H) 12 x 12 x 12 cm
- Features
weatherproof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332259 Monacor NR-10M PA compression drive speaker 20 W 1 pc(s)
Description
Features
- Built-in horn speaker (music horn) with broadband loudspeaker
- 4 ohm
- For ceiling and wall mounting
- Weather-proof and IP54-certified after installation
- 4-Ohm-Lautsprechersystem
- 5-cm wide-band speaker with horn attachment (2.5")
- Can be used universally in indoor and outdoor areas, wherever high acoustic pressure and good sound is required
- ABS-plastic housing
- Mounting flange with foam rubber seal
- Connection via terminal strip
- This text is machine translated.
Hints
Mounting flange with foam rubber seal
