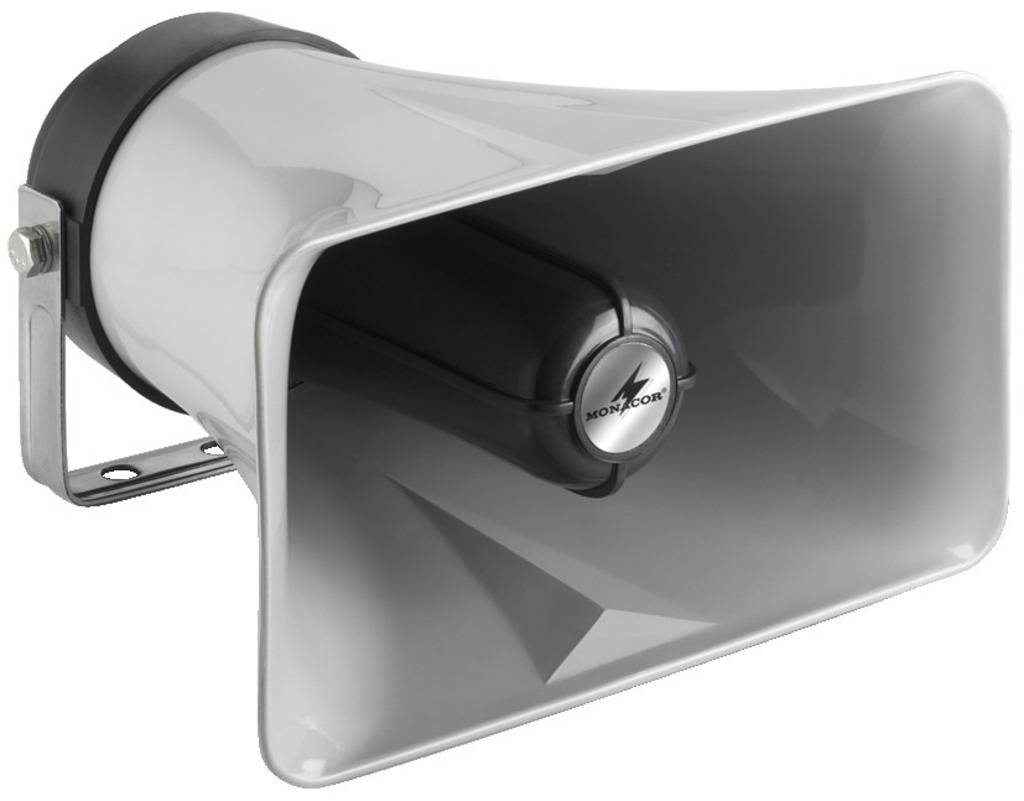

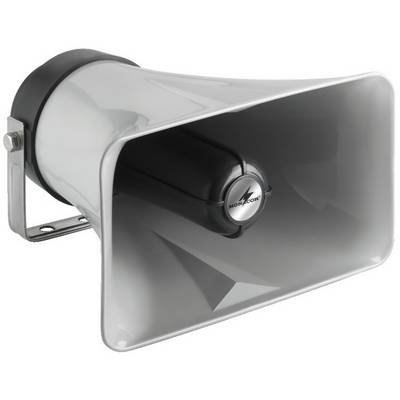

Monacor NR-33KS PA compression drive speaker 23 W 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load-carrying capacity: 23 WMAX/8 Ohm
- Frequency range: 275-7000 Hz
- Avg. Sound pressure (1W/m): 106 dB
- Beam angle (hor. vert.): 100°/50°
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions 250 x 145 x 272 mm
- Weight: 1.5 kg
- Special feature: IP66, plastic
- Replacement voice coil: IT-230/VC
- Product type
PA compression drive speaker
- Max. load
23 W
- Max. sound pressure
106 dB
IP66
- Frequency range
275-7000 Hz
- Material
Plastic
- Width
25 cm
- Height
14.5 cm
- Length
27.2 cm
- Weight
1.5 kg
- Dim
(L x W x H) 27.2 x 25 x 14.5 cm
- Features
weatherproof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332268 Monacor NR-33KS PA compression drive speaker 23 W 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker
- IP66-certified, protected against strong water-jet
- 8-Ohm-Lautsprechersystem
- Can be used universally for indoor and outdoor use
- Robust plastic housing
- Stainless steel mounting bracket and screws
- This text is machine translated.
