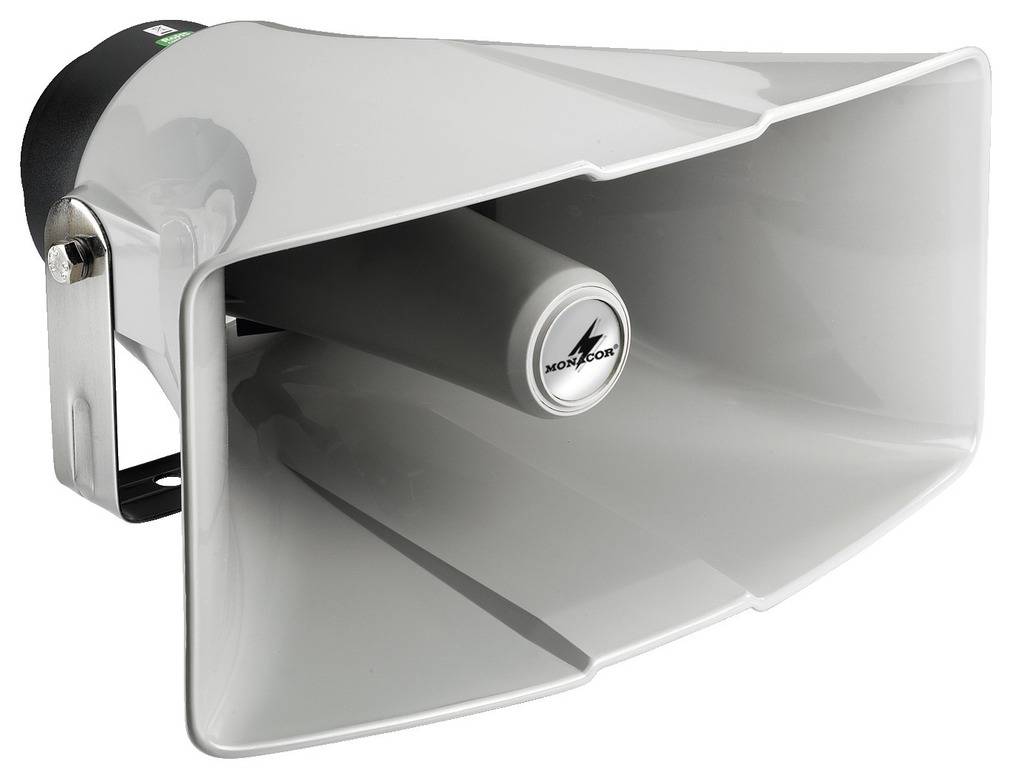

Monacor NR-40KS PA compression drive speaker 60 W Light grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load-carrying capacity: 60 WMAX/16 Ohm
- Frequency range: 180-7000 Hz
- Avg. Sound pressure (1W/m): 113 dB
- Beam angle (hor. vert.): 110°/45°
- Permissible operating temperature: -20 °C to +50 °C
- Dimensions: 400 x 200 x 385 mm
- Weight: 3.3 kg
- Special feature: IP66, plastic
- Replacement voice coil: IT-40/VC
- Product type
PA compression drive speaker
- RMS capacity
30 W
- Max. load
60 W
- Max. sound pressure
113 dB
IP66
- Frequency range
180-7000 Hz
- Factory colour
Light grey
- Material
Plastic
- Width
40 mm
- Height
20 mm
- Length
38.5 mm
- Weight
3.3 kg
- Dim
(L x W x H) 38.5 x 40 x 20 mm
- Features
weatherproof
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1332270 Monacor NR-40KS PA compression drive speaker 60 W Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1332270 Monacor NR-40KS PA compression drive speaker 60 W Light grey 1 pc(s)
Conformity certificate
Conformity certificate 1332270 Monacor NR-40KS PA compression drive speaker 60 W Light grey 1 pc(s)
Description
Features
- Weather-proof Pressure chamber speaker
- 16-Ohm-Lautsprechersystem
- IP66-certified, protected against strong water-jet
- Can be used universally for indoor and outdoor use
- Robust plastic housing
- Stainless steel mounting bracket and screws
- This text is machine translated.
