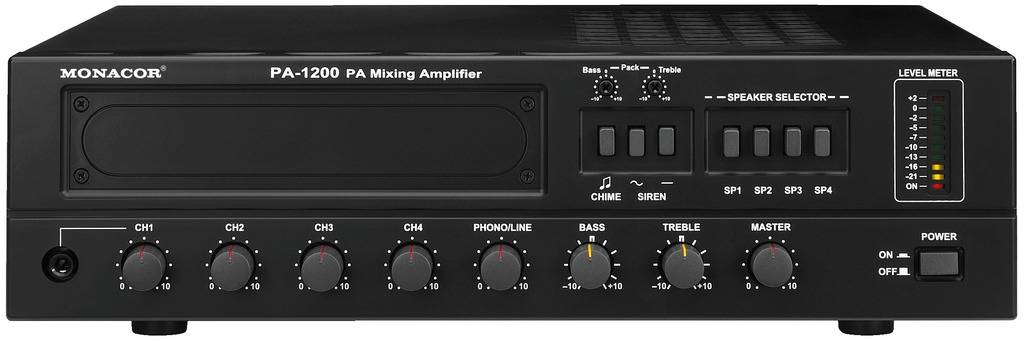

Monacor PA-1200 PA amplifier 120 W 3-channel 4-zone
EAN:
Part number:
Item no:
Monacor PA-1200 ELA-AMPLIFIER
Technical specifications
- Output power: 120WRMS
- : 170WMAX
- Mic: 1.5 mV/600 Ohm
- Line: 150 mV/47 kOhm
- Phono: 1 mV/47 kOhm (RIAA)
- Speakers: 1 x 4 Ohm, 1 x 8 Ohm,
- 4 x 70/100V
- Pre-amplifier: 1 V/1 kOhm
- Frequency range:80-1 5000 Hz
- Depth: +/-10 dB/100 Hz
- High: +/-10 dB/10 kHz
- Mic:> 60 dB
- Line:> 70 dB
- Distortion factor:< 1%
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/280 VA,
- : 24V DC current /11A
- Dimensions: 420 x 122 x 350 mm
- Weight: 13 kg
- Inputs: Mic: 1 x 6.3 mm jack
- Mic/Line: 3 x XLR, bal.
- Line: 1 x RCA L+R
- Phono/Line: 1 x RCA L+R
- Telephone Input: 1 x terminal double connector
- Tuner: 1 x terminal double connector
- Bell button: 1 x terminal double connector
- 1 xVorverstarker: 1 x 6.3 mm jack
- Speakers: 7x screw connection
- Power supply:
- 230 V: 1 x IEC socket.
- 24 V DC current: screw terminals
- Product type
PA amplifier
- RMS power
120 W
- No. of zones
4-zone
- Dim
(W x H) 42 cm x 12.2 cm
- Weight
13 kg
- No. of channels
3-channel
- Output type (PA amplifier)
70 V
100 V
- Width
42 cm
- Height
12.2 cm
- Interfaces
Mic 6.35 mm in
Mic XLR in
Line in
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332288 Monacor PA-1200 PA amplifier 120 W 3-channel 4-zone
User & Safety Instructions 1332288 Monacor PA-1200 PA amplifier 120 W 3-channel 4-zone
Description
Features
- 4-Zone-ELA mono mixing amplifier
- Noiseless operation through fan-less cooling concept
- Gong, continuous and loud howl has many, Auto Mute, gong also via external switch remotely triggered, 2-tone or 4-Ton-Gong adjustable
- Bass, Treble, as well as master controller, level display via LEDs
- 15-V-phantom power for channels 2 and 3
- Slots for different functions are available optionally
- 482-mm-Rack Installation (19") with optionally available mounting frame PA-1200 RM
- Power and 24V emergency power operation
