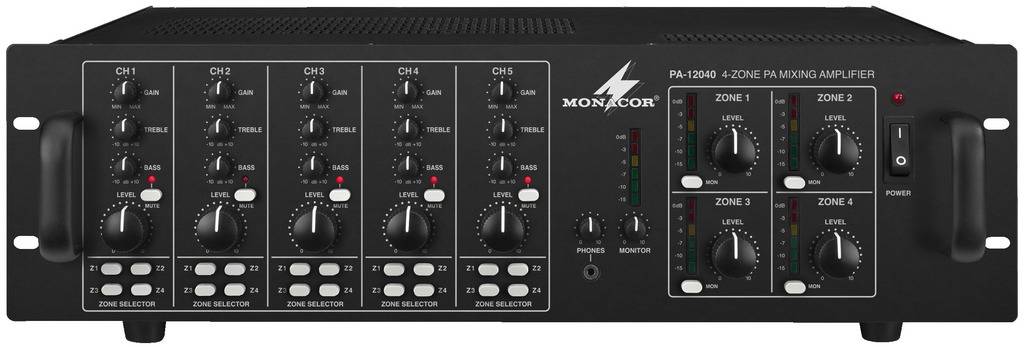

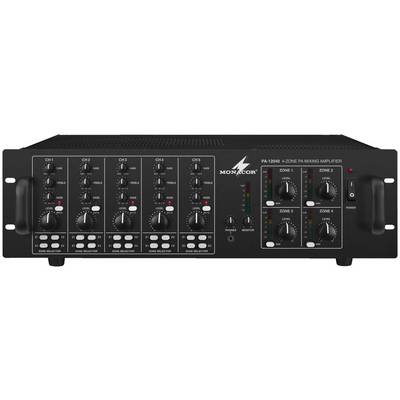

Monacor PA-12040 PA amplifier 120 W 4-channel 4-zone
EAN:
Part number:
Item no:
Monacor PA -12040 ELA-AMPLIFIER
Highlights & Details
- 4-channel mono mixing amplifier with professional features for universal multi-room" - sound reinforcement applications
- This text is machine translated.
Technical specifications
- Output power: 4 x 120WRMS 4 x 170WMAX
- Mic/Line: 5 mV/4 kOhm, 100 mV/10 kOhm
- Line: 100mV/30 kOhm
- Phone Paging: 40 mV/5 kOhm
- Speakers: 4 Ohm/8 Ohm
- Monitor speakers: 8 Ohm/1W
- Line (zone): 1.7 V, sym.
- Line (Mix): 3.95 V
- Frequency range:50-1 7000 Hz
- Depth: +/-10 dB/100 Hz
- High: +/-10 dB/10 kHz
- Signal-to-noise ratio, Mic:> 65 dB
- Signal-to-noise ratio, line:> 75 dB
- Distortion factor:< 1%
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/1200VA
- Mic/Line: 3 x jack/XLR combo jack, bal.
- Line: 2 x RCA L/R
- Paging: screw terminal
- Priority: screw terminal
- Line (zone): screw terminal
- Line (Mix): screw terminal
- Headphone: 3.5-mm stereo jack socket
- Speaker (Monitor): screw terminal
- Speaker (zone): screw terminal
- Power supply: IEC socket.
- Product type
PA amplifier
- RMS power
120 W
- No. of zones
4-zone
- Dim
(L x W x H) 41 x 48.2 x 13.3 cm
- Weight
20.5 kg
- No. of channels
4-channel
- Output type (PA amplifier)
70 V
100 V
- Width
48.2 cm
- Height
13.3 cm
- Length
41 cm
- Interfaces
Mic input combo jack (XLR, 6.35 mm jack)
Line in
3.5 mm headphone out
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332294 Monacor PA-12040 PA amplifier 120 W 4-channel 4-zone
User & Safety Instructions 1332294 Monacor PA-12040 PA amplifier 120 W 4-channel 4-zone
Description
Features
- 4 x 120WRMS, 100-V and 4/8-Ohm-Betrieb
- Optimal utilization of the power limit and reliable protection for the connected loudspeakers through integrated limiter
- 3 inputs microphone/line via combi-sockets
- 2 inputs LINE stereo via phono sockets
- Input channels with gain setting, 2-way tone control, Channel mute switch and zones routing switch
- Microphone inputs with individually switchable +46 V phantom power
- Priority function for channels 1-3, switchable
- Independent paging input, on all zones can be routed
- 4 zone outputs, individually adjustable
- Zones and monitor line outputs for additional amplifier or recording devices
- Connection for monitor loudspeakers
- Level control of zones and monitor-VU meter
- Adjustable headphone output
- Fan cooled
