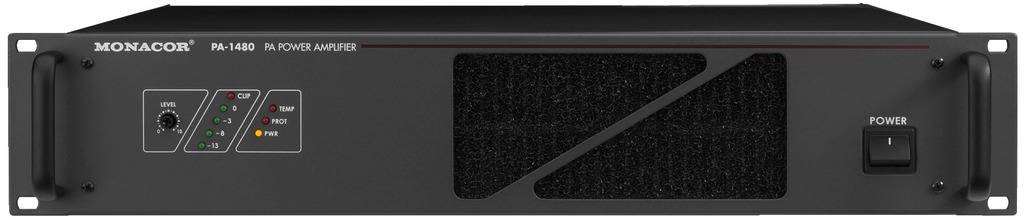

Monacor PA-1480 PA amplifier 480 W 1-channel
EAN:
Part number:
Item no:
Monacor PA-1480 ELA-AMPLIFIER
Technical specifications
- Input sensitivity: 1.2 V, symmetric
- Output impedance: 62 V/8 Ohm, 70 V/10 Ohm, 100 V/21 Ohm
- Frequency range 35-20000 Hz, -3 dB
- Signal/noise ratio:> 100 dB, A"-evaluated
- Distortion factor:< 1%
- High-pass filter 400 Hz, 6 dB/oct.
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/1400 VA, 24 V DC/40A
- 2 HE
- Signal input: XLR/screw terminals
- Speaker output: screw terminals
- Product type
PA amplifier
- RMS power
480 W
- Dim
(L x W x H) 37.4 x 48.3 x 8.8 cm
- Weight
17.5 kg
- No. of channels
1-channel
- Output type (PA amplifier)
100 V
- Width
48.3 cm
- Height
8.8 cm
- Length
37.4 cm
- Interfaces
XLR in
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332300 Monacor PA-1480 PA amplifier 480 W 1-channel
User & Safety Instructions 1332300 Monacor PA-1480 PA amplifier 480 W 1-channel
Description
Features
- ELA Mono power amplifier
- Switchable 400 Hz-Hochpassfilter 6dB/oct.
- Infinitely adjustable temperature controlled fan
- LED display for clip, protect, overheating and output level
- Loop (link)
- Mains or 24 V emergency power operation
- This text is machine translated.
