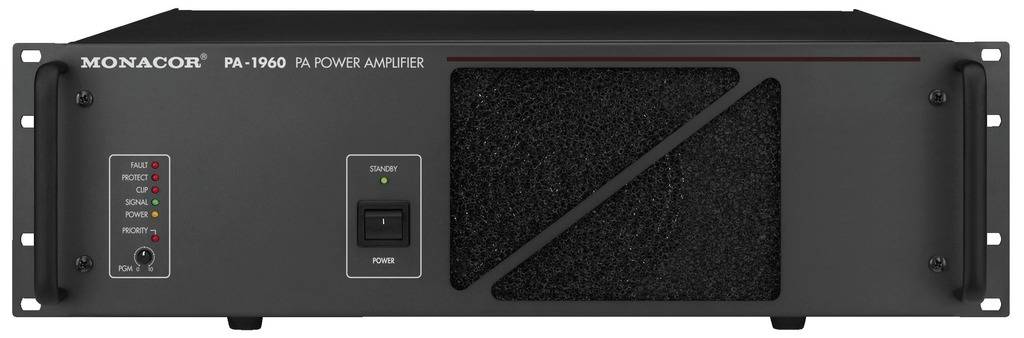

Monacor PA-1960 PA amplifier 960 W 1-channel
EAN:
Part number:
Item no:
Technical specifications
- Input sensitivity: 0.775V/60 kOhm, sym.
- Output impedance: 75 V/5.6 ohm, 85 V/7.2 ohm, 100 V/10 Ohm
- Frequency range 35-20000 Hz
- Signal/noise ratio:> 100 dB, A"-evaluated
- Distortion:< 0.4%
- High-pass filter 400 Hz, 6 dB/oct.
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/2600 VA, 24 V DC/80A
- Product type
PA amplifier
- RMS power
960 W
- Dim
(W x H) 48.3 cm x 13.3 cm
- Weight
25 kg
- No. of channels
1-channel
- Output type (PA amplifier)
100 V
- Width
48.3 cm
- Height
13.3 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332302 Monacor PA-1960 PA amplifier 960 W 1-channel
User & Safety Instructions 1332302 Monacor PA-1960 PA amplifier 960 W 1-channel
Description
Features
- ELA mono high power amplifier
- Additional, adjustable priority input with switchable priority function
- 100-V slave input for looping in of the amplifier into a 100-V speaker cable
- Switchable 400 Hz-Hochpassfilter 6dB/oct.
- 2 rear installation options for optional modules with the following functions:
- PA-6FD: error monitoring module
- PA-6 FM: fault detection module
- Connection for external on/off switch (remote start)
- Infinitely adjustable temperature controlled fan
- LED display for error, protect, clip, Signal, Priority
- Mains or 24 V emergency power operation
- This text is machine translated.
