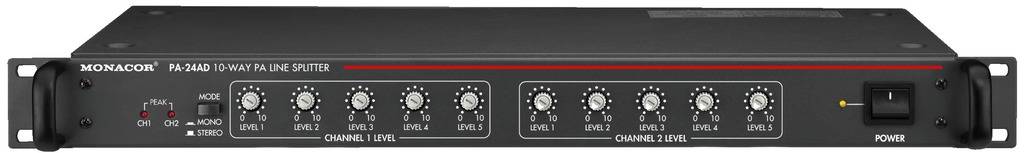

Monacor PA-24AD PA line splitter
EAN:
Part number:
Item no:
Technical specifications
- Line inputs, mono: 0.775V/15 kOhm
- Line outputs, mono: 0.775V/600 Ohm
- Frequency range 20-20000 Hz
- Harmonic distortion:
- 68 dB
- Power supply 230 VWechsel/50 Hz/10 VA 24 V DC/0.2 A
- Permissible operating temperature: 0-40°C
- Dimensions: 482 x 45 x 235 mm, 1 HE
- Weight: 3.1 kg
- Product type
PA line splitter
- Interfaces
XLR out
XLR in
- Frequency range
20 - 20.000 Hz
- Weight
3.1 kg
- Impedance
600 Ω
10 VA
- Width
48.2 mm
- Height
4.5 mm
- Depth
23.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332304 Monacor PA-24AD PA line splitter
Description
Features
- 10-Way ELA line splitter
- 2 separate inputs
- Stereo or Mono Mode
- Balanced XLR connectors for all inputs and outputs
- Gain control for all outputs
- Peak indicator for inputs
- Power and 24V emergency power operation
- This text is machine translated.
